Voltage Range 220-240V AC
Cut Out Dimensions Ø63 mm
Diameter 76 mm
IP Rating IP20
Voltage Range
220-240V AC
Cut Out Dimensions
Ø63 mm
Diameter
76 mm
IP Rating
IP20
Dimensions
67 mm x Ø76 mm
Height
67 mm
Fitting Material
PC
Brand
Lyco

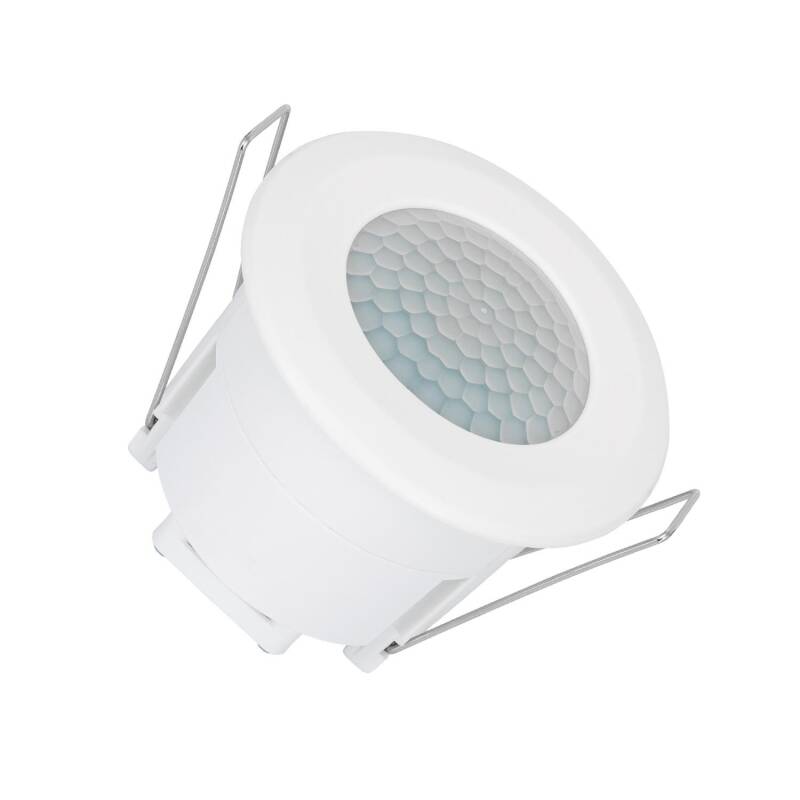

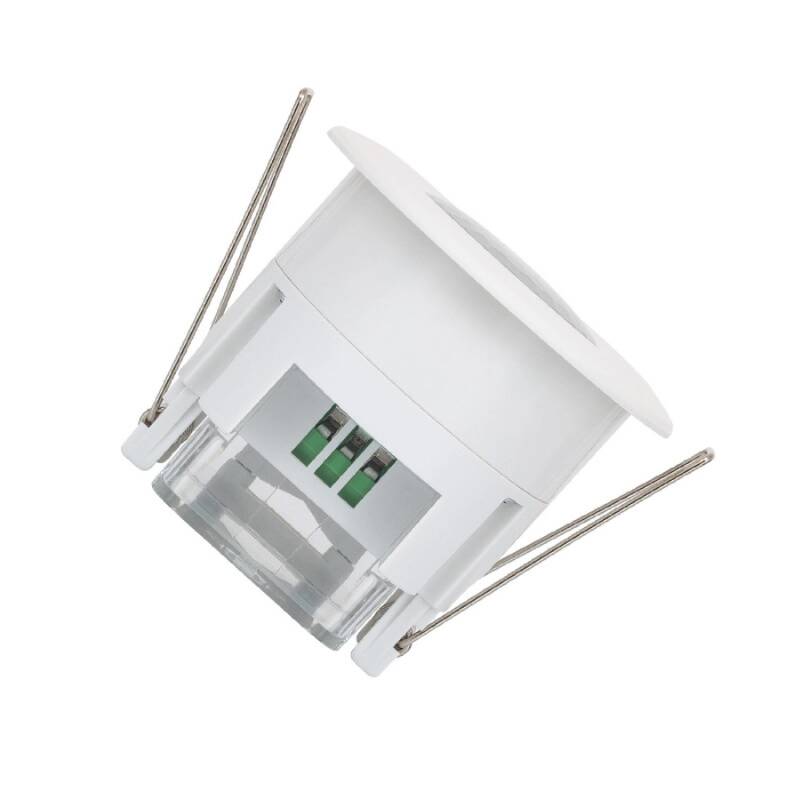

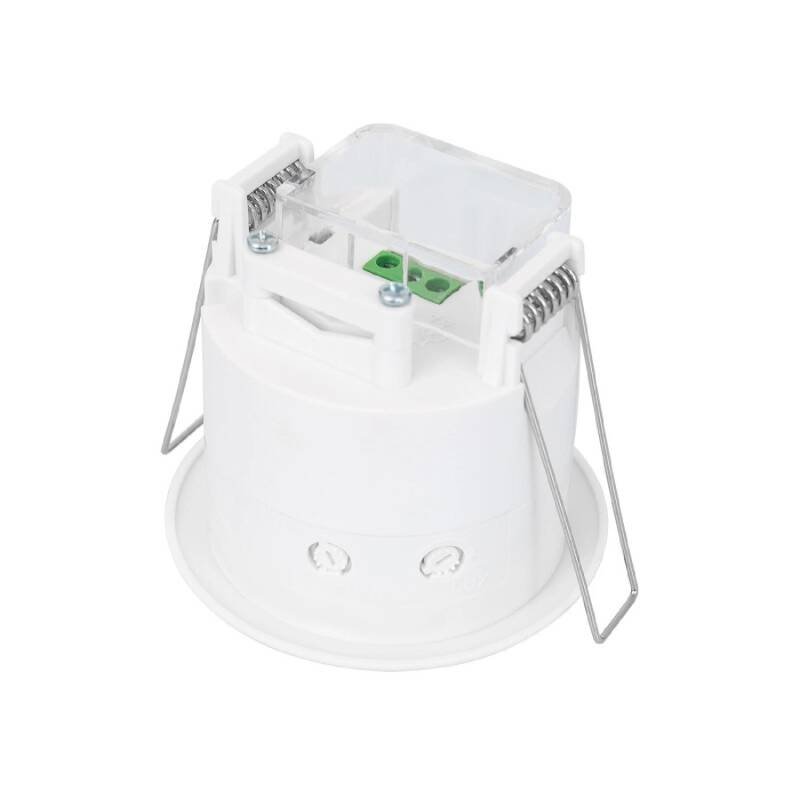

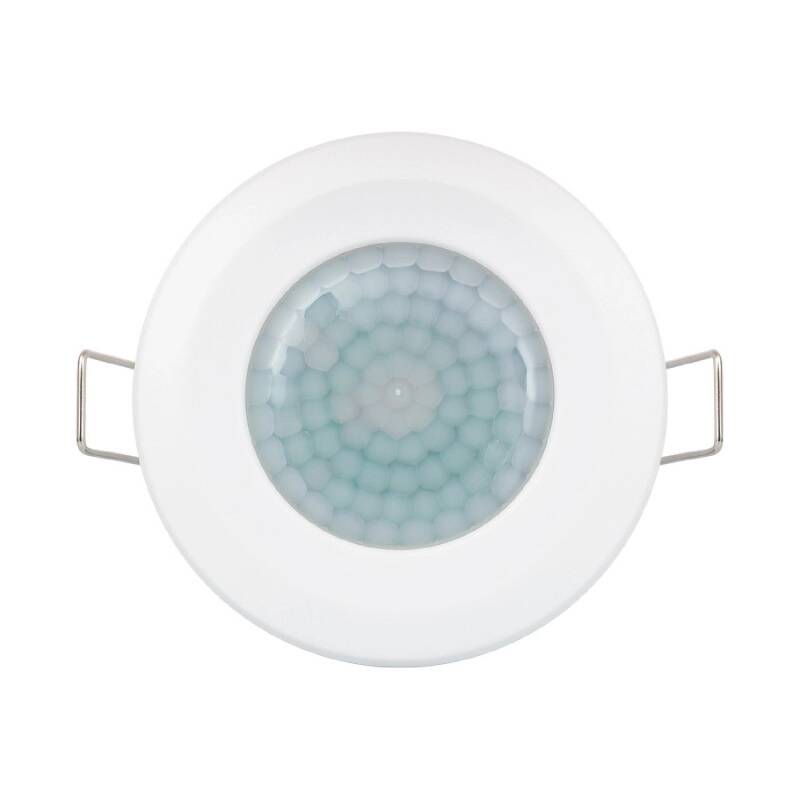

PIR Motion Sensor 360° Recessed
Ref. Lyco: E1233
VAT not included £7.91
£9.49
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

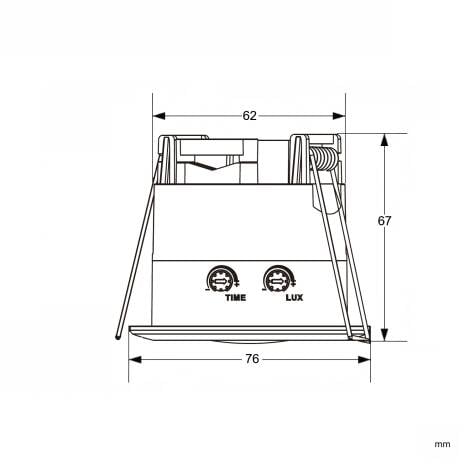

Dimensions
- Height67 mm
- Diameter76 mm
- Cut Out DimensionsØ63 mm
Downloads
PDF Datasheet 498 EN
IM_498
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This ceiling mounted PIR Motion Detector has a 360° coverage angle and a 6 metre detection radius when at a height of 2 to 4 metres. Capable of detecting infrared emissions from any heat source without emitting any radiation.
The detector activates its output circuit when a heat source moves in front of the sensor (at a rate of 0.6 to 1.5 m/s) and deactivates its output circuit when the heat is no longer detected and some time has passed.
Detection Angle: 360°
Detection Distance: 6 metres.
Minimum ON time: 10 seconds ±3 seconds.
Maximum ON time: 15 minutes ±2 minutes.
Installation Height: 2 to 4 metres.
Detection Speed: 0.6-1.5 m/s.
Charges: 300W LED and 1200W Incandescent.
