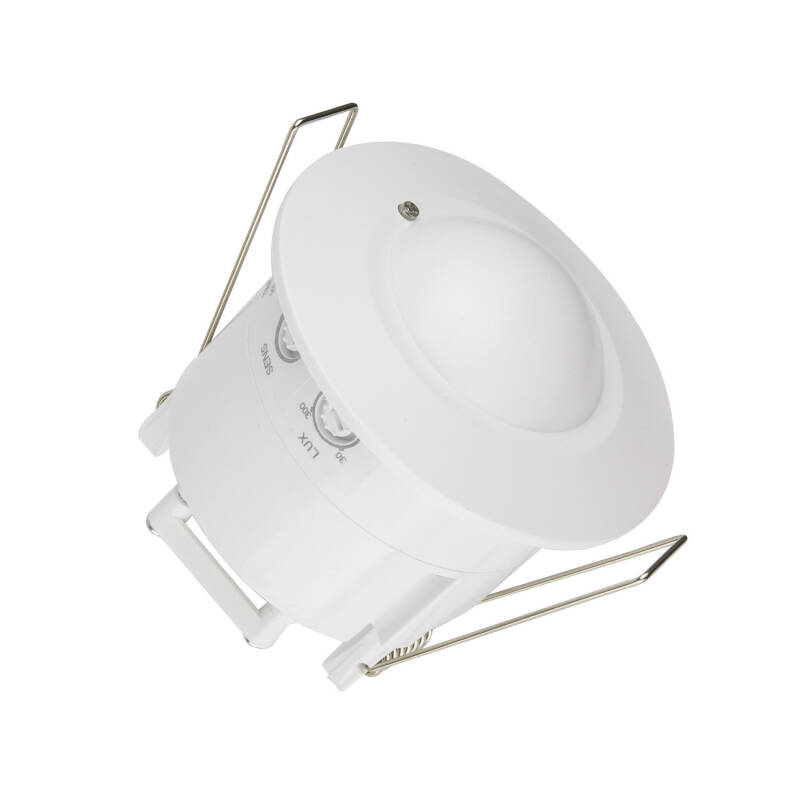

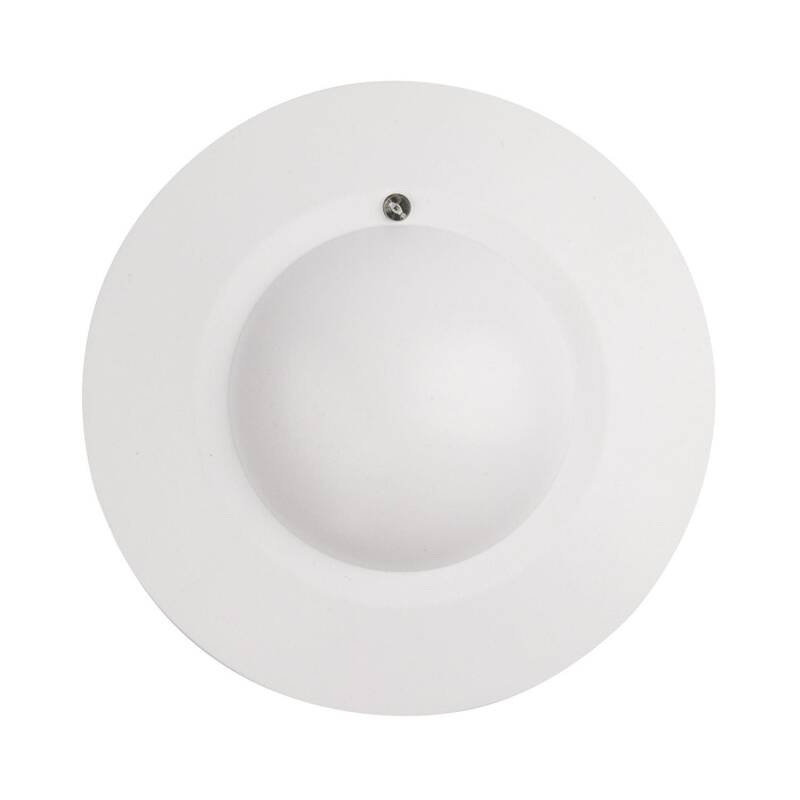

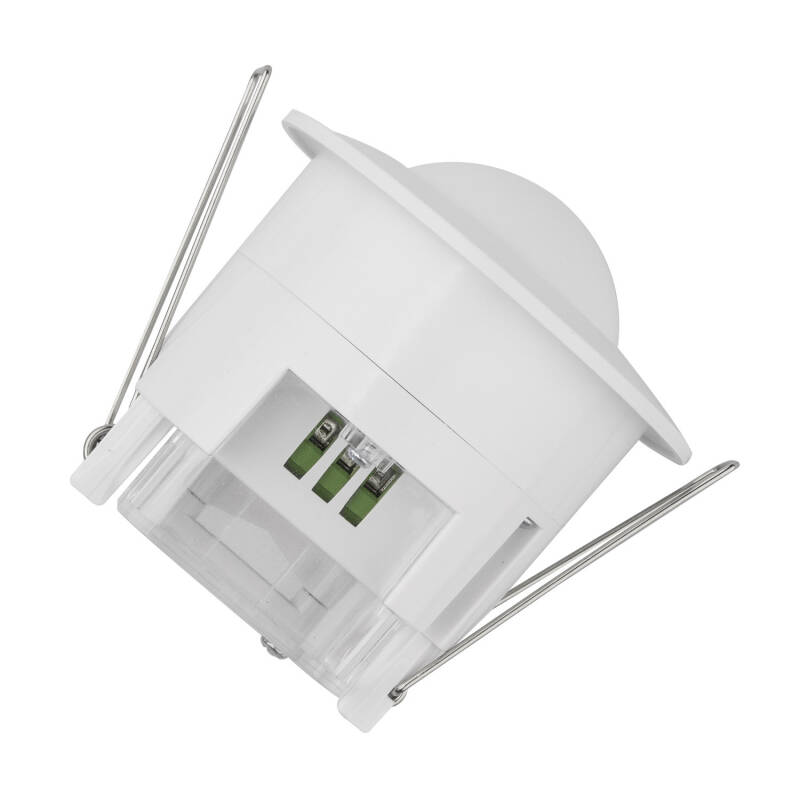

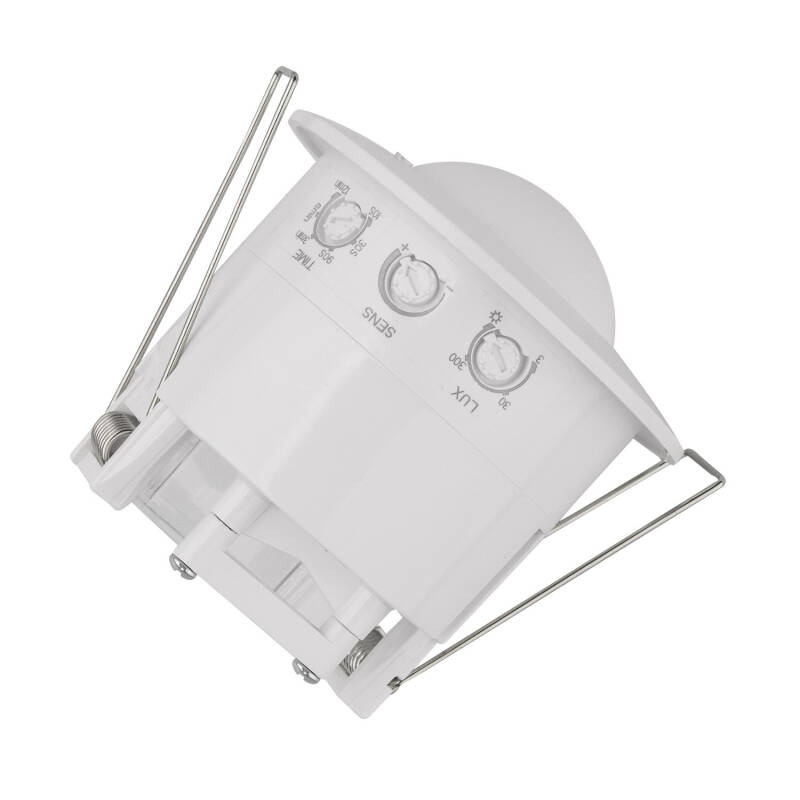

Radar Motion Sensor 360°
Ref. Lyco: E1232
VAT not included £11.66
£13.99
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

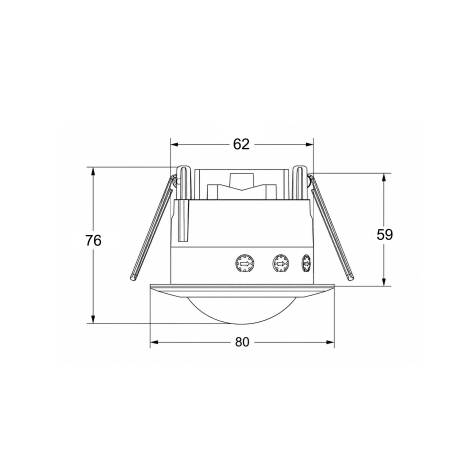

Dimensions
- Height75 mm
- Diameter80 mm
- Cut Out DimensionsØ60 mm
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorRadar
- Sensor TypeRadar Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This Motion Sensor, which can be recessed in the ceiling, has a 360º coverage angle and a 1 to 8 metre detection field when installed at a height of 1.5 to 3.5 metres.
The detector activates its output circuit when motion is detected within its range and deactivates when the movement is no longer detected, after an adjustable amount of time. It includes a detection distance regulator, light sensitivity (day/night) and a timer.
Detection angle: 360°
Detection distance: a 1 to 8 metre radius.
Minimum power-ON time: 10 seconds ±3 seconds.
Minimum power-OFF time: 12 minutes ±1 minute.
Installation height: 1.5 to 3.5 metres.
Detection speed: 0.6-1.5 m/s.
Charges: 300W LED and 1200W Incansdescent.
