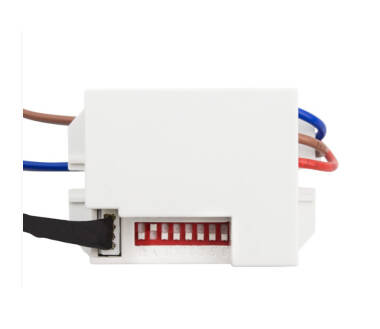

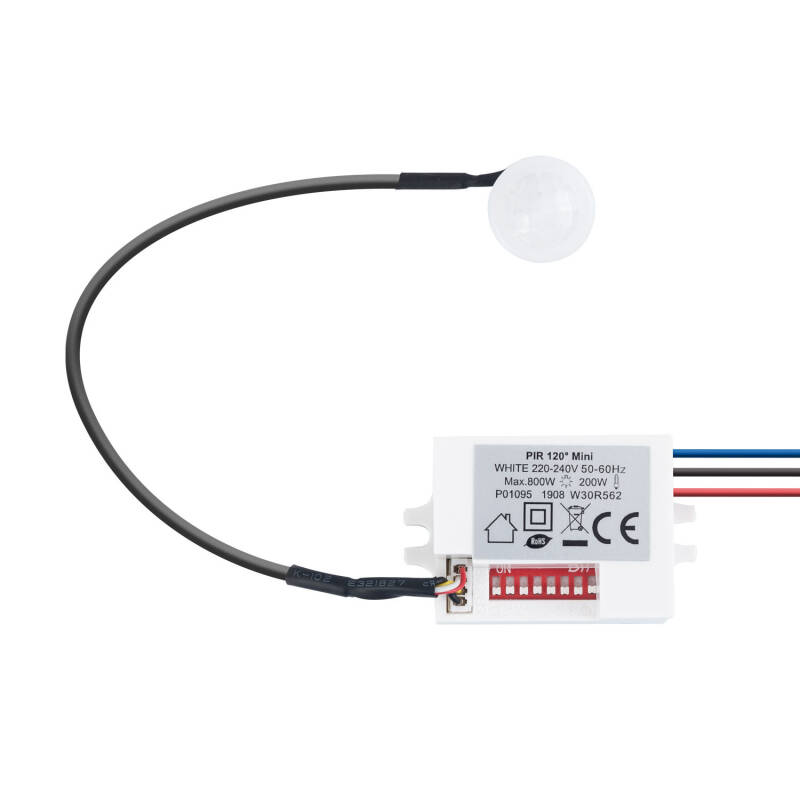

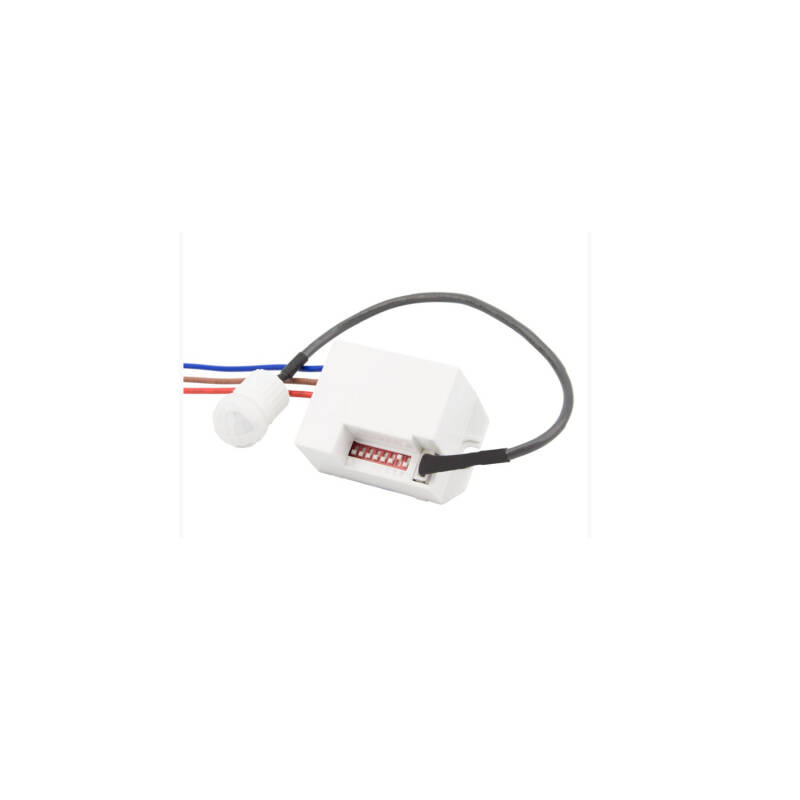

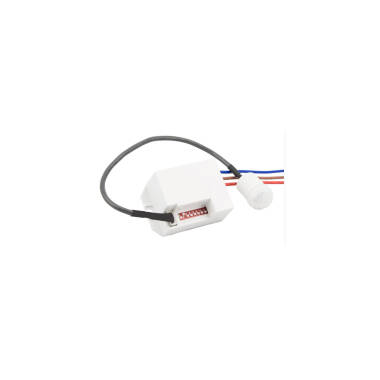

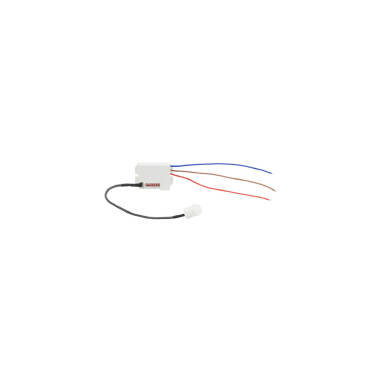

PIR Motion Sensor 120° Mini
Ref. Lyco: E1230
VAT not included £6.66
£7.99
IN STOCK - Delivered in 1 to 2 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

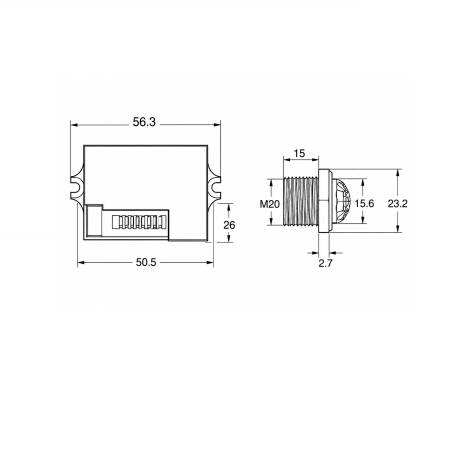

Dimensions
- Depth25 mm
- Width34 mm
- Height56 mm
- Cut Out DimensionsØ19.5 mm
Downloads
PDF Datasheet 1095 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage200 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range120 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This PIR Motion Sensor can be either recessed in a ceiling or installed on a wall. It has a 120º coverage angle and a detection field of up to 6 metres (approximately) when at a height of 1.8~2.5m (on a wall) or 2.2~4m (recessed).
Capable of detecting invisible infrared emissions coming from any heat source without emitting any kind of radiation.
The detector activates its output circuit when a heat source moves in front of the sensor and deactivates when the movement is no longer detected, after an adjustable amount of time.
- It can be recessed or installed on a wall.
- Adjustable light sensitivity.
- Adjustable delay time: choose between 5 sec, 30 sec, 1 min, 3 min, 5 min and 8 min.
- Detection speed: 0.6~1.5 m/s.
Charges: 300W LED and 800W Incandescent.
