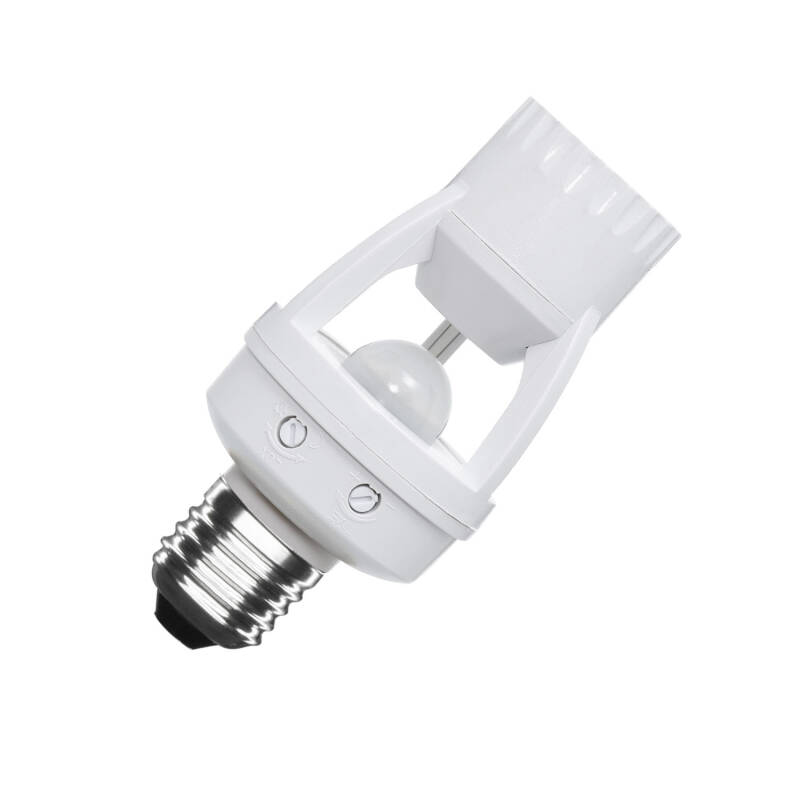

PIR Motion Sensor for GLS (E27) Bulbs
Ref. Lyco: E2020
£7.99
VAT not included £3.99
£4.79
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

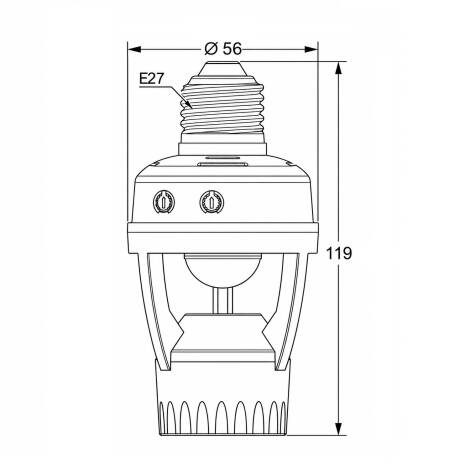

Dimensions
- Height119 mm
- Diameter56 mm
Downloads
PDF Datasheet 1093 EN
IM_1093
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Cap CodeE27
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This PIR Motion Detector with an E27 base for E27 lamps is ideal for installations at a height between 2 and 3.5 metres.

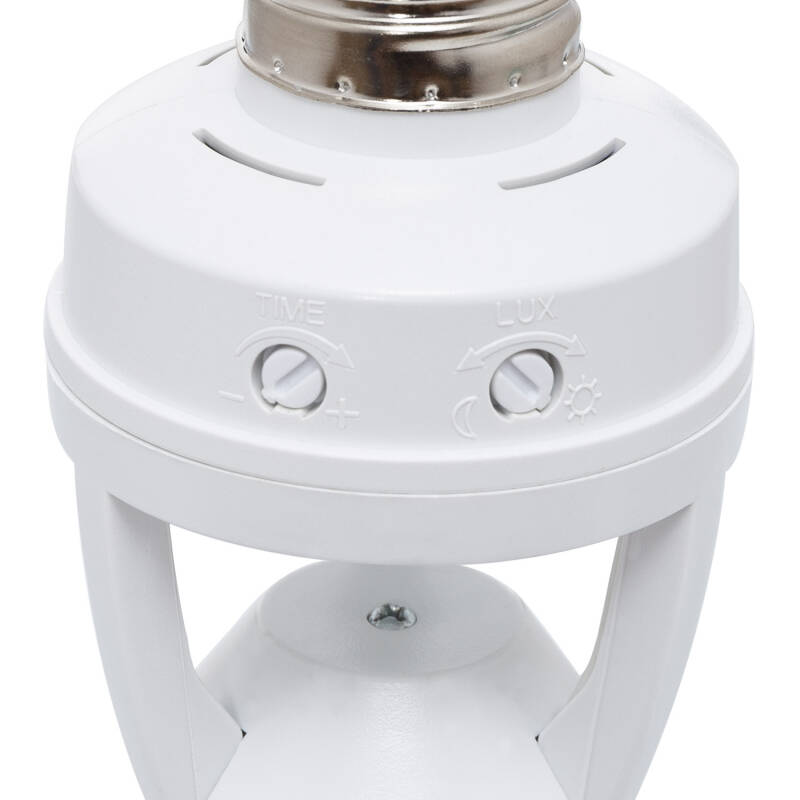

The detector senses invisible infrared emissions coming from people and other heat sources without emitting any radiation, activating when a heat source is located in front of the sensor (Detection distance: 6m) and deactivating once it stops capturing the heat source. It has an adjustable ON-time (with a minimum of 10 seconds and a maximum of 5 minutes) and it's sensitive to day and night (ambient light).
For optimal operation it is necessary that this device is well located, without any objects or material that is obstructing, preventing or hindering the detector.
*Do not install inside closed luminaires.
*Maximum charge: 60W.
