PIR Motion Sensor 180°
Ref. Lyco: E1834
£7.99
VAT not included £3.99
£4.79
IN STOCK - Delivered in 1 to 2 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

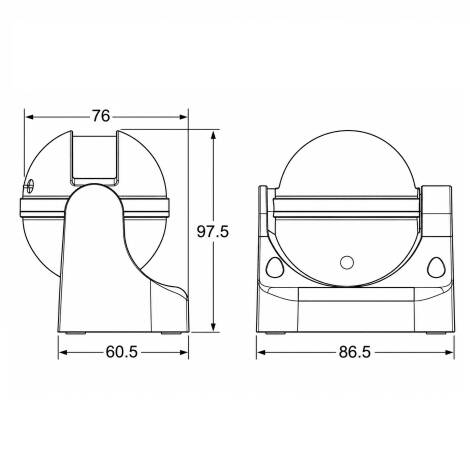

Dimensions
- Height76 mm
- Width86.5 mm
- Depth97.5 mm
Downloads
PDF Datasheet 500 EN
IM_500
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This wall mounted Motion Sensor has a 180° coverage angle and a 12 metre detection radius when at a height of 1.8 to 2.5 metres. It's ccapable of detecting infrared emissions from any heat source without emitting any radiation.
_x000D_The detector activates its output circuit when a heat source moves in front of the sensor and deactivates when the heat is no longer detected and some time has passed.
_x000D_ _x000D_Detection Angle: 180°
_x000D_Detection Distance: 12 metres.
_x000D_Minimum ON time: 10 seconds ±3 seconds.
_x000D_Maximum ON time: 7 minutes ±2 minutes.
_x000D_Installation Height: 1.8 to 2.5 metres.
_x000D_Detection Speed: 0.6-1.5 m/s.
_x000D_Charges: 300W LED and 1200W Incandescent.
