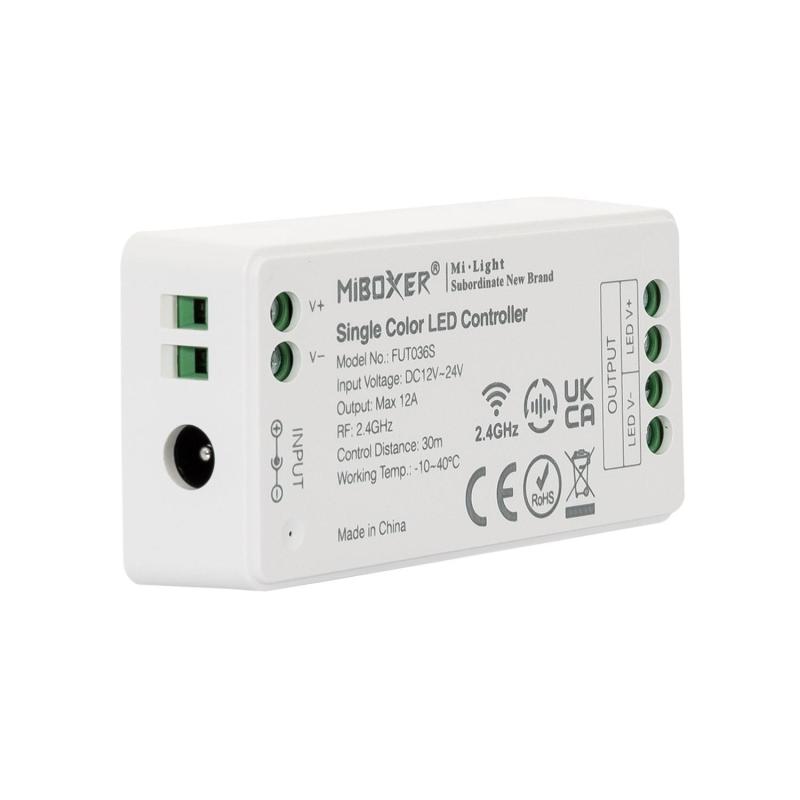

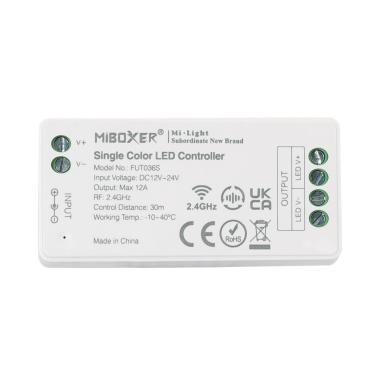

MiBoxer Single Colour 12/24V DC LED Dimmer Controller
Ref. Lyco: E1217
Light Colour Monochrome
£13.99
VAT not included £6.99
£8.39
Delivered in 8 to 14 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth17 mm
- Height36 mm
- Width74.5 mm
Certificates and Stamps
Technical Specifications
LED Features
- Light ColourMonochrome
Electrical Features
- DimmableYes
- Max Wattage288 W
- Maximum Output Current12 A
- Type Of DimmingRemote Control
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Materials and Finishes
- ColourGrey
- Fitting MaterialPC
- Not IncludedRemote
Product Data
- Product FormatDimmer Switch
- Product typeController
Driver Information
- ConnectivityRF
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Key Features
- The MiBoxer FUT036S Single Colour 12/24V DC LED Dimmer Controller is specially developed for the control of Dimmable Single Colour LED Strips.
Description
The MiBoxer FUT036S 12/24V DC Monochrome LED Dimmer Controller is specially designed for controlling Dimmable Monochrome LED Strips.
With this dimmer controller, you can remotely and intelligently control your 12-24V LED Strips using the MiBoxer RF Remote Control. It allows you to adjust the brightness to suit every occasion. Furthermore, when combined with the MiBoxer 2.4GHz Gateway WL-box1 WiFi Controller, you can control the LED Strips via WiFi from your Smartphone.
Features of the MiBoxer FUT036S 12/24V DC Monochrome LED Dimmer Controller

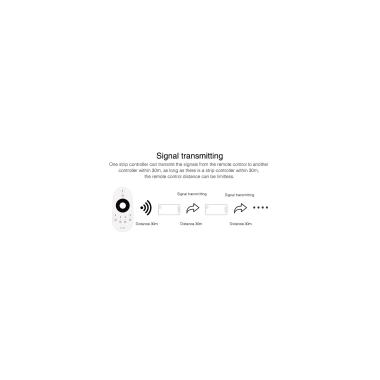

The Monochrome LED Dimmer Controller 12/24V DC MiBoxer FUT036S is made of highly resistant PC material and has an extra flat and slim design, making it suitable for a wide range of applications. With this controller, you can remotely control the LED Strip using a MiBoxer RF Remote Control. The maximum distance between the remote and the nearest controller is 30 meters, and the signal can be transmitted to another controller within a 30-meter range.

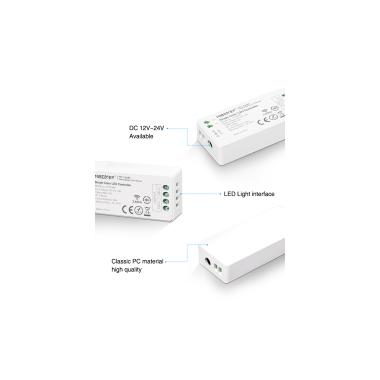

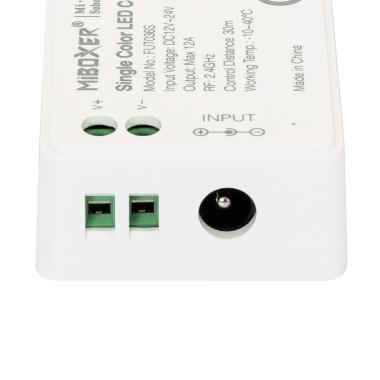

Its installation is very simple, it is powered by 12-24V DC through a Jack connector or can be directly connected via V+/V- ports using a cable. The maximum output current is 12A.
It is compatible with MiBoxer RF Remotes, available on our website, which can be found under the references FUT006, FUT007, B2/T2, B1/T1, FUT087, and with the WiFi controller WL-Box1.
Transform your home into a smart one with the intelligent control products available in our online store.
*It is compatible with MiBoxer RF Remotes, available on our website, which can be found under the references FUT006, FUT007, B2/T2, B1/T1, FUT087, and with the WiFi controller WL-Box1.
