Wattage 42 W
Voltage Range 220-240V AC
Type Of Dimming DALI, Push button
Power Factor 0.94
Wattage
42 W
Voltage Range
220-240V AC
Type Of Dimming
DALI, Push button
Power Factor
0.94
IP Rating
IP20
Battery Operated
No
Dimensions
146 mm x 27.5 mm x 46 mm
Width
27.5 mm
Height
146 mm
Fitting Material
PC
Brand
Lyco
Dimmable
Yes

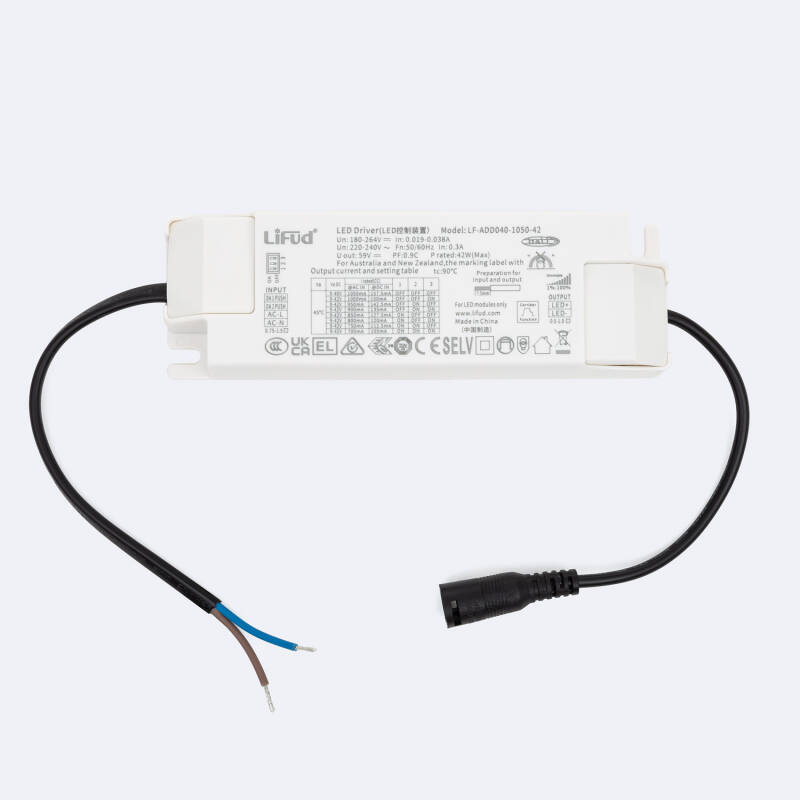

6.3-42W Dimmable LIFUD Driver DALI Output 9-42V 550-1050mA LF-AAD040-1050-42
Ref. Lyco: E7737
VAT not included £18.74
£22.49
Wattage 42 W
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height146 mm
- Width27.5 mm
- Depth46 mm
Downloads
PDF Datasheet 92755_193640 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Type Of DimmingDALI, Push button
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage42 W
Product Information
- BrandLyco
- CertificatesCE, RoHS, CB, UKCA, ENEC, CCC
- Guarantee3 years
- Product SeriesADDXXX
Product Data
- Product FormatLED Driver
- Product typeDriver
LED Features
- Power Factor0.94
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Materials and Finishes
- Fitting MaterialPC
Driver Information
- Driver Intensity700 mA-1050 mA
- Driver Tension9 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
Driver of the prestigious company LIFUD specially designed for LED panels, LED downlights, LED panels and LED ceiling lights. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel, we must consult the voltage and output current of the driver.
Characteristics of the 220-240V LIFUD Dimmable DALI No Flicker Driver 9-42V Output 550-1050mA 23-40W LF-AAD040-1050-42
This Driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. This driver allows us to control the luminaire via the DALI (Digital Addressable Lighting Interface) system. DALI is a common interface that allows us to dim, program on/off, automate and generate timers. A DALI network consists of a DALI controller and one or more DALI Drivers. This is useful for saving energy and adapting to different scenarios. Its power factor is very high, making it a very efficient driver.
