Wattage 5 W
Voltage Range 220-240V AC
IP Rating IP20
Battery Operated Yes
Wattage
5 W
Voltage Range
220-240V AC
IP Rating
IP20
Battery Operated
Yes
Dimensions
30 mm x 45 mm x 165 mm
Width
45 mm
Height
30 mm
Battery Capacity
2200 mAh
Autonomy
3 h
Fitting Material
Steel
Brand
Lyco
Working Temperature
-10 °C~+55 °C

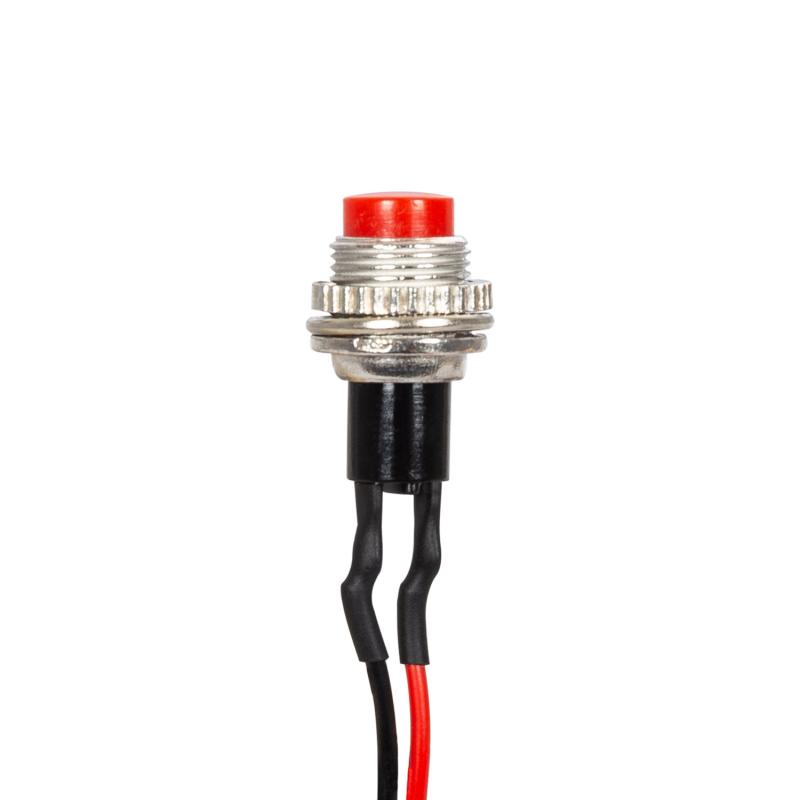

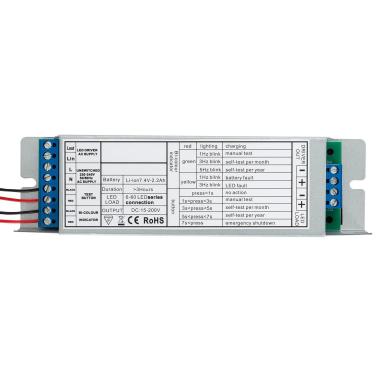

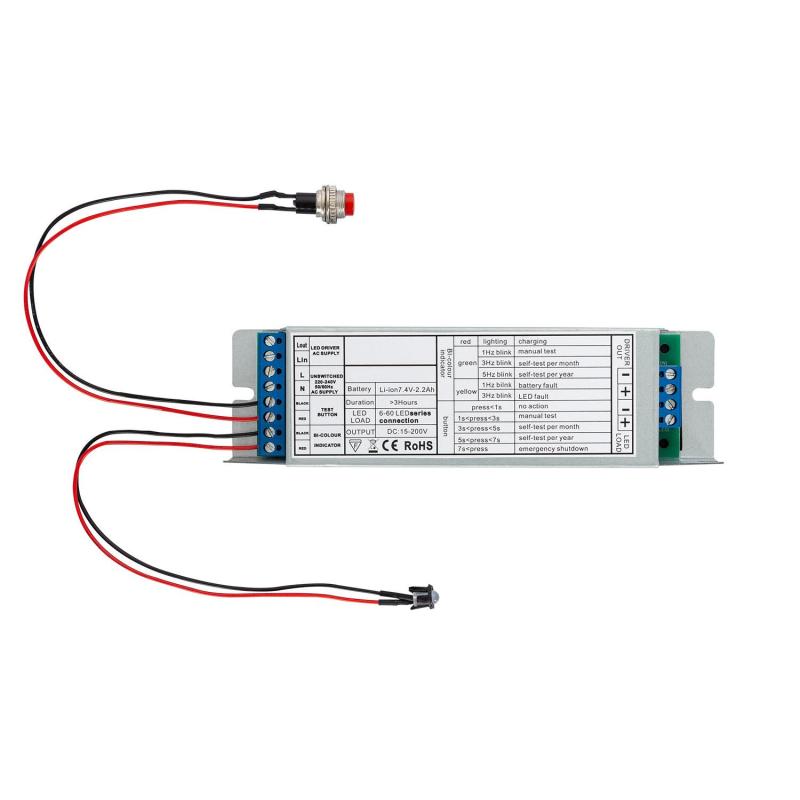

Emergency Kit for Non-Permanent LED Luminaires with Autotest Button
Ref. Lyco: E36298
VAT not included £18.33
£22.00
Wattage 5 W
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth165 mm
- Height30 mm
- Width45 mm
Downloads
PDF Datasheet 97217_201056 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage5 W
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Working Temperature-10 °C~+55 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Battery Information
- Autonomy3 hBattery life of the luminaire at full charge, without wear, and at medium light level.
- Battery Capacity2200 mAh
- Battery Voltage7.4 V
- Charging Time24 hTime required to fully recharge the product's battery, depending on the battery capacity and the charging source.
- Number Of Batteries1
- Type Of BatteryLi-ion
Product Data
- Product FormatLED Driver
- Product typeEmergency Lights
Materials and Finishes
- ColourSilver / White
- Fitting MaterialSteel
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- Driver Tension15 V-200 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
The main function of the Emergency Kit for Non Permanent LED Luminaires with Autotest Button, is to provide power in case of power failure for any type of LED luminaires such as tri-proof kits, panels... maintaining the luminaire on, providing 5W of power for up to 180 minutes of autonomy. It can work with any type of LED luminaire, from 200W UFO Bells to 40W panels.

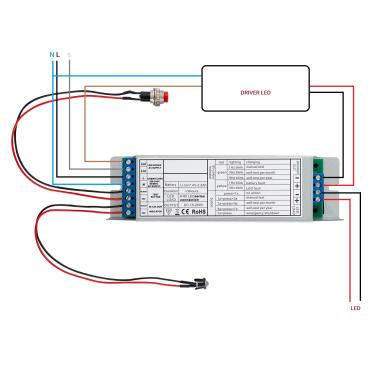

Installation of the Emergency Kit for Non-Permanent LED Luminaires:
-Connect the input of the emergency module (AC Supply L/N) to the mains where the emergency lighting is connected.
-Connect the phase of the luminaire driver to the input indicated on the module (Lout) and the neutral to the neutral of the lighting circuit.
-Connect the output of the light point switch to the module (Lin).
-Connect the output of the driver to the module (Driver Out + -)
-Connect the luminaire to the module (LED Load + -).
*It is important to respect the polarities of the wires.
Operation of the Emergency Kit for Non-Permanent LED Luminaires:
The emergency mains charges the battery and in the event of a power failure it automatically switches on and is powered by the battery.
Features of the Emergency Kit for Non-Permanent LED Luminaires
- Battery type: 3.7V 2200mAh Li-ion
- Full charge time: 24 hours
- Battery life: 180 minutes, 5W power output

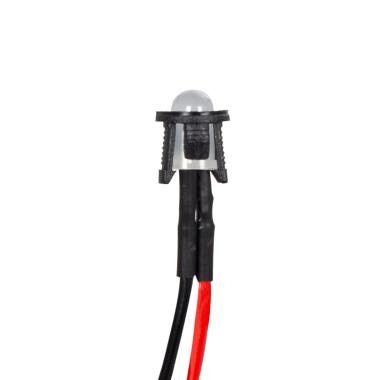

- Incorporates an LED to show the status of the emergency module
