Image of DALI Dimmable Driver for 12 - 24V Monochrome LED Strip with Push Button Compatibility
Image of DALI Dimmable Driver for 12 - 24V Monochrome LED Strip with Push Button Compatibility
Image of DALI Dimmable Driver for 12 - 24V Monochrome LED Strip with Push Button Compatibility

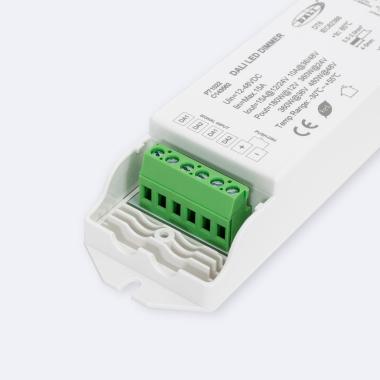

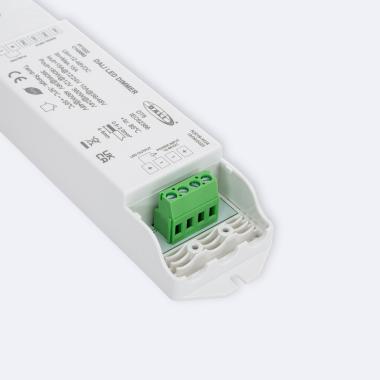

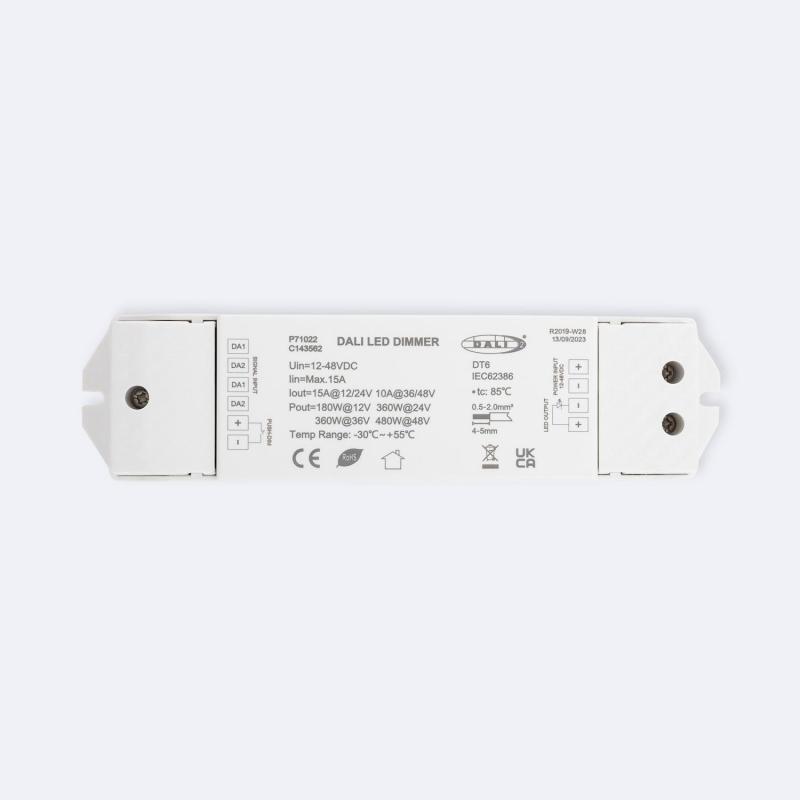

DALI Dimmable Driver for 12 - 24V Monochrome LED Strip with Push Button Compatibility - White

Ref. Lyco: E1574

Finish White

  • White

VAT not included £20.83

£25.00

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

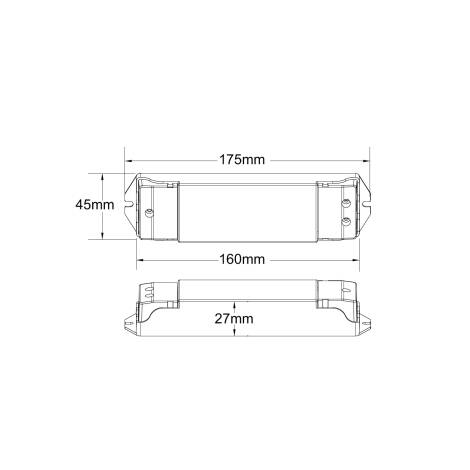

Dimensions

  • Width175 mm
  • Height27 mm
  • Depth45 mm

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Driver Information

    • Driver Intensity10 mA - 15 mA
    • Driver Power180 W-480 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension12 V-48 V

  • Materials and Finishes

    • ColourWhite
    • FinishWhite
    • Fitting MaterialPC, ABS

  • Electrical Features

    • DimmableYes
    • Type Of DimmingDALI
    • Voltage level required for the product to function correctly.
      Voltage Range12V DC, 24V DC, 36V DC, 48V DC

  • Product Data

    • Product FormatDimmer Switch
    • Product typeDriver

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
Summer lights

Key Features

  • DALI dimmable driver for monochrome LED strip.
  • Allows you to digitally adjust the brightness of your LED strips, allowing you to create different atmospheres according to your needs and occasions.
  • Can be mounted anywhere and can be connected to a traditional push button switch for on/off and dimming.
  • Maximum Power: 180-480 W
  • Colour: White
  • Material: Plastic
  • Guarantee: 3 years guarantee.
  • IP Rating: IP20, Class I
  • Dimensions:
    Overall - H 27 x W 45 x D 175mm

Description

The DALI Dimmable Driver for Monochrome LED Strip with Push Button Compatibility is a product specially designed to provide digital control via the DALI protocol to your LED strips. With this dimmable driver, you can digitally adjust the brightness of your LED strips, allowing you to create different atmospheres according to your needs and occasions.

This driver has a wide range of technical features that guarantee optimum performance. With one output channel and a maximum current of 15A, this driver offers precise and stable dimming. It complies with DALI protocol standards (IEC 62386-102, IEC 62386-207) and is compatible with other international DALI products, ensuring seamless integration into your lighting system.

Features of the DALI Dimmable Driver for Monochrome LED Strip with Push Button Compatibility

Installation of the DALI Dimmable LED Strip Driver 12/24V Pushbutton Compatible is simple and versatile. It can be mounted anywhere, either screwed to the wall or in the junction box. In addition, for those who wish to use a traditional push button instead of a DALI dimmer, this driver offers the possibility to connect a traditional push button switch for on/off and dimming.

Safety is also a priority with this product. The driver is protected against overheating, overload and short-circuit and recovers automatically once the situation has been corrected. In order to dim via a push button and the driver without having to use a DALI dimmer, a bridge must be made from the DC voltage input of the positive and negative poles to the DALI signal inputs, the polarity of the DALI signal inputs does not matter.
