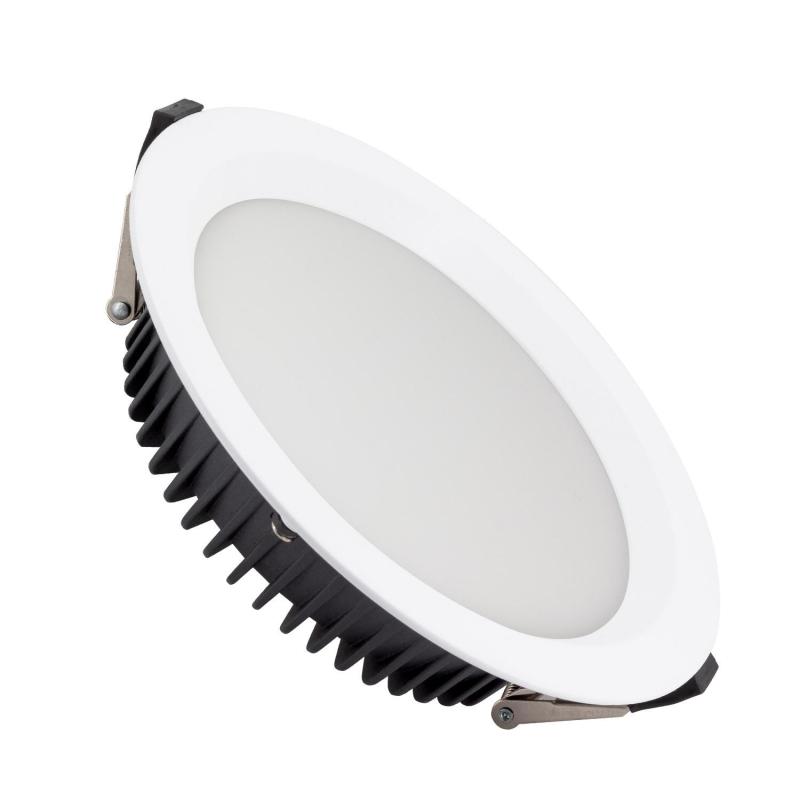

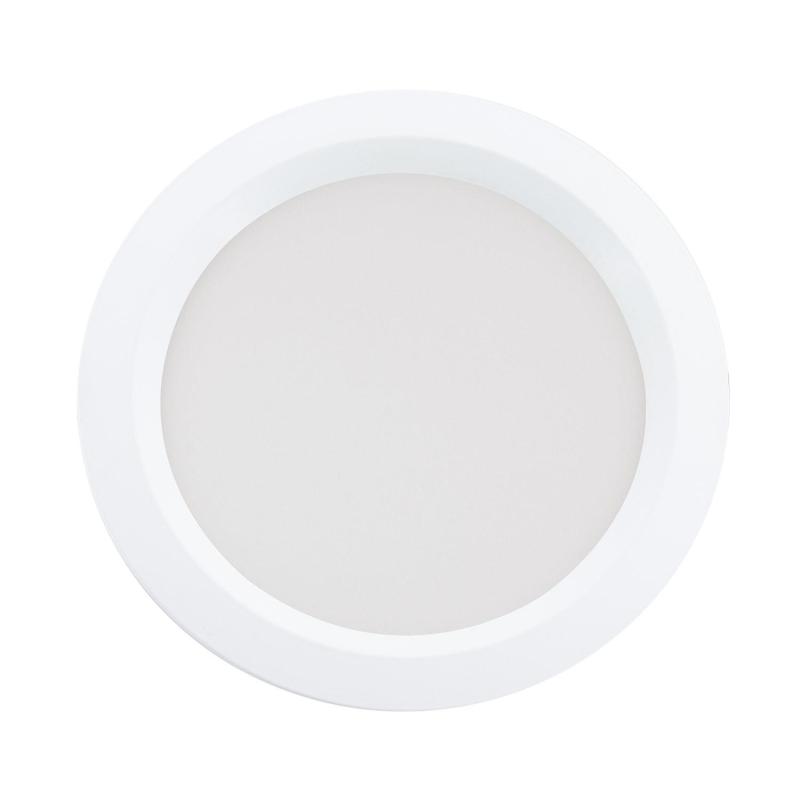

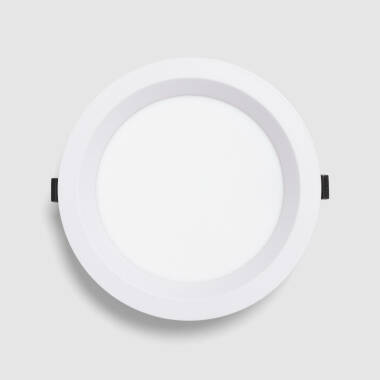

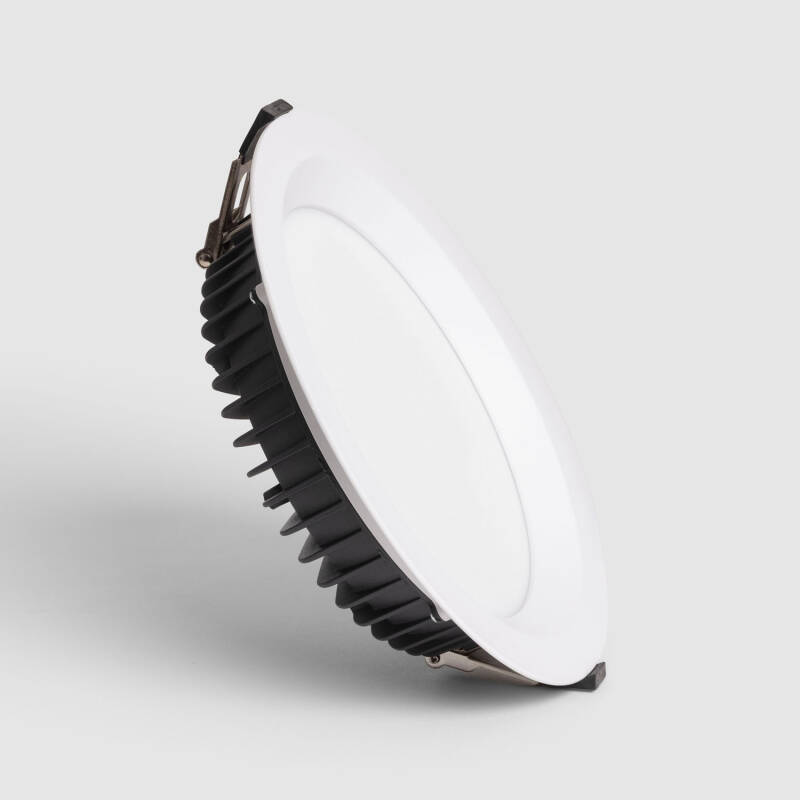

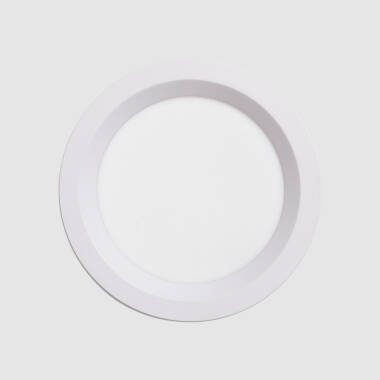

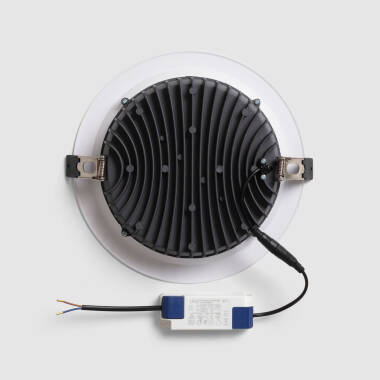

Round Dimmable 1-10V 24W Cool White LED Downlight SAMSUNG Aero Cutout 200mm LIFUD Driver - White
Ref. Lyco: E1672
Type Of Driver 1-10V
Colour Temperature Cool White 4000K
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

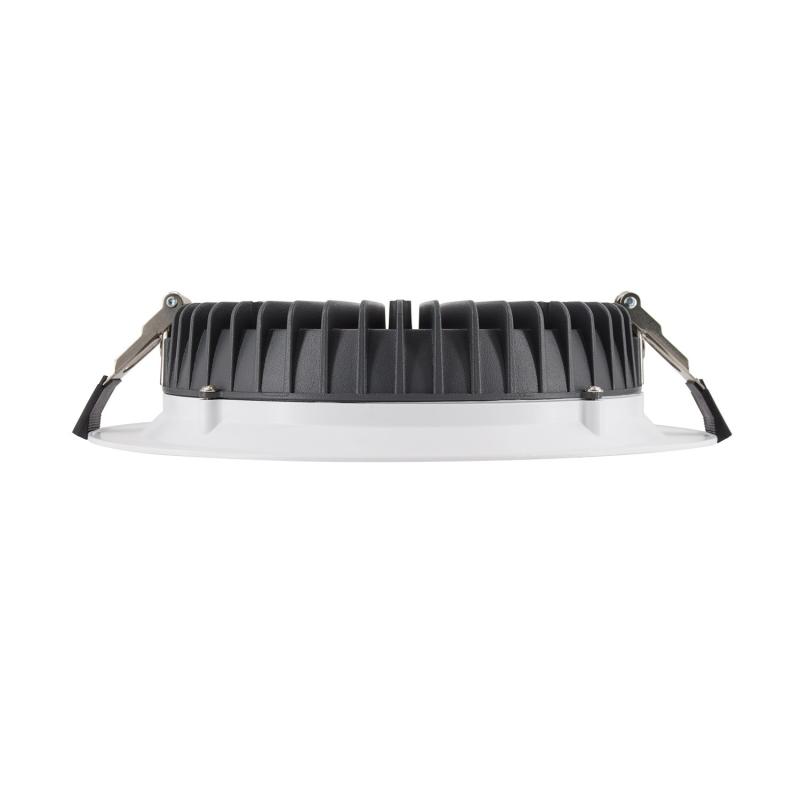

Dimensions
- Diameter237 mm
- Height55 mm
- Cut Out DimensionsØ200 mm ~ Ø220 mm
Downloads
PDF Datasheet 9997_23758 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSAMSUNG SMD2835
- Replaceable Light SourceYes
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage24 W
Materials and Finishes
- ColourWhite
- Fitting MaterialPC, Aluminium
- Type Of LensOpaal
LED Features
- Beam Angle110ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index85Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <22Low-glare products offer more comfortable lighting, suitable for extended use.
- LED Performance130 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen3000 lm
- Luminous Efficiency125 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.96
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.

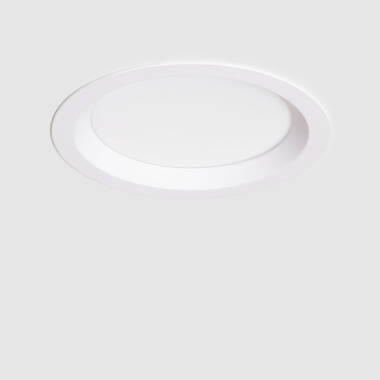

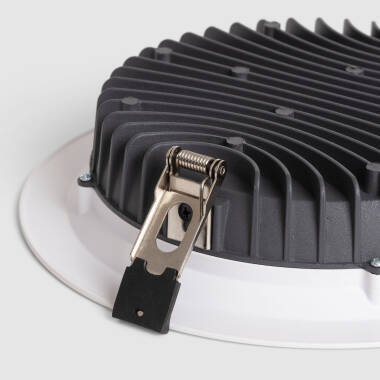

- InstallationRecessed
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV, UKCA
- Guarantee5 years
- Product SeriesAero
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight

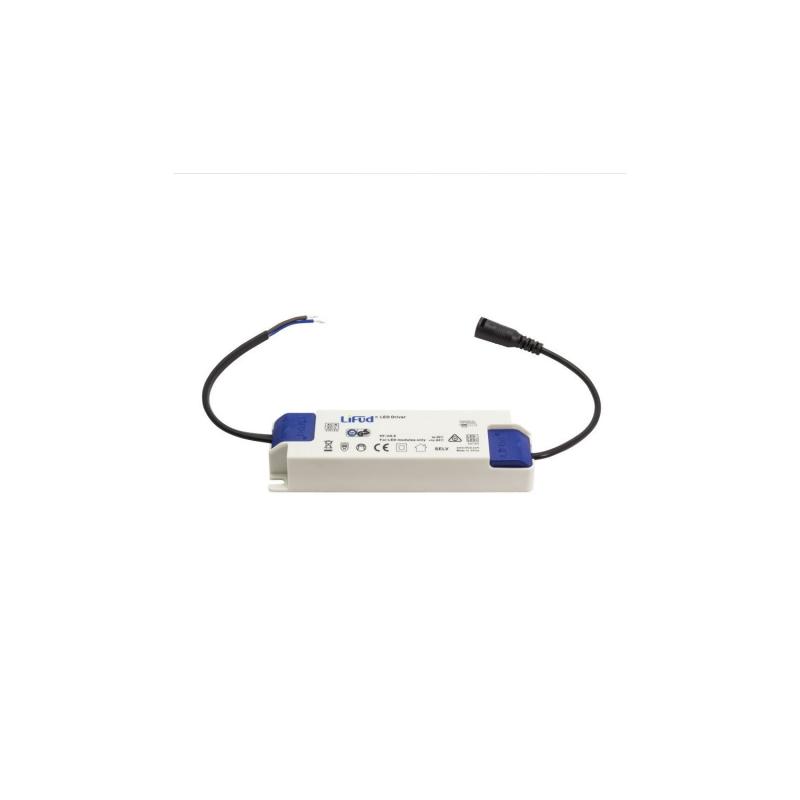

Driver Information
- Driver Tension25 V DC-42 V DCVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver1-10V
Key Features
- Fixed ceiling downlight in a white finish
- Colour: White
- Material: Polycarbonate
- Wattage: 24W equivalent to 240W halogen.
- Light Colour: Cool White (4000K).
- Average Life Expectancy: 40,000 hours.
- Guarantee: 3 years guarantee.
- Dimmable: Dimmable with LED compatible dimmer switch.
- IP Rating: IP44, Class II
- Fire Rating: No.
- Dimensions:
Overall - H 55 x W 237 x D 237mm
Cut Out - Dia 200mm
Description
The 24W 4000K SAMSUNG New Aero LIFUD LED Downlight UGR19 Cut Ø 200 mm has amazing attributes and is an excellent option for general lighting in commercial spaces.
Features of 24W 4000K SAMSUNG New Aero LIFUD LED Downlight UGR19 Cut Ø 200 mm
It features high-performance components such as a Lifud driver and high-efficiency Epistar-SMD2835 LED chips. With a luminous output of 120 lm/W, this LED downlight is the perfect replacement for low-power 50W downlights. It has a high CRI, so it faithfully displays colours.
The design of the 24W 4000K SAMSUNG New Aero LIFUD LED Downlight UGR19 provides uniform light distribution with a beam angle of 110 º. An opal diffuser is also included to help reduce glare.
It operates at a multi-voltage of 100-240V AC and requires a 200mm cut-out for recessed installation. It is made of aluminium which contributes to improved durability of the luminaire which has an estimated lifespan of 30,000 hours.
It is mainly used in spaces requiring long hours of active use such as shops, museums, shopping centres, hotels, supermarkets, restaurants, etc. It plays a key role as a general lighting luminaire.
Purchase the 24W 4000K SAMSUNG New Aero LIFUD LED Downlight UGR19 with dimming or non-dimming capabilities at LEDKIA, our online lighting store.
* The dimmable version has a 1-10V dimming system.
* The technical characteristics that appear in the video may vary. Please consult the technical data sheet for more information.
