Wattage 9 W
Voltage Range 220-240V AC
Lumen 1080 lm
Diameter 44 mm
Wattage
9 W
Voltage Range
220-240V AC
Lumen
1080 lm
Diameter
44 mm
IP Rating
IP20
Battery Operated
No
Dimensions
55 mm x Ø44 mm
Height
55 mm
Luminous Efficiency
120 lm/W
Beam Angle
24º
Colour Rendering Index
90
Brand
Lyco
Round 9W Cool White LED Modular Spotlight for Lux Downlight Bezel
Ref. Lyco: E10809
VAT not included £19.16
£22.99
Colour Temperature Cool White 4000K
Product is unavailable
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter44 mm
- Height55 mm
Downloads
PDF Datasheet 99057_204694 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Frequency50-60 Hz
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage9 W
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- BrandLyco
- CertificatesCE
- Guarantee3 years
- Product SeriesLux Design
LED Features
- Beam Angle24ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index90Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourCool White
- Lumen1080 lm
- Luminous Efficiency120 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Product Data
- Product FormatLED Driver
- Product typeBulbs
Materials and Finishes
- ColourBlack
- IncludesDriver
Description

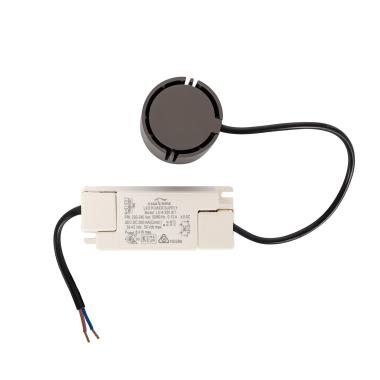

The 9W Modular LED Spotlight for Lux Downlight is a product that allows us to replace GU10 or MR16 bulbs with a high power LED Module and external driver. An external driver allows the LED to work at higher powers, extends the useful life and also offers great versatility, because we can replace it with a dimmable driver, TRIAC, DALI or 1-10V.
All the characteristics of this LED lighting product mean that it performs well. Ideal for use in interior spaces where it is not necessary to use a large amount of light. See use especially in passage areas such as hallways, corridors or stairs.
*Module for use in Lux Downlight Rings
