1m Super Slim Surface 48V Magnetic Track 25mm - Black & White Design
Ref. Lyco: E36508
Colour Black / White
VAT not included £12.08
£14.50
IN STOCK - Delivered in 1 to 2 working days
(1)4 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth1000 mm
- Width25 mm
- Height5.5 mm
Certificates and Stamps
Technical Specifications
Materials and Finishes
- ColourBlack / White
- Fitting MaterialAluminium, Steel
Mechanical Features
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Type Of TrackMagnetic 25 mm
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesBosio
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Voltage Range48V DCVoltage level required for the product to function correctly.
Product Data
- Product FormatTrack
- Product typeTrack Spotlight Accessories
Key Features
- Colour: Black, White
- Material: Aluminium, Polycarbonate
- Guarantee: 3 years guarantee.
- IP Rating: IP20, Class I
- Dimensions:
Overall - H 5.5 x W 25mm
Description

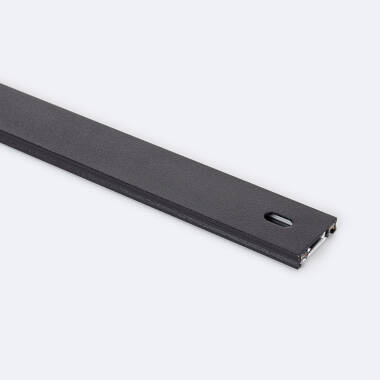

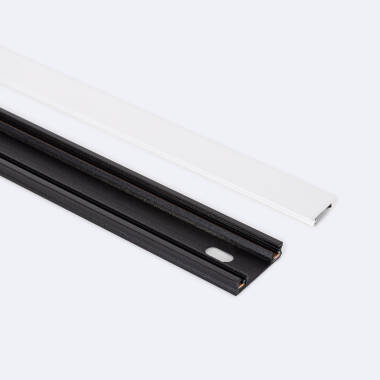

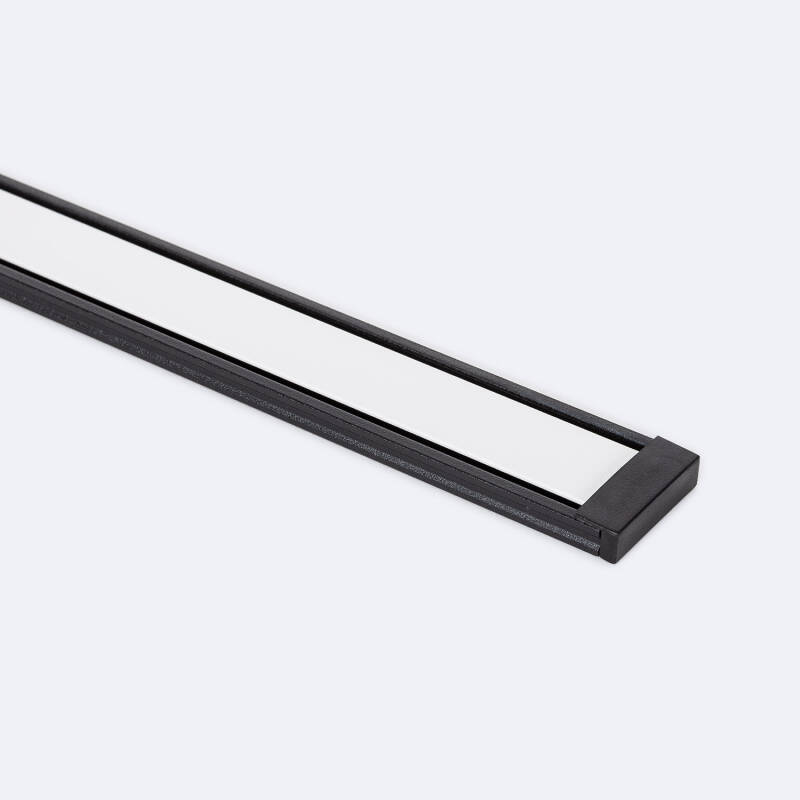

The 1m 48V Super Slim 25mm Surface Mounted Single Phase Rail is the main component for installing the Super Slim magnetic luminaires. This system makes working with the lighting much easier, as the lamps can be installed and moved along the track without the need for any specific tools.
Features of the 1m 48V Super Slim 25mm Surface Mounted Single Phase Rail
The Single Phase Magnetic Track 25mm Super Slim 48V 1m is manufactured from high quality materials and incorporates a copper conductor on each side, which feeds the luminaires installed on the track. It stands out for its extra flat size measuring only 5.5mm. With magnetic rail systems we save on maintenance costs and obtain a higher quality light thanks to its wide range of products.
This track is powered by a power supply that can be inserted into the track itself or by an external power supply using the wired connector.
Installation of the Single Phase 25mm Super Slim Magnetic Rail 48V 1m
The installation of the 25mm Super Slim 48V 1m Single Phase Magnetic Rail can be done in different ways:
-Screwed directly onto the surface where you want to install it, removing the trim that covers the fixing holes.
-Recessed with its Single Phase 25mm Super Slim Surface 48V Magnetic Track Recessed Profile following the common process for recessing any product, (Not included).
-Single Phase 25mm Super Slim Magnetic Track Spotlights can be fitted and removed by simply squeezing the side tabs of the spotlight (not included).
