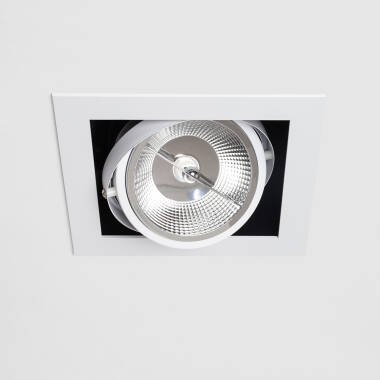

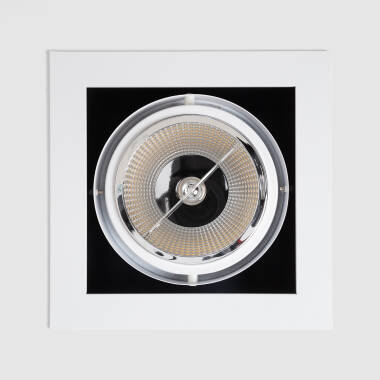

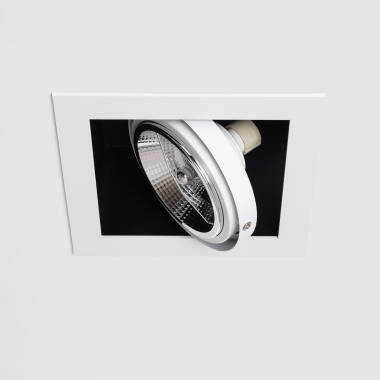

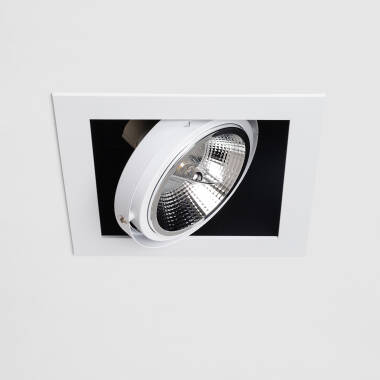

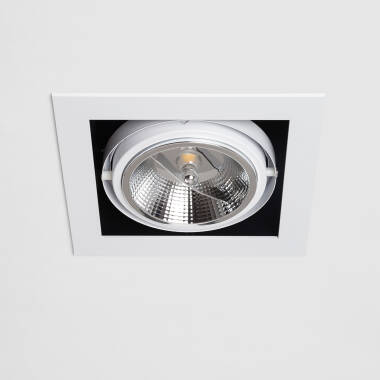

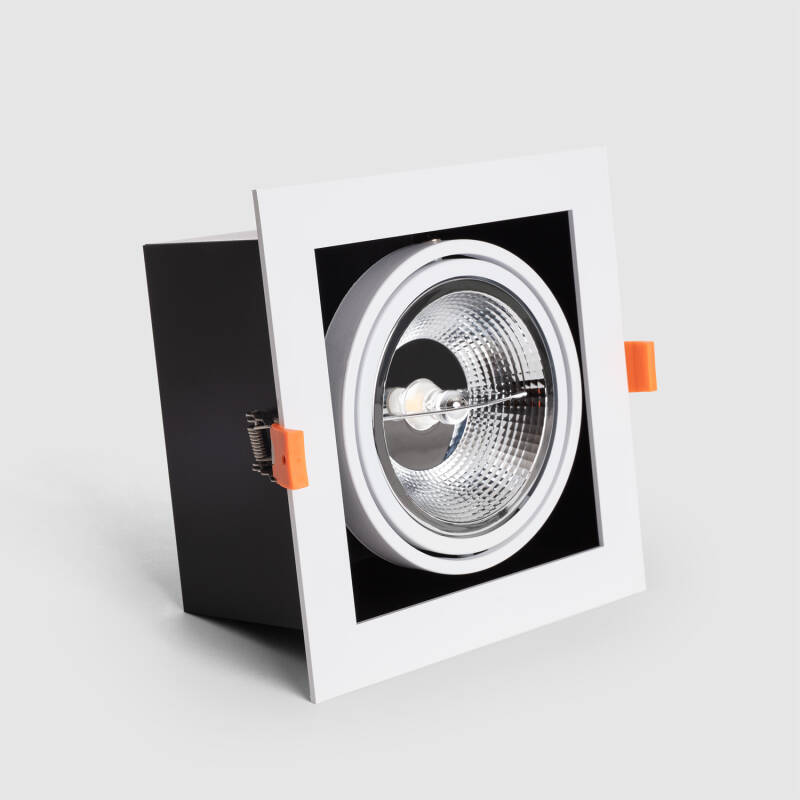

Square Adjustable Downlight Kardan Cutout 165x165mm with 12W Cool White AR111 LED Bulb - Black & White
Ref. Lyco: E36439
Colour Temperature Cool White 4000K
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height110 mm
- Cut Out Dimensions165 mm x 165 mm
- Depth190 mm
- Width190 mm
Downloads
PDF Datasheet 97816_201971 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- Cap CodeGU10
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Recommended BulbLED GU10 Bulb
- ShapeSquare
Electrical Features
- DimmableNo
- Electrical Insulation ClassI
- Frequency50-60 Hz
- No. Of Lights1
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage12 W
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV
- Guarantee3 years
- Product SeriesKardan
LED Features
- Beam Angle24ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourCool White
- Lumen900 lm
- Luminous Efficiency75 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Product Data
- Product FormatAdjustable Downlight
- Product typeLED Downlight
Materials and Finishes
- ColourWhite / Black
- Fitting MaterialPC, Aluminium
Key Features
- Colour: White
- Material: Aluminium
- Wattage: 12W
- Light Colour: Cool White (4000K).
- Average Life Expectancy: 40,000 Hours hours.
- Guarantee: 3 years guarantee.
- Bulb: Max 12W LED GU10 Bulb.
- IP Rating: IP20, Class I
- Fire Rating: No.
- Dimensions:
Overall - H 110 x W 190mm
Cut Out - Dia 165x165mm
Description
The Kardan 12W AR111 Square Directional LED Downlight 165x165 mm Cut Out integrates a GU10 AR111 LED bulb with a brightness of 900 lm. It provides, at an angle of 24º, a high quality light that ensures a very natural colour rendering.
Lighting elements such as the GU10 AR111 12W 24º LED Bulb are designed for the illumination of commercial spaces. They are recessed in a hole with the indicated dimensions. Thanks to its 24° beam opening angle, it is perfect for highlighting product areas or illuminating shop windows
