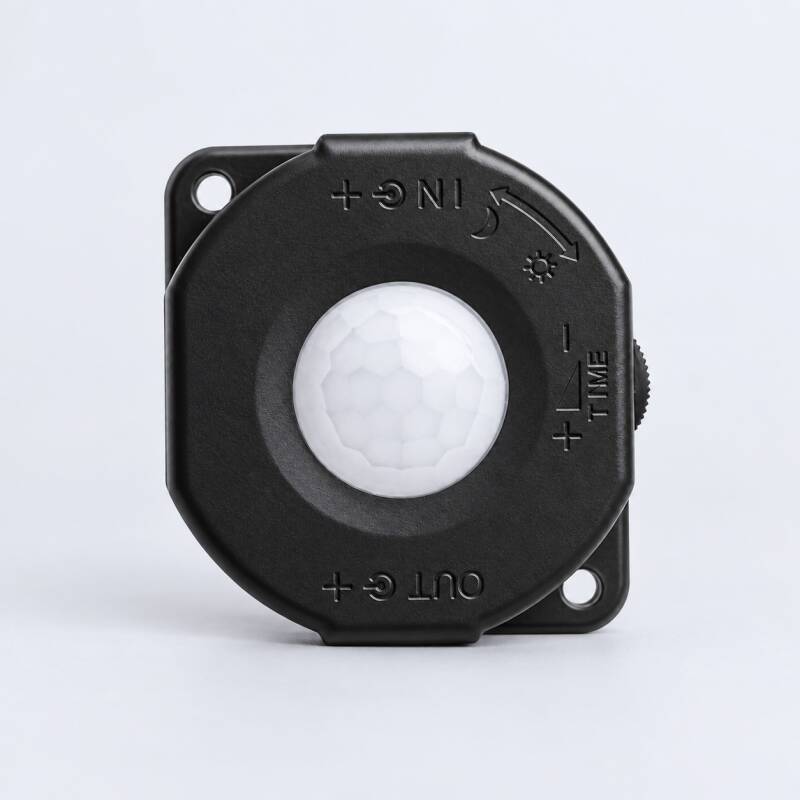

Image of Surface/Wall 120º PIR Motion Sensor for LED Strip

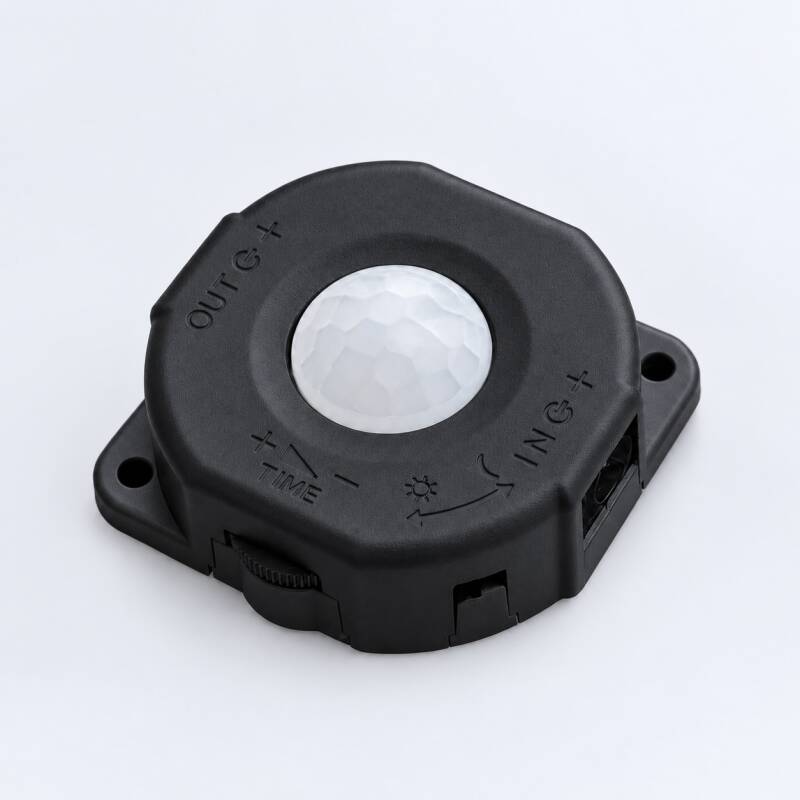

Image of Surface/Wall 120º PIR Motion Sensor for LED Strip

Black IP20 12/24VDC 144W with Jack Connector

Download technical datasheet

Ref. Lyco: 83867

Colour Black

VAT not included £6.66

£7.99

IN STOCK - Delivered in 8 to 14 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Depth29 mm
  • Height42.5 mm
  • Width49 mm

Downloads

  • pdf file

    PDF Datasheet 96872_224066 EN

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Max Wattage144 W
    • Voltage level required for the product to function correctly.
      Voltage Range12V DC, 24V DC

  • Mechanical Features

    • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
      Detection Range120 °
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • SensorPIR
    • Sensor TypePIR Motion

  • Product Data

    • Product FormatPIR Light Controller
    • Product typeSensors

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialPC
Outdoor Lights

Key Features

Surface-mounted PIR motion sensor designed for LED strip lighting with a 120° detection angle. Operates at 12V or 24V DC voltage, supporting a maximum load of 144W. Rated IP20 for indoor use, ensuring protection against solid objects but not water ingress. Compact dimensions of 42.5 mm x 49 mm x 29 mm facilitate easy installation on surfaces. Incorporates a reliable PIR sensor for motion detection within a 3-metre range. Constructed from durable polycarbonate (PC) material, finished in black. Certified to CE, RoHS, and UKCA standards, guaranteeing compliance with safety and environmental regulations. Ideal for efficient and secure integration in indoor electrical installations, including offices, residential communities, and commercial spaces.

Description

This 120º PIR Motion Sensor for 12/24V DC LED Strip Jack Connector is the ideal solution to control single-colour LED strips at 12/24 VDC, as it allows us to turn on the LED strip without having to touch any element.

When it detects movement it switches on and can be adjusted from 15 seconds to 5 minutes. The maximum detection distance is 5 metres.
