Voltage Range 12V DC, 24V DC, 48V DC
Max Wattage 720 W
Type Of Dimming APP
IP Rating IP20
Voltage Range
12V DC, 24V DC, 48V DC
Max Wattage
720 W
Type Of Dimming
APP
IP Rating
IP20
Battery Operated
No
Dimensions
27.9 mm x 40.6 mm x 124.5 mm
Width
40.6 mm
Height
27.9 mm
Connectivity
RF, Wi-Fi
App
MiBoxer Smart
Fitting Material
PC
Brand
MI-LIGHT

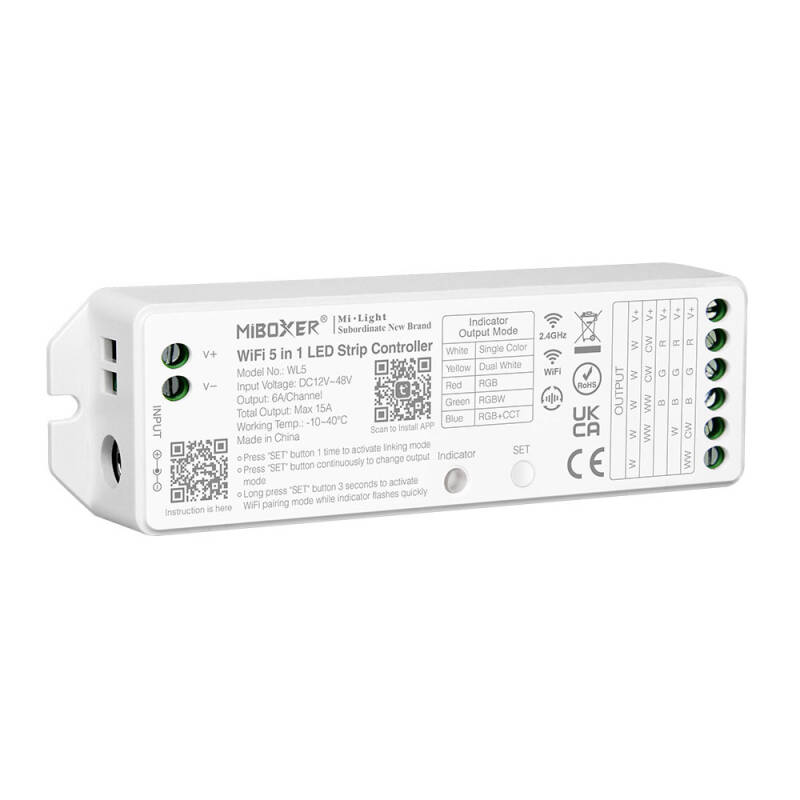

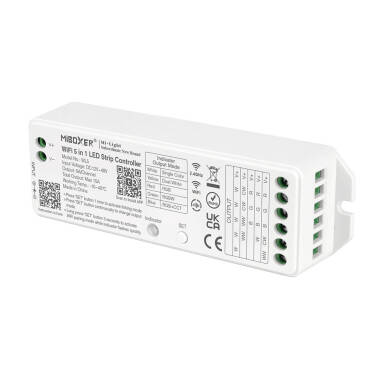

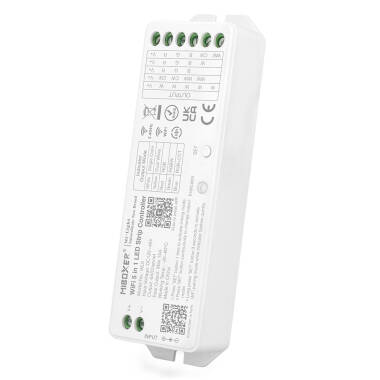

5 in 1 WiFi LED Controller for Monochrome/CCT/RGB/RGBW/RGBW/RGBWW 12/24V DC LED Strip MiBoxer
Ref. Lyco: E35874
EAN 13: 8445044045327
Ref. Stock: 198074
VAT not included £24.16
£28.99
Light Colour Single colour / CCT / RGB / RGBW / RGB+CCT
In Stock, Delivered from 19 days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth124.5 mm
- Height27.9 mm
- Width40.6 mm
Downloads
PDF Datasheet 95180_198074 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity6 A
- DimmableYes
- Max Wattage720 W
- Maximum Output Current15 A
- Type Of DimmingAPP
- Voltage Range12V DC, 24V DC, 48V DCVoltage level required for the product to function correctly.
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Working Temperature-20 °C~+60 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
- Not IncludedRemote
Product Data
- Product FormatAccessory
- Product typeController
Driver Information
- AppMiBoxer Smart
- CompatibilityAmazon Alexa, Google Assistant
- ConnectivityRF, Wi-Fi
Product Information
- BrandMI-LIGHT
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
LED Features
- Light ColourSingle colour / CCT / RGB / RGBW / RGB+CCT
Description
The MiBoxer 12/24V DC 5 in 1 Monochrome/CCT/RGB/RGBW/RGBWW WiFi LED Dimmer uses wireless technology on the 2.4 GHz band and WiFi. It is specially designed for controlling Monochrome, CCT, RGB, RGBW, or RGBWW LED Strips.
Thanks to this controller, you can adjust the brightness or colour of the strips using your smartphone or an RF remote control, allowing you to create different atmospheres according to your needs.
Features of the MiBoxer 12/24V DC 5 in 1 Monochrome/CCT/RGB/RGBW/RGBWW WiFi LED Dimmer Controller
Controlled in different ways: through WiFi using your mobile device with the TUYA app, which can also be linked to Google and Amazon smart control devices, and through an RF Remote Control (not included).
It is the ideal solution for automating, streamlining, and controlling the lighting fixtures or electrical receivers in your home, as it allows you to remotely turn on and off the lights connected to it. Fully compatible with Amazon Alexa and Google Home. You can create a group with the lights in a room and manage your devices more efficiently by turning them all on or off with one press or even by voice command using Amazon Alexa or Google Home devices.
The device is controlled through the TUYA app. The app is available for iOS and Android operating systems. It can be downloaded from the App Store and Google Play respectively.
