Voltage Range 220-240V AC
Max Wattage 250 W
IP Rating IP20
Dimensions 39 mm x 39 mm x 18 mm
Voltage Range
220-240V AC
Max Wattage
250 W
IP Rating
IP20
Dimensions
39 mm x 39 mm x 18 mm
Width
39 mm
Height
39 mm
Connectivity
Wi-Fi
App
Smart Home
Fitting Material
PC
Brand
Lyco
Dimmable
No
WiFi Switch Compatible with Conventional Switch and Push Button
Ref. Lyco: E10393
VAT not included £10.83
£13.00
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

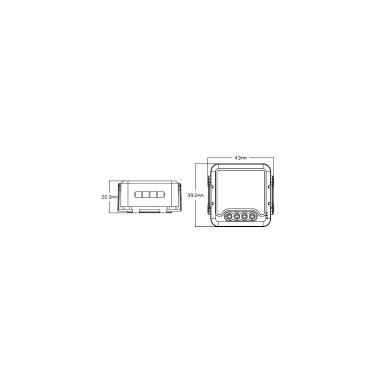

Dimensions
- Depth18 mm
- Height39 mm
- Width39 mm
Downloads
PDF Datasheet 94959_197755 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Frequency50-60 Hz
- Max Wattage250 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Data
- Product FormatLight Switch
- Product typeWi-Fi Module
Driver Information
- AppSmart Home
- ConnectivityWi-Fi
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
With the WiFi Switch you can turn traditional pushbutton switches into smart devices. Control this WiFi Smart Switch using the TUYA app. With it you can create an infinite number of "scenes" or program on/off times to turn your home or business into a smart space. One possible application of this product is to program the switch on and off within a schedule during the day. In addition, you can always turn on the luminaires by means of the pushbutton switches that you have installed.

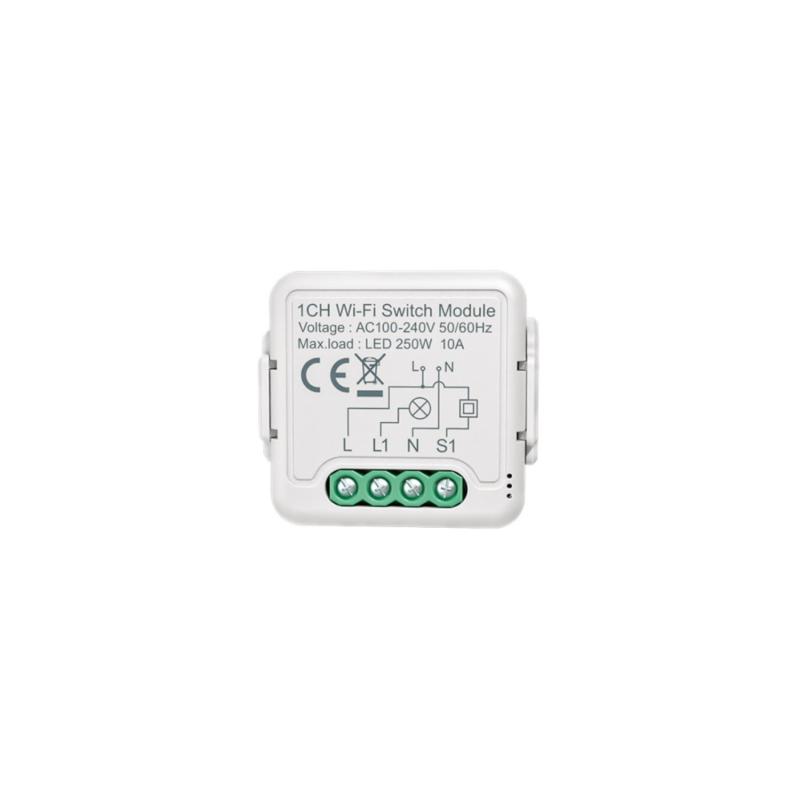

The Switch is a module containing an intelligent relay capable of switching on and off via WiFi any light bulb, panel, downlight and even fans, radiators or other appliances not exceeding 250W. You only need the switch to be synchronized and connected to your home WiFi.
Features of the WiFi Switch Compatible with Conventional Switch and Push Buttons

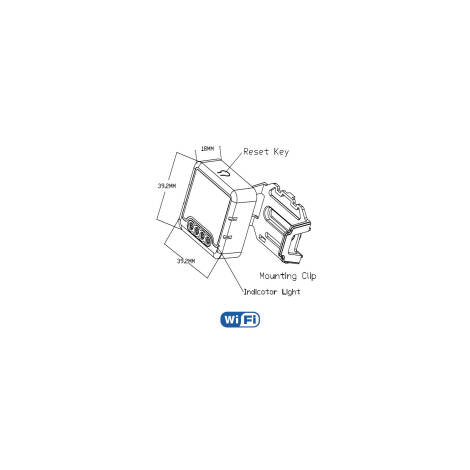

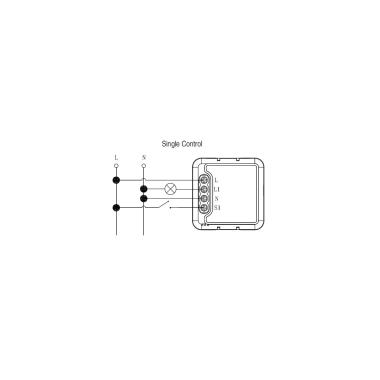

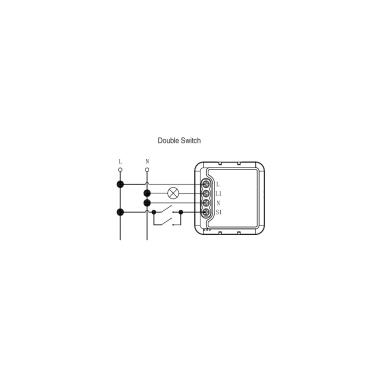

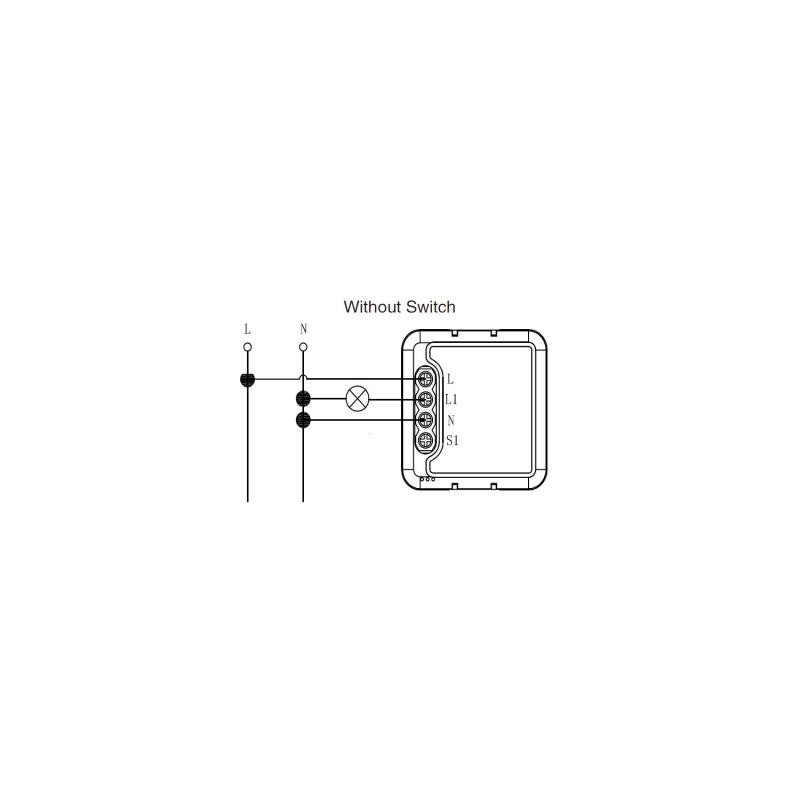

The switch has a small size allowing it to be placed on any DIN rail, universal box or false ceiling. Its installation is very simple, just connect the 220V AC power supply to the input, connect the pushbuttons to its input and connect the load to be controlled to the output.
To link the device for the first time to our WiFi network, connect the 220V AC power supply to the input and press the top button for 10 seconds for the device to enter pairing mode.
Applications of the WiFi Switch Compatible with Conventional Switch and Push Buttons
It is the ideal solution to automate, streamline and control lights or electrical receivers, because it allows us to turn on, turn off and regulate remotely the lights or electrical appliances connected to it. You can create a group with the luminaires you have in a room and manage your devices more efficiently by plugging or turning off all with a touch or even by voice thanks to Amazon Alexa or Google Home devices.
Control of the device will be done through the TUYA app. The APP is available for iOS and Android operating systems. It can be downloaded from the App Store and Google Play respectively.
Transform your home into a smart home thanks to the products you can find on our website.
*By default it is configured to be activated by switch and you have to change it through the app.
