Wattage 40 W
Voltage Range 220-240V AC
Type Of Dimming 0-10 V
IP Rating IP20
Wattage
40 W
Voltage Range
220-240V AC
Type Of Dimming
0-10 V
IP Rating
IP20
Battery Operated
No

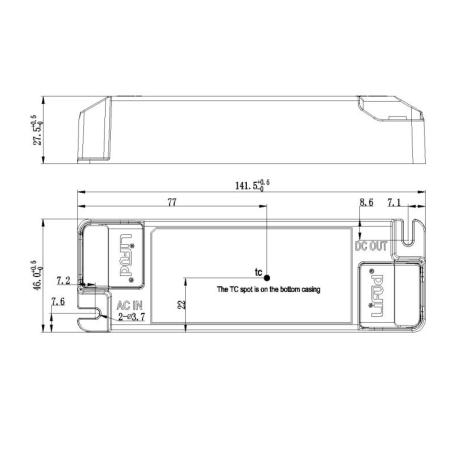

Dimensions
27 mm x 46 mm x 141 mm
Width
46 mm
Height
27 mm
Brand
Lyco
Dimmable
Yes
Working Temperature
-20 °C~+45 °C

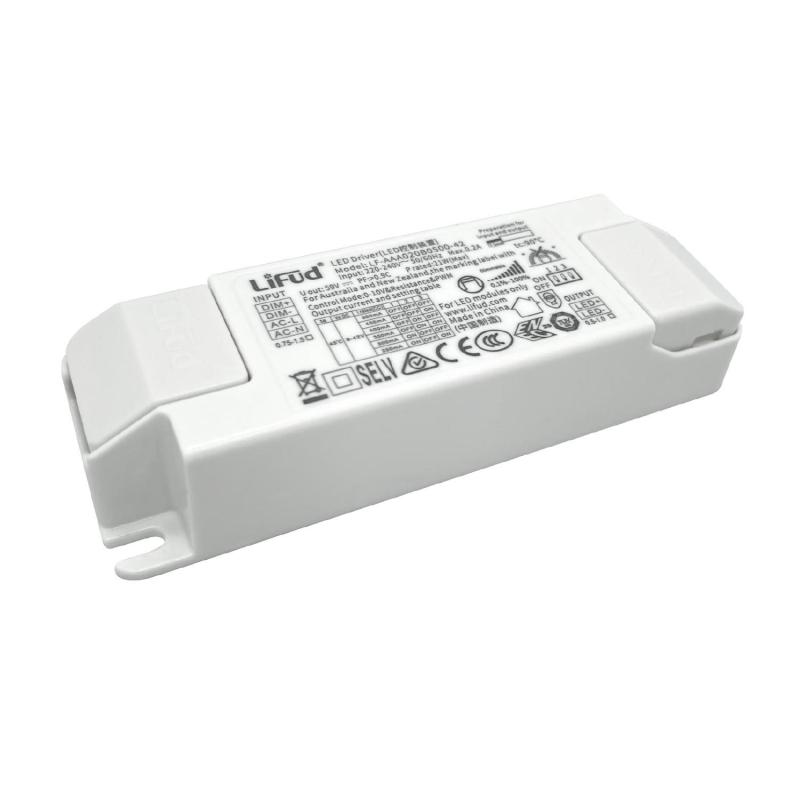

40W Dimmable LIFUD Driver 0-10V 220-240V Output 9-42V 550-1050mA LF-AAA040B1050-42
Ref. Lyco: E7738
Ref. Stock: 197413
(1)3 out of 5 stars
£26.99
VAT not included £10.57
£12.68
Wattage 40 W
IN STOCK - Delivered in 1 to 2 working days
(1)3 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth141 mm
- Height27 mm
- Width46 mm
Downloads
PDF Datasheet 94716_197413 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage40 W
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV, ENEC
- Guarantee3 years
- Product SeriesAAAXXXB
Product Data
- Product FormatLED Driver
- Product typeDriver
Materials and Finishes
- ColourWhite
Driver Information
- Driver Intensity500 mA-1050 mA
- Driver Power40 W
- Driver Tension9 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverLIFUD 0-10V dimmable NO flicker
Description
Driver of the prestigious company LIFUD specially designed for any application because its output does not incorporate any connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel, we must consult the voltage and output current of the driver.
Characteristics of the LIFUD Dimmable Driver 0-10V 220-240V No Flicker Output 9-42V 550-1050mA 40W LF-AAA040B1050-42
This Driver has a multi-voltage input. This means that it is able to withstand line voltage surges and dips for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The 0-10V dimmable driver must be used in conjunction with a 1-10V LED dimmer, which will allow us to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.
It also includes four contacts that allow the driver's output parameters to be adjusted, making it a highly versatile driver.
