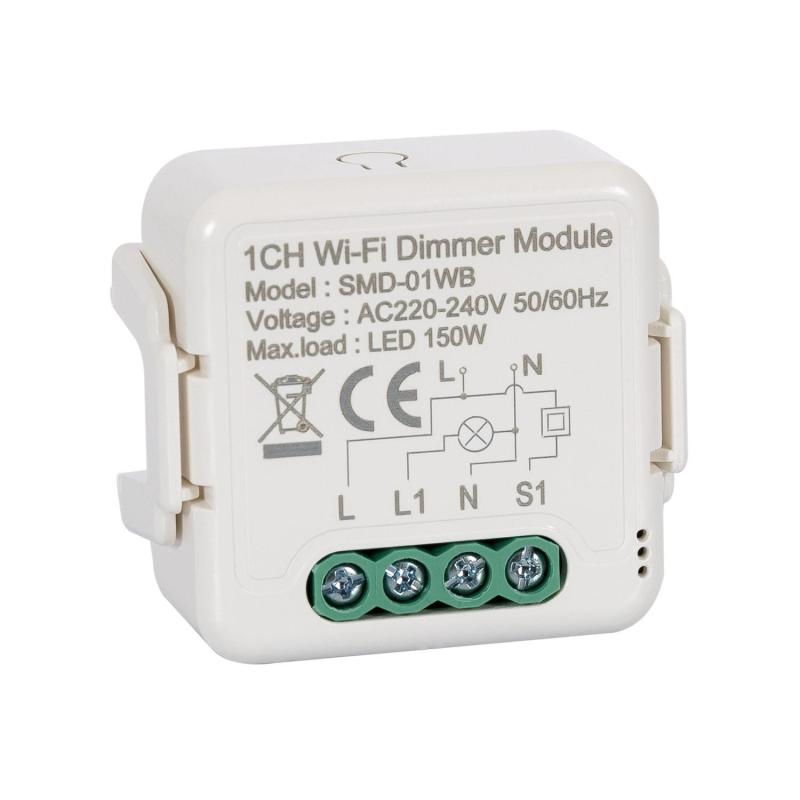

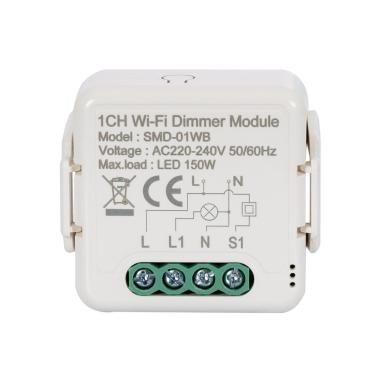

WiFi Dimmer Switch Compatible with Push Button
Ref. Lyco: E10355
Colour White
VAT not included £19.58
£23.50
IN STOCK - Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

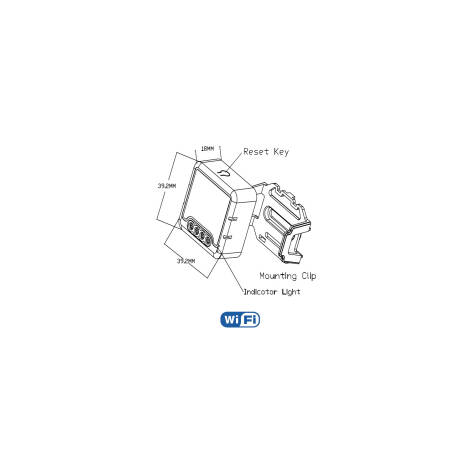

Dimensions
- Depth22.3 mm
- Height39.2 mm
- Width43 mm
Downloads
PDF Datasheet 94333_196899 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Max Wattage150 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingAPP, Push button
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Data
- Product FormatDimmer Switch
- Product typeWi-Fi Module
Driver Information
- AppTuya Smart
- CompatibilityAmazon Alexa, Google Assistant
- ConnectivityWi-Fi
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
With the WiFi Smart Dimmer Switch for Universal Box you can turn traditional pushbutton switches into smart devices. Control this dimmer switch using the TUYA app. With it you can create an infinite number of "scenes" or program switch ons to turn your home or business into a smart space. One possible application of this product is to program on and off within a schedule or to program different intensities during the day. In addition, you can always dim the luminaires using the pushbutton switches that you have installed.
The Smart WiFi Dimmer Switch Compatible with Push Button is a module that contains an intelligent relay capable of switching on, off and dimming via WiFi any light bulb, panel, downlight and even fans, radiators or other appliances that do not exceed 150W. All you need is for the Smart Dimmer Switch to be synchronised and connected to your home's WiFi.
Features of the Smart WiFi Dimmer Switch for the Universal Box

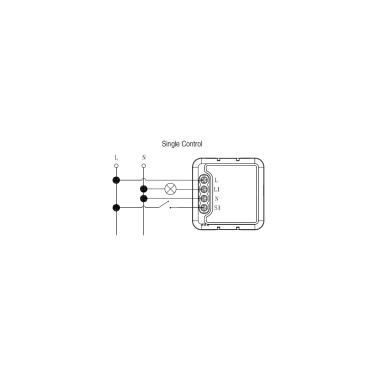

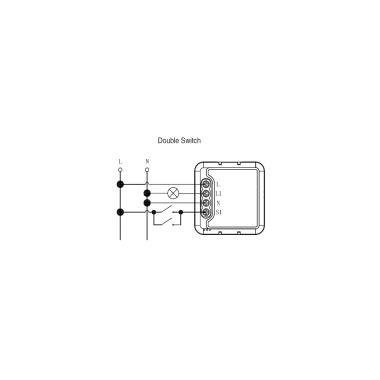

The switch has a small size allowing it to be placed in any universal recessed box or false ceiling. Its installation is very simple, connect the 220V AC power supply to the input and connect the load to be controlled to the output.
To link the device for the first time to our WiFi network, connect the 220V AC power supply to the input and press the top button for 10 seconds for the device to enter pairing mode.
Applications of the Smart WiFi Dimmer Switch for Universal Box
It is the ideal solution for automating, streamlining and controlling luminaires or electrical receivers, because it allows us to remotely switch on, switch off and regulate the luminaires or electrical appliances connected to it. You will be able to create a group with the luminaires you have in a room and manage your devices more efficiently by switching them all on or off with a single touch or even by voice thanks to Amazon Alexa or Google Home devices.
The control of the device will be done through the TUYA app. The APP is available for iOS and Android operating systems. It can be downloaded from the App Store and Google Play respectively.
Transform your home into a smart home thanks to the Smart WiFi products that you can find on our website.
