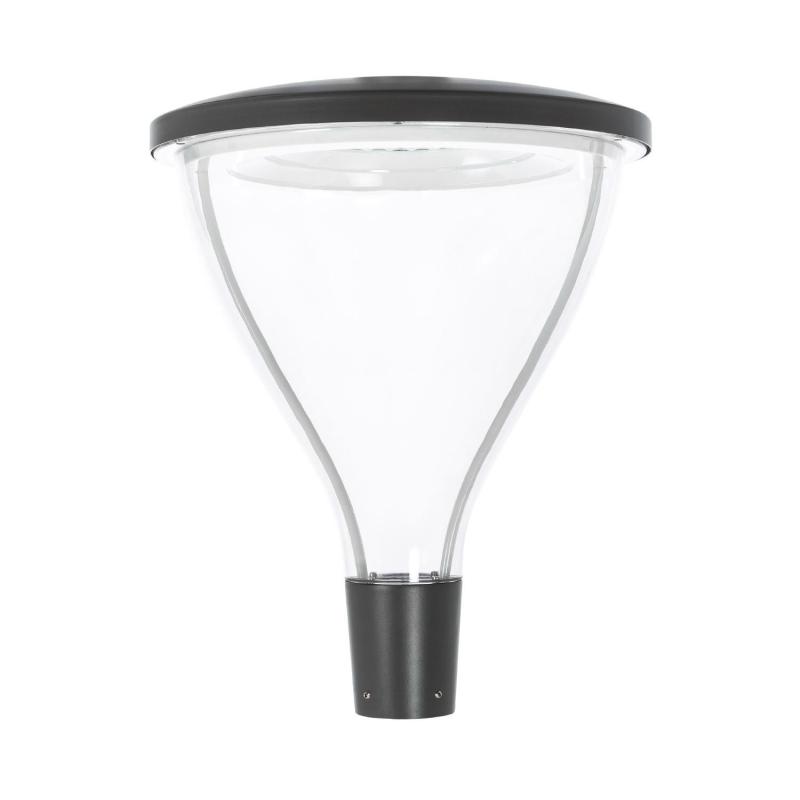

LumiStyle 60W Cool White LED Street Light DALI Dimmable - Asymmetric Beam
Ref. Lyco: E35521
Colour Temperature Cool White 4000K
Optic Asymmetrical 140ºx60º
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter565 mm
- Height720 mm

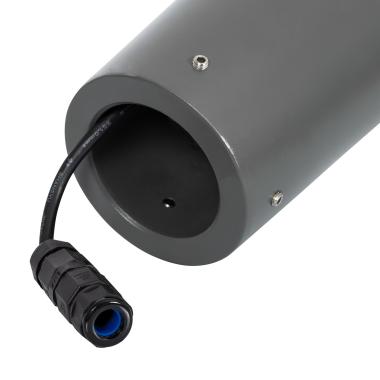

- Fixing DiameterØ76 mm
Downloads
PDF Datasheet 93260_194772 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS 5050
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Type Of DimmingDALI
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage60 W
Product Information
- BrandLyco
- CertificatesCE, RoHS, CB, ENEC
- Guarantee5 years
- Product SeriesLumiStyle
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- LED Performance145 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen5400 lm
- Luminous Efficiency135 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.98
Product Data
- Product FormatStreet Lighting
- Product typeStreet Lighting Accessories
Mechanical Features
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticAsymmetrical 140ºx60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Materials and Finishes
- ColourBlack
- Fitting MaterialPC, Aluminium
Key Features
- Colour: Aluminium, Clear
- Material: Aluminium
- Guarantee: 5 years guarantee.
- Dimmable: Dimmable with LED compatible dimmer switch.
- IP Rating: IP66, Class I
- Dimensions:
Overall - H 720 x W 565mm
Description
The LumiStyle 60W LUMILEDS PHILIPS Xitanium DALI Dimmable LED Street Light offers instant ignition and high power, being the ideal replacement for old discharge streetlights, improving light quality and significantly reducing energy consumption.
Faetures of the LumiStyle 60W LUMILEDS PHILIPS Xitanium DALI Dimmable LED Street Light

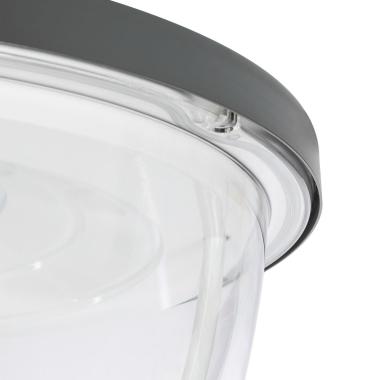

The light source is protected by tempered glass with an IP66 protection factor that makes it weather resistant. The luminaire body has been manufactured using the injection method to guarantee optimal quality of the heatsink, in high-quality aluminium. It has an internal hinge that improves its aesthetics without losing versatility. It has been given an anti-corrosive treatment, both chemical and mechanical, resistant to UV rays that further enhances its aesthetic durability. In addition, for added safety, the luminaire has a surge protector.

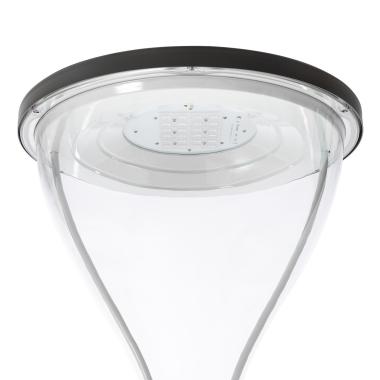

Equipped with the latest lighting technologies, this streetlight incorporates a light source with LUMILEDS SMD 5050 high-power technology, with high luminous efficiency. Lumileds is a company dedicated to the development, manufacturing, and distribution of lighting, holding over 200 patents related to LED technology.
Faetures of the XITANIUM DALI Driver

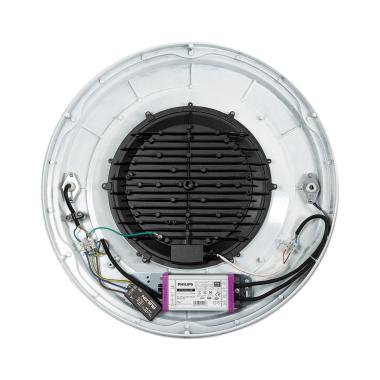

It includes a PHILIPS Xitanium Driver, this Driver has Multi-Voltage input and output. The driver with its SimpleSet feature, has a wireless interface for easy and quick configuration without the need for power and Autonomous or Fixed Time FTBD Regulation through integrated DynaDimmer 5.
The driver is responsible for converting the alternating current from the power grid into direct current suitable for making the LED chips shine. The Xitanium Driver incorporated into this luminaire is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry. This range of drivers offers unique reliability and flexibility, providing high performance and optimal LED efficiency, and is specially designed for Public Lighting. This driver has an IP67 protection rating that protects against moisture, vibrations, and temperature, ensuring maximum durability. In addition, for added safety, the luminaire has a surge protector.
The DALI (Digital Addressable Lighting Interface) system allows you to control the luminaire easily. DALI is a common interface that allows you to adjust light intensity, schedule on/off times, automate, and create timers. It is useful for saving energy and adapting to different scenarios.
* Mounting diameter: 45~75 mm
