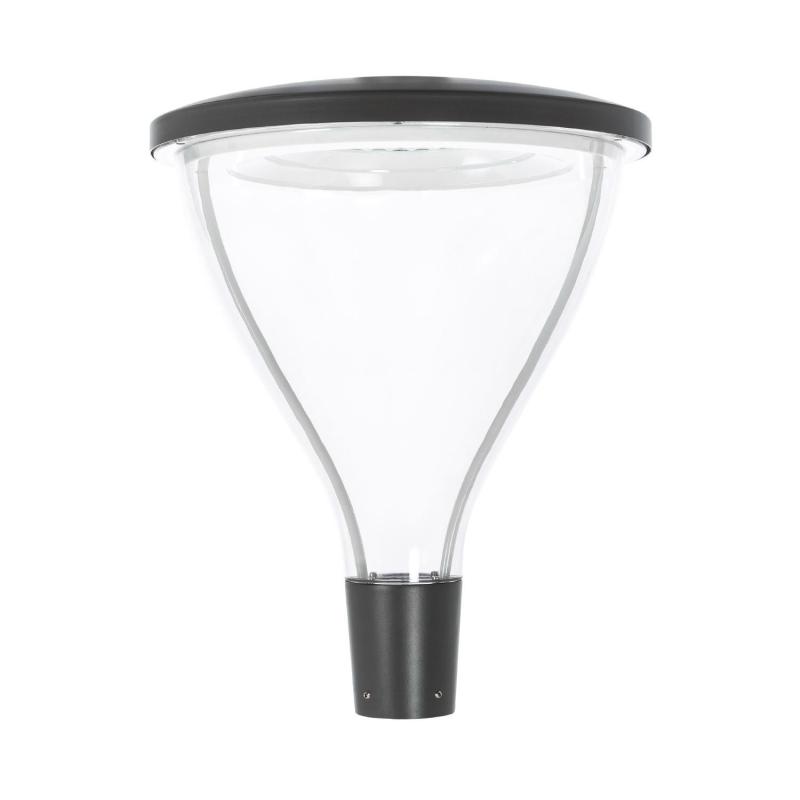

LumiStyle 40W Cool White LED Street Light - Asymmetric Beam
Ref. Lyco: E35439
Colour Temperature Cool White 4000K
Optic Asymmetrical 140ºx60º
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter565 mm
- Height720 mm
- Fixing DiameterØ76 mm
Downloads
PDF Datasheet 93098_194558 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS 5050
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage40 W
Product Information
- BrandLyco
- CertificatesCE, RoHS, CB, ENEC
- Guarantee5 years
- Product SeriesLumiStyle
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- LED Performance145 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen5400 lm
- Luminous Efficiency135 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.98
Product Data
- Product FormatStreet Lighting
- Product typeStreet Lighting Accessories
Mechanical Features
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticAsymmetrical 140ºx60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Materials and Finishes
- ColourBlack
- Fitting MaterialPC, Aluminium
Key Features
- Colour: Aluminium, Clear
- Material: Aluminium
- Guarantee: 5 years guarantee.
- IP Rating: IP66, Class I
- Dimensions:
Overall - H 720 x W 565mm
Description
The 40W LED Street Light LUMILEDS PHILIPS Xitanium LumiStyle offers instant switching and high power, making it the ideal replacement for the old discharge lamps, improving the quality of light and significantly reducing energy consumption.
Features of the 40W LED Street Light LUMILEDS PHILIPS Xitanium LumiStyle

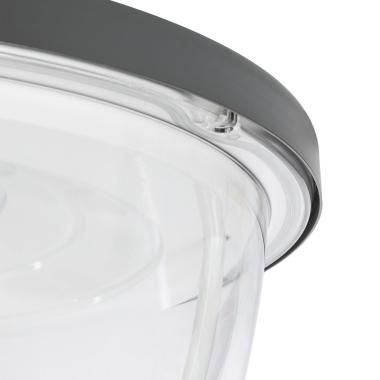

The light source is protected by tempered glass with an IP66 protection rating, making it weather resistant. The body of the luminaire has been manufactured using the injection moulding method to ensure the optimum quality of the heat sink, in high quality aluminium. It has an internal hinge that enhances its aesthetics without losing versatility. It has been given an anti-corrosive treatment, both chemical and mechanical, resistant to UV rays, which further improves its aesthetic durability. In addition, for greater safety, the luminaire is fitted with a surge protector.

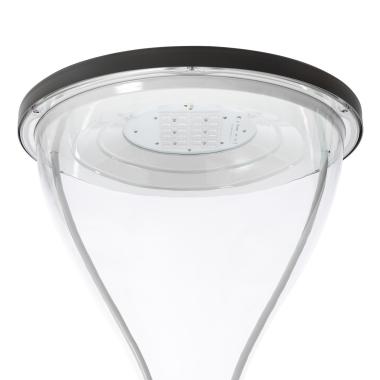

Equipped with the latest lighting technologies, this street light incorporates a high-power LUMILEDS SMD 5050 SMD technology light source with a high luminous efficiency. Lumileds is a company dedicated to the development, manufacture and distribution of lighting and also holds more than 200 patents related to LED technology.
Features of the XITANIUM 1-10V Driver

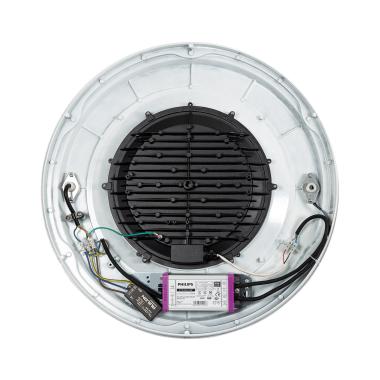

Including a PHILIPS Xitanium Driver, this Driver has a Multi-Voltage input and output. The driver with its SimpleSet feature, has a wireless interface for quick and easy setup without the need for power supply and a stand-alone or fixed time based dimming FTBD via integrated 5-step DynaDimmer.
The driver is responsible for transforming the AC mains current into DC current suitable for lighting the LED chips. The Xitanium Driver incorporated in this luminaire is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry. This range of drivers offers unique reliability and flexibility, providing high performance and optimum efficiency of the LEDs, in addition, it is specially designed for street lighting. This driver features an IP67 protection rating that protects against moisture, vibration and temperature, ensuring maximum durability. In addition, the luminaire has an overvoltage protector for greater safety.

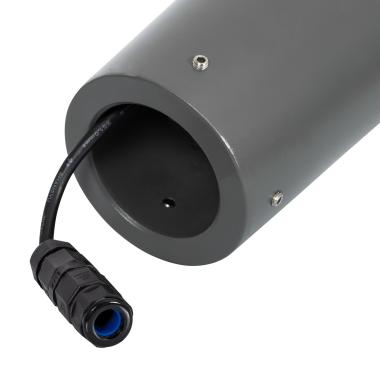

*Fixing diameter: 45~75 mm
