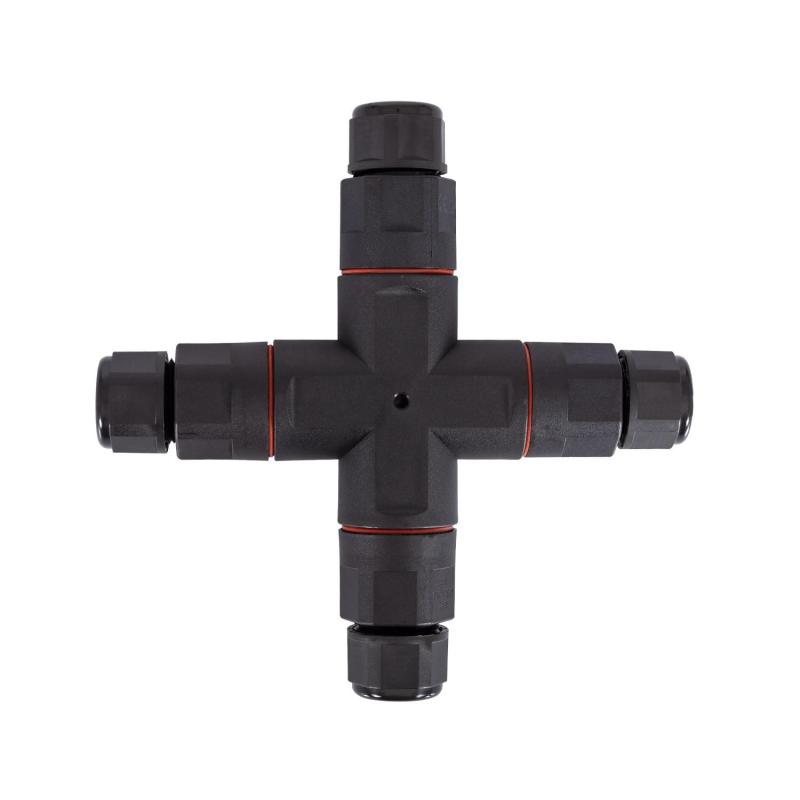

Image of Cable Connector 3 Contacts Type X with Quick Connector 0.5-2.5mm² IP68

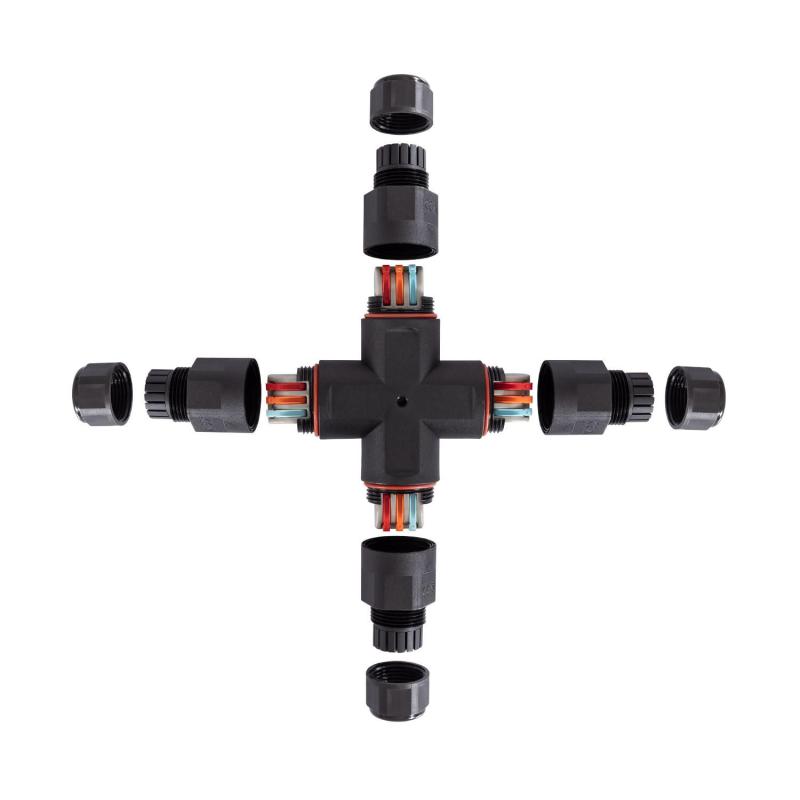

Image of Cable Connector 3 Contacts Type X with Quick Connector 0.5-2.5mm² IP68

Cable Connector 3 Contacts Type X with Quick Connector 0.5-2.5mm² IP68

Download technical datasheet

Ref. Lyco: E10193

Colour Black

    VAT not included £8.33

    £10.00

    IN STOCK - Delivered in 8 to 14 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

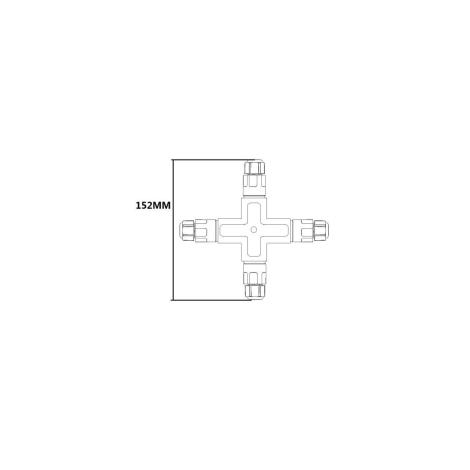

    Dimensions

    • Height152 mm
    • Width152 mm
    Scheme image

    Downloads

    • pdf file

      PDF Datasheet 92470_192176 EN

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Mechanical Features

      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP68
      • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
        Working Temperature-40 °C~+105 °C

    • Product Data

      • Product FormatConnectors
      • Product typeConnectors

    • Electrical Features

      • Current Intensity16 A
      • Maximum Voltage450 V

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years

    • Materials and Finishes

      • ColourBlack
    Outdoor Lights

    Description

    The connector is ideal for splicing or connecting electrical wiring in areas where the conditions require a high degree of watertightness and resistance to dust, humidity and water.

    It has internal terminals for the connection of 3 poles (Phase, Neutral and Earth), with admissible cable cross-sections ranging from 0.5 mm² to 2.5 mm².

    This Connector allows a maximum current of 16 A and 450 V AC.
