Diameter 106 mm
IP Rating IP20
Dimensions 52 mm x Ø106 mm
Height 52 mm
Diameter
106 mm
IP Rating
IP20
Dimensions
52 mm x Ø106 mm
Height
52 mm
Fitting Material
PC
Brand
Lyco

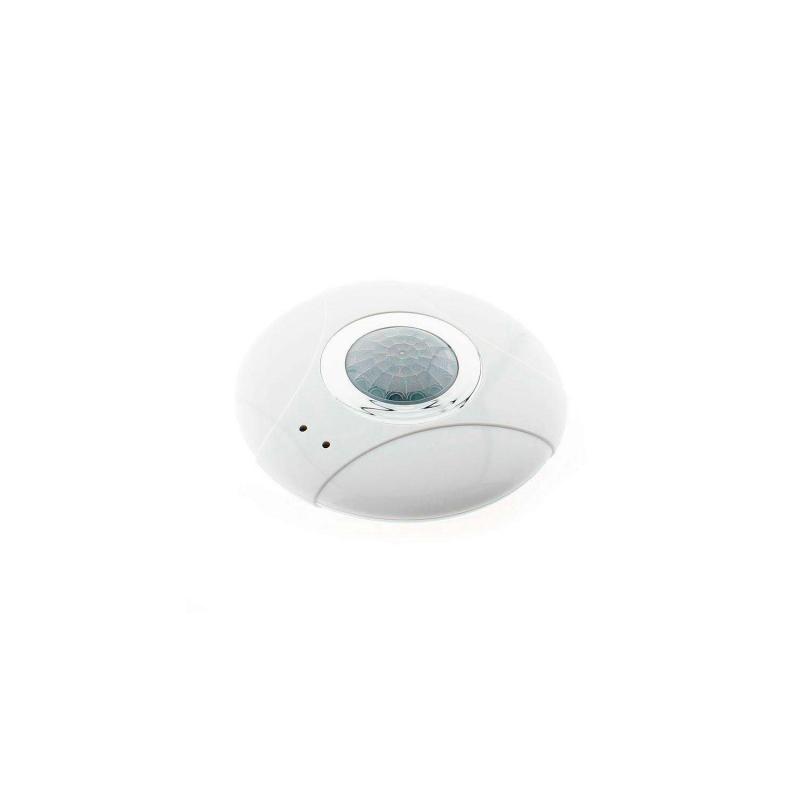

PIR Motion Sensor and Twilight DALI
Ref. Lyco: E34159
Ref. Stock: 186702
VAT not included £77.49
£92.99
Colour White
Product is unavailable
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter106 mm
- Height52 mm
Downloads
PDF Datasheet 89840_186702 EN
Certificates and Stamps
Technical Specifications
Mechanical Features

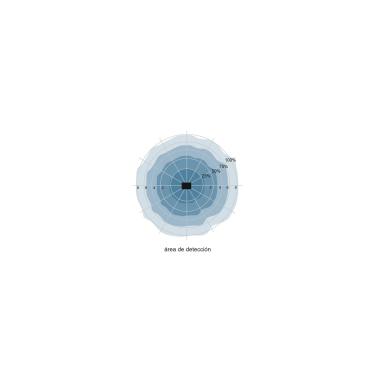

- Detection Range160 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The DALI PIR Motion and Twilight sensor is a device designed for installations using the DALI (DIGITAL ADRESABLE LIGHTINGH INTERFACE) control protocol. It is a dimming protocol defined under the European standard IEC62386. Control signals are sent and received via a power supply BUS.
This device has a PIR detector (PASSIVE INFRARED SENSOR) which sends an ON signal to the luminaires when it detects movement. It also has a twilight sensor that detects the absence of light necessary to send a signal via the DALI BUS to the luminaires.

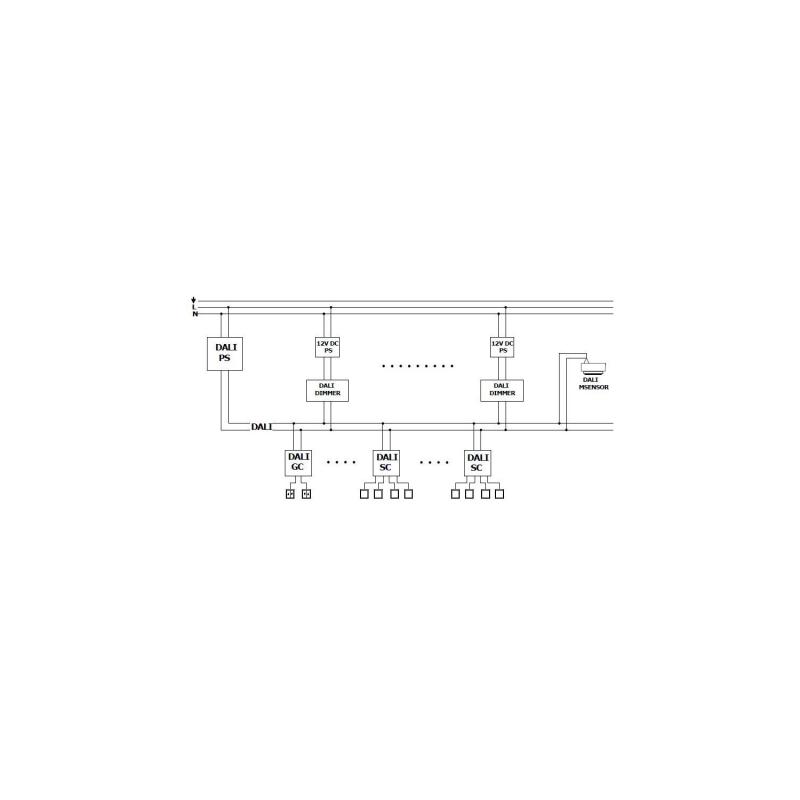

To be able to use the sensor it is essential to use DALI MASTER Controller, connected to the same BUS provided by a DALI power supply.
It is possible to select the sensor mode, either motion, twilight or both, to assign a device or group to each sensor and to set the minimum brightness for the luminaires to switch on and the switch-on time. This requires a DALI Master Netwok Host to program the device.
You can also configure the sensor to only switch on the assigned luminaires if the brightness drops below a set level and it detects movement, so that the luminaires are only switched on when they are needed, multiplying the savings achieved.
*A DALI MASTER Controller is required for use.
*A DALI Master Netwok Host is required to configure the device, otherwise it comes with factory-defined settings.
*The light threshold range for the twilight sensor is 10-650 lx.
