Voltage Range 48V DC
Dimensions 50 mm x 27 mm x 1000 mm
Width 27 mm
Height 50 mm
Voltage Range
48V DC
Dimensions
50 mm x 27 mm x 1000 mm
Width
27 mm
Height
50 mm
Fitting Material
Aluminium
Brand
Lyco

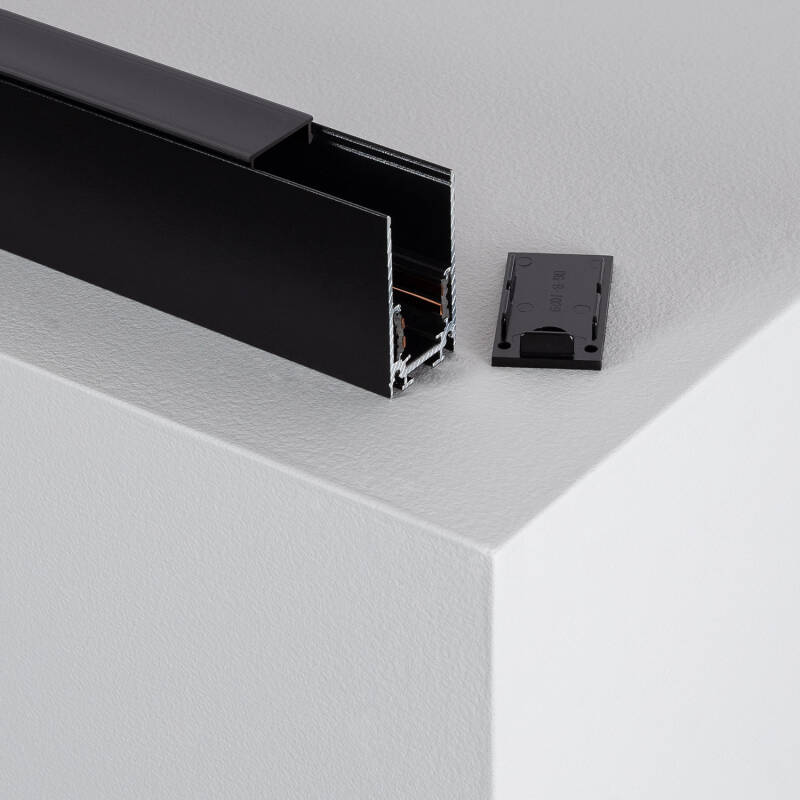

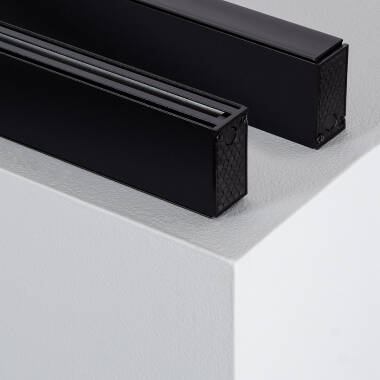

1m Suspended 48V Magnetic Track 20mm - Black
Ref. Lyco: E12843
VAT not included £18.33
£22.00
Colour Black
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

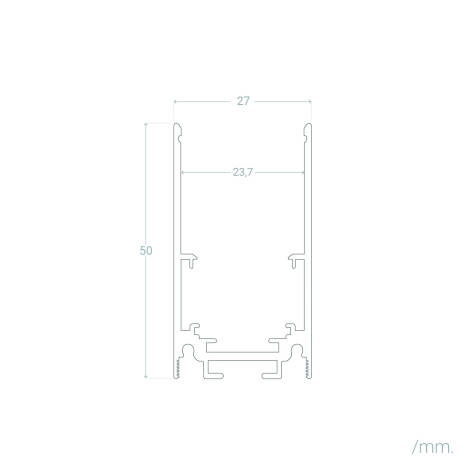

Dimensions
- Depth1000 mm
- Width27 mm
- Height50 mm
Downloads
PDF Datasheet 88674_184902 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- InstallationSurface
- LocationIndoor
- Type Of TrackMagnetic 20 mm
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesBosia
Product Data
- Product FormatTrack
- Product typeTrack Spotlight Accessories
Electrical Features
- Voltage Range48V DCVoltage level required for the product to function correctly.
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
Description
The 1m 48V Suspended Single Circuit Magnetic Track 20mm is the main component for installing the 48V Magnetic Track Spotlights. This system makes working with the lighting much easier, as the lamps can be installed and moved along the track without the need for specific tools.
Features of the 1m 48V Suspended Single Circuit Magnetic Track 20mm
The 20mm Single Phase Magnetic Track is manufactured from high quality materials. With magnetic rail systems we save on maintenance costs and get a higher quality light.

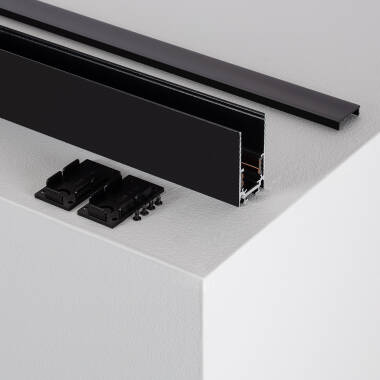

This track can be powered by a 48V 150W output power supply which is inserted into the track or by an external power supply using the External Power Supply Cable Connector. Also included is a 1 metre cover to cover the space between the spotlight and the spotlight and a suspension kit for hanging the track.
Installation of the 1m 48V Suspended Single Circuit Magnetic Track 20mm

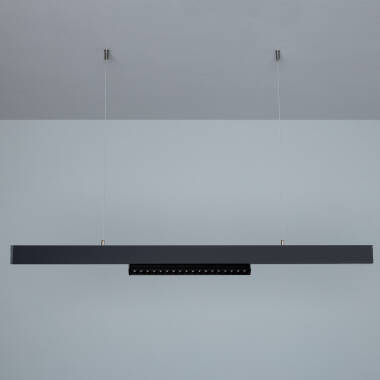

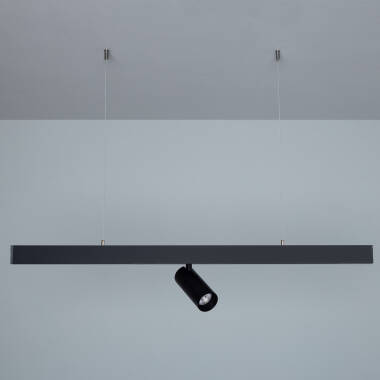

To install the Suspended Magnetic Track we will have to screw the steel cable to the ceiling. Then remove the nut from the head and insert it into the track and screw the other part of the head to join the track to the head of the steel cable.

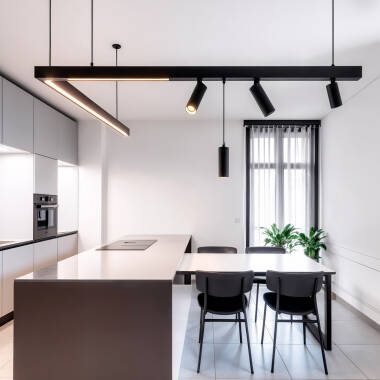

Its applications are mainly in spaces such as showrooms, premises with different atmospheres, halls, shopping centres, clothes shops, furniture shops and, in general, commercial spaces that are always being readapted according to the products to be exhibited and need a good quality of light.
* For the connection between rails, the Connecting Hose Connector or the Corner Hose Connector is required.
