Wattage 40 W
Voltage Range 220-240V AC
Type Of Dimming 1-10 V, Remote Control
Power Factor 0.9
Wattage
40 W
Voltage Range
220-240V AC
Type Of Dimming
1-10 V, Remote Control
Power Factor
0.9
IP Rating
IP20
Battery Operated
Yes
Fitting Material
PC
Brand
MI-LIGHT
Dimmable
Yes
1-10V 40W Dimmable Driver with 4 Zones RF Remote MiBoxer
Ref. Lyco: E12787
EAN 13: 8445044155811
Ref. Stock: 180534
VAT not included £31.24
£37.49
Type Of Driver 1-10V
Currently out of stock - Back in Stock Soon
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Downloads
PDF Datasheet 87415_180534 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Type Of Dimming1-10 V, Remote Control
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage40 W
Product Data
- Product FormatLED Driver
- Product typeDriver
LED Features
- Power Factor0.9
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandMI-LIGHT
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Battery Information
- Number Of Batteries2
- Type Of BatteryAAA
Materials and Finishes
- Fitting MaterialPC
Driver Information
- Driver Intensity900 mA
- Driver Tension30 V-40 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver1-10V
Description
The MiBoxer 1-10V Dimmable NO Flicker Driver 40W + 4 Zone RF Remote allows you to control the lighting of 40W LED Panels. Miboxer brand products have the capability to create groups of luminaires or scenes. They have the function of self-transmission and self-synchronization. For example, a Miboxer Driver can transmit the signal it receives from the remote to another Miboxer Driver within a range of 30 meters. This way, the devices are linked together.
Features of the MiBoxer 1-10V Dimmable NO Flicker Driver 40W + 4 Zone RF Remote
The MiBoxer 1-10V Dimmable NO Flicker Driver 40W + 4 Zone RF Remote is perfect for LED Panels. An LED driver is responsible for converting the alternating current from the mains into direct current suitable for illuminating the LED chips. It is compatible with a wide range of MiBoxer / Mi-Light products that allow for intelligent control of devices in your home or office. It can be linked with other remote models or wall dimmers.
Features of the MiBoxer 1-10V Dimmable NO Flicker Driver 40W + 4 Zone RF Remote

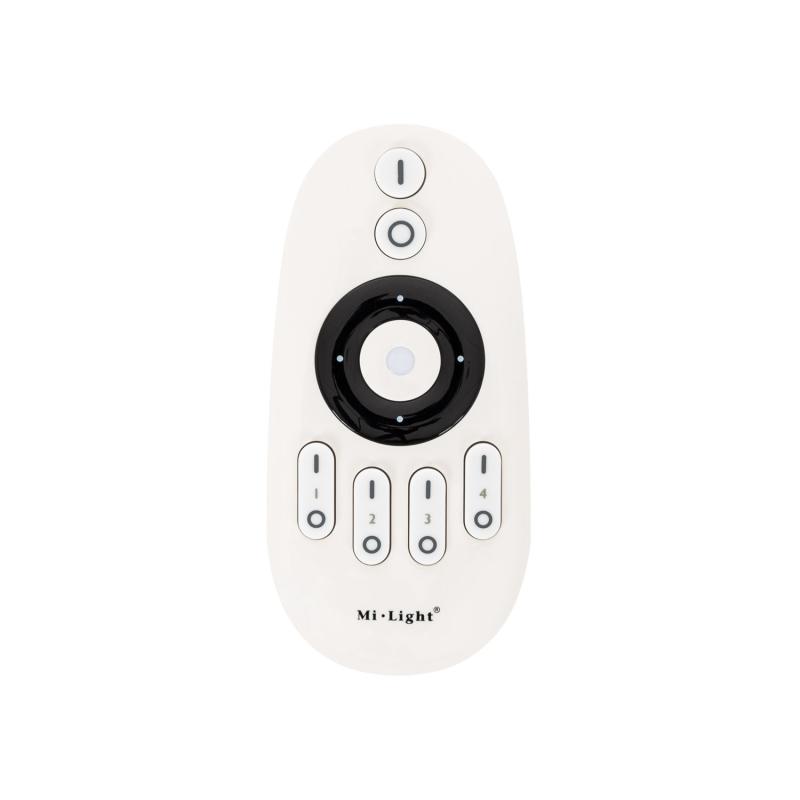

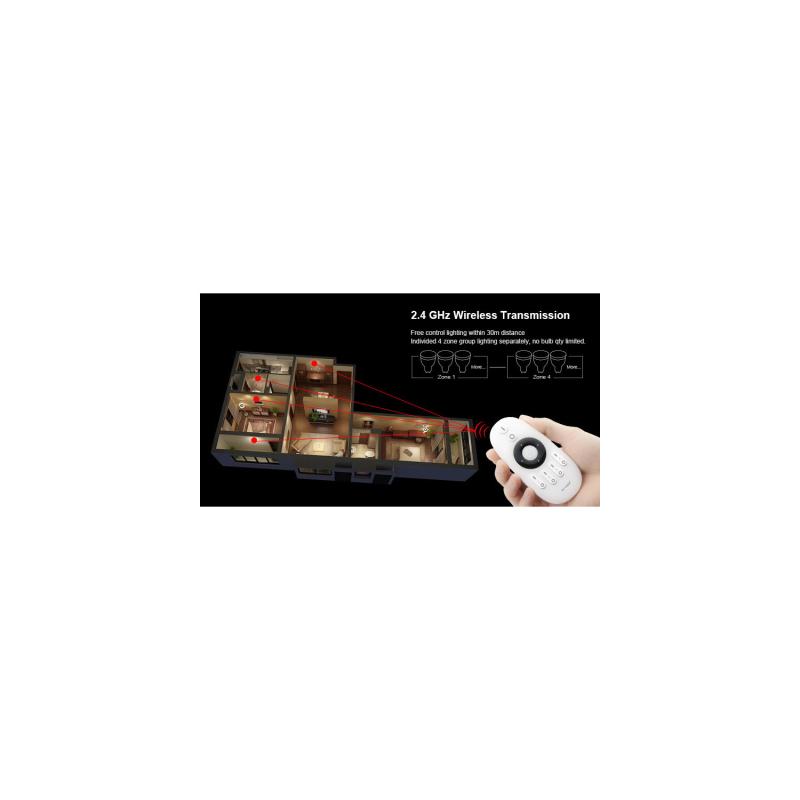

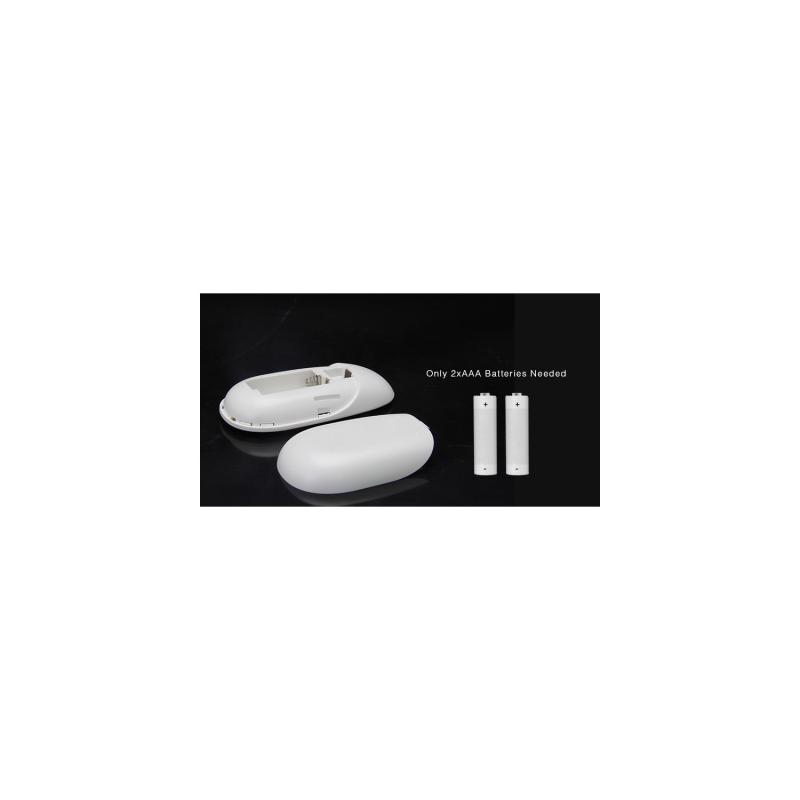

The RF Remote for LED CCT Controller 4 Zones MiBoxer FUT007 uses radiofrequency technology and is specially designed for remote control of MiBoxer / Mi-Light RF products. With the ON/OFF button, we can turn the luminaire on and off, and with the other buttons on the remote, we can adjust the brightness of up to four zones. It only requires 2 AAA batteries, not included. It allows for controlling devices within a control distance of up to 30 meters, and the number of controllable bulbs or strips is unlimited as long as they are grouped in up to 4 zones.
Transform your home into a smart home thanks to the smart control products available in our online store.

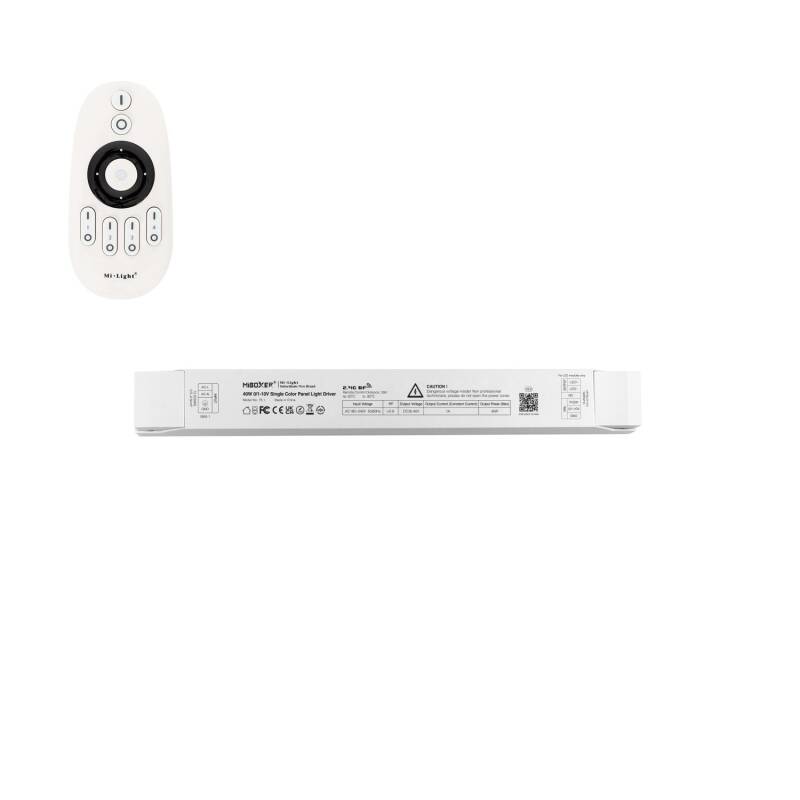

* MiBoxer Ref. PL1 220-240V 1-10V Dimmable Driver NO Flicker
* MiBoxer RF Remote Ref. FUT007
*Dimensions: Driver-279x30x21 mm / Remote-110.5x53x21 mm
