Voltage Range 12V DC
Type Of Dimming 1-10 V
IP Rating IP65
Battery Operated No
Voltage Range
12V DC
Type Of Dimming
1-10 V
IP Rating
IP65
Battery Operated
No
Dimensions
34 mm x 50 mm x 50 mm
Width
50 mm
Height
34 mm
Brand
Lyco
Dimmable
Yes
Working Temperature
-40 °C~+65 °C
Zigbee Controller for Smart UFO LED High Bays IP65 PC
Ref. Lyco: E7663
VAT not included £16.66
£19.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height34 mm
- Depth50 mm
- Width50 mm
Downloads
PDF Datasheet 86532_175152 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Working Temperature-40 °C~+65 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Electrical Features
- DimmableYes
- Type Of Dimming1-10 V
- Voltage Range12V DCVoltage level required for the product to function correctly.
Product Data
- Product FormatAccessory
- Product typeController
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
Description
The Zigbee Controller for Smart UFO LED High Bays IP65 is a device designed to complement the UFO High Bays on our website and turn it into a smart lighting that can be controlled by a smart device via WiFi connection.
Features of the Zigbee Controller for Smart UFO LED High Bays IP65
Using the Zigbee Controller and Hub Gateway that you can find on our website you can control remotely via WiFi. This device allows you to regulate the intensity of the light from 1-100% without the need for a wall dimmer, allows you to regulate the intensity of the light of the specific high bay you want or a set of high bay, allows control at the same time from a single app different devices and is compatible with voice control devices such as Amazon Echo and Google Home. In addition, from the app you can receive real-time alerts that will allow you to gain security.

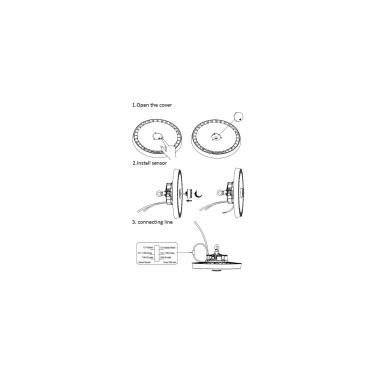

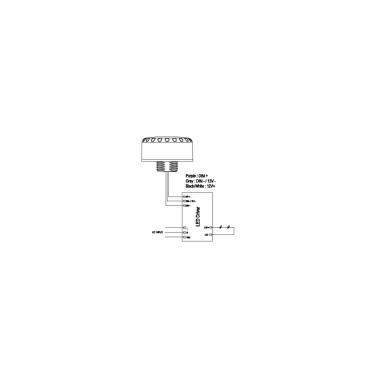

The Controller is connected to the high bay driver, with the power supply turned off, to ensure the safety of the installer. The Gateway and WiFi connection are required for its operation. The range of the Controller is up to 30 metres approximately.

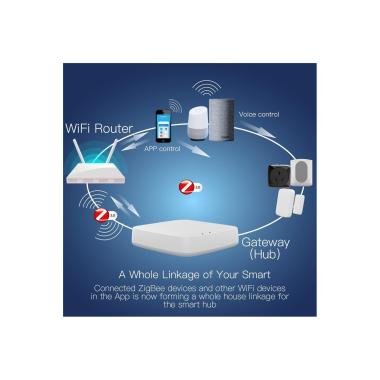

Compatible with Tuya devices (Zigbee) and voice control devices. You only have to pair the Hub Gateway using an app that you can install on your Smartphone.
