Wattage 10 W
Voltage Range 220-240V AC
Lumen 950 lm
Cut Out Dimensions 110 mm x 110 mm
Wattage
10 W
Voltage Range
220-240V AC
Lumen
950 lm
Cut Out Dimensions
110 mm x 110 mm
Number of LEDs
25
Glare Factor
UGR <17
IP Rating
IP40
Battery Operated
No
Dimensions
25 mm x 120 mm x 120 mm
Width
120 mm
Height
25 mm
IK Protection
IK05
10W CCT LED Square Slim Microprismatic LIFUD Flush Ceiling Light - White
Ref. Lyco: E4723
VAT not included £8.74
£10.49

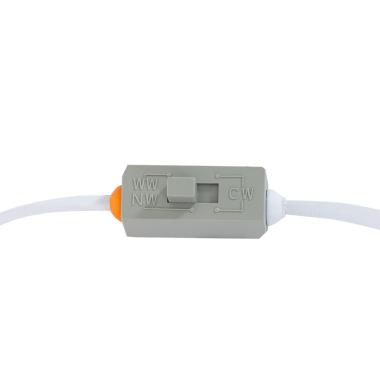

Colour Temperature No Flicker Selectable (Warm - Cool - Daylight) 2700K - 4000K - 6000K
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Cut Out Dimensions110 mm x 110 mm
- Depth120 mm
- Width120 mm
- Height25 mm
Downloads
PDF Datasheet 79024_159106 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD2835
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage10 W
Materials and Finishes
- ColourWhite
- Fitting MaterialPC, Aluminium
- IncludesDriver
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Temperature2700K - 4000K - 6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <17Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourSelectable (Warm - Cool - Daylight)
- Lumen950 lm
- Luminous Efficiency95 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs25
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP40The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSuperSlim Prisma
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Driver Information
- Driver Intensity200 mA
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description

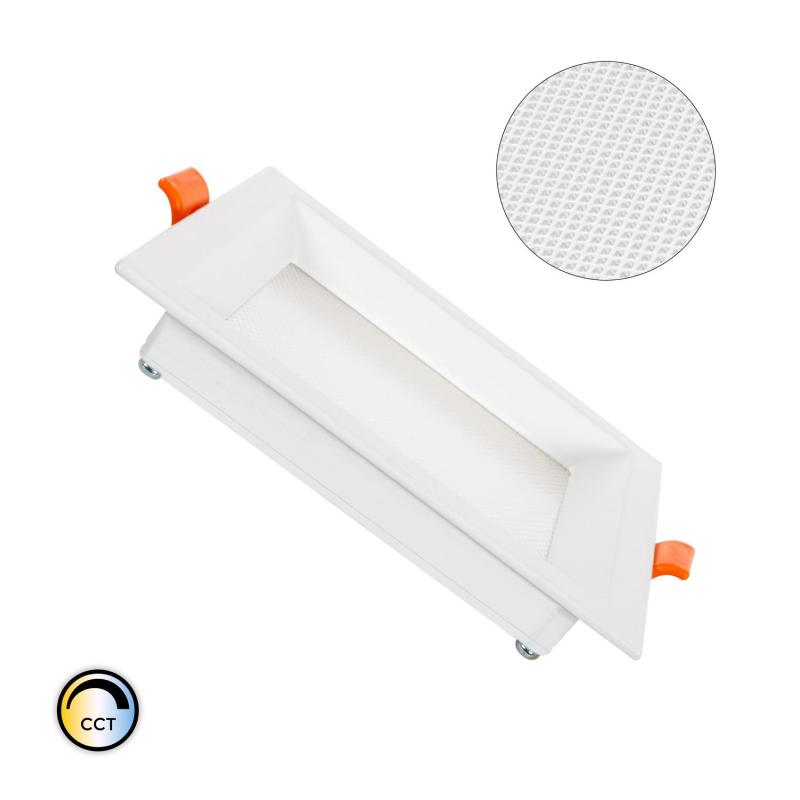

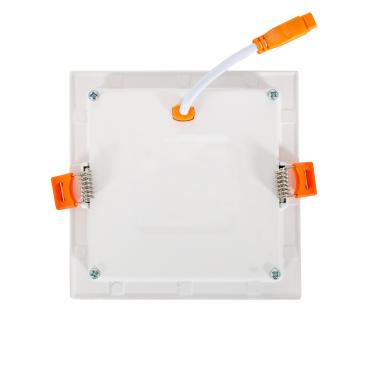

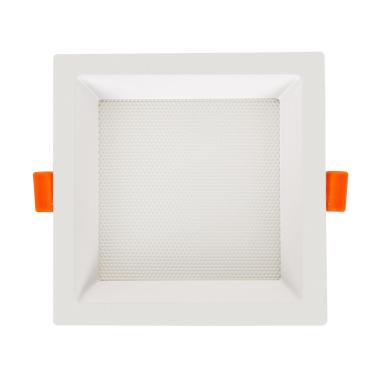

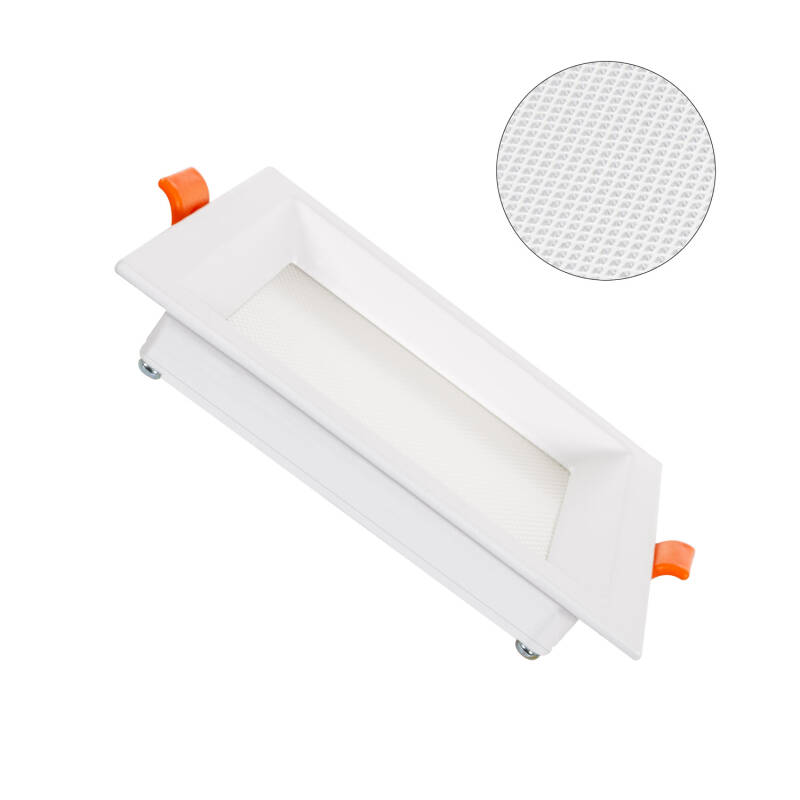

The Square Microprismatic Slim (UGR17) 10W Selectable CCT LIFUD LED Downlight 110x110mm Cut-Out stands out for its slimness, its minimalist design, and its opal diffuser, which offers a semi-diffused light, ideal for both commercial and domestic use.
Charcteristics of the Square Microprismatic Slim (UGR17) 10W Selectable CCT LIFUD LED Downlight 110x110mm Cut-Out

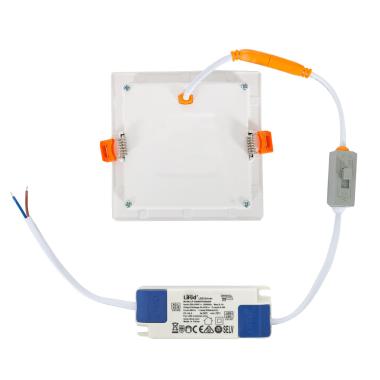

Equipped with a SMD 2835 chip, it provides a brightness of 1200 lm, distributed at an 120º angle, which makes it perfect as a general lighting source. It operates with a voltage of 220-240V AC but is prepared to withstand variations between 85-265V AC. In addition, it connects directly to the mains as it includes a LIFUD driver that is designed to adapt the mains voltage to the input voltage to the luminaire. As it is a class II LED lighting element, it does not need to be connected to the ground.
Applications of the Square Microprismatic Slim (UGR17) 10W Selectable CCT LIFUD LED Downlight 110x110mm Cut-Out

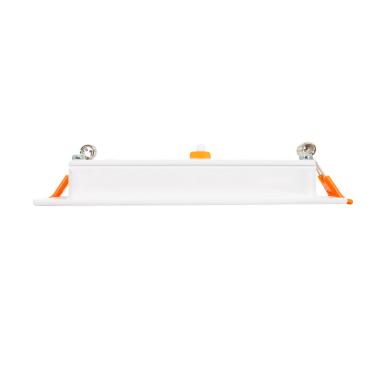

LED downlights are ideal for general lighting in enviroments that demand high performance and long periods of continuous lighting. And that is why the Square Microprismatic Slim (UGR17) 10W Selectable CCT LIFUD LED Downlight 110x110mm Cut-Out has a high quality aluminum heatsink included, which contributes to the minimal heat emission of this LED luminaire. In addition, it is very easy to install and because it is so thin it can be placed in low false ceilings where bulkier solutions could not be used. It is designed for use in interior spaces.
It is the ideal solution to replace your traditional lighting with LED technology, which means considerable savings in the electricity bill, among other multiple benefits. Sign up now for energy efficiency with Ledkia.
What does CCT (correlated color temperature) mean?
When a product is marked as CCT it means that we can change the color temperature. CCT is defined in Kelvin degrees, according to the color perception of a white LED to the human eye, we can differentiate them in 3 types of color; a warm light, a neutral light and a cold light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the color rendering capability of the LED.
