Square Slim Microprismatic UGR17 7W Selectable CCT LIFUD LED Panel 75 mm Cut-Out - No Flicker Selectable (Warm - Cool - Daylight) 2700K - 4000K - 6000K

Ref. Lyco: E4722

Colour Temperature No Flicker Selectable (Warm - Cool - Daylight) 2700K - 4000K - 6000K

VAT not included £7.08

£8.50

Energetic efficiency

Delivered in 4 to 6 weeks

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Height25 mm
  • Cut Out Dimensions75 mm x 75 mm
  • Depth90 mm
  • Width90 mm

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle120º
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature2700K - 4000K - 6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <17
    • Light ColourSelectable (Warm - Cool - Daylight)
    • Lumen665 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency95 lm/W
    • Number of LEDs28

  • Electrical Features

    • DimmableNo
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceSMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85 V - 265 V
    • Replaceable Light SourceNo
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage7 W

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC, Aluminium
    • IncludesDriver
    • Type Of LensOpaal

  • Mechanical Features

    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP40
    • LocationIndoor
    • ShapeSquare

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, TÜV
    • Guarantee3 years
    • Product SeriesSuperSlim Prisma

  • Product Data

    • Product FormatFixed Downlight
    • Product typeLED Downlight

  • Driver Information

    • Driver Intensity300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension14 V-24 V
Summer lights

Key Features

  • Colour: White, Frosted
  • Material: Aluminium
  • Wattage: 7W
  • Light Colour: CCT (2700K / 4000K / 6500K).
  • Average Life Expectancy: 30,000 hours.
  • Guarantee: 3 years guarantee.
  • Dimmable: Non-Dimmable.
  • IP Rating: IP40, Class II
  • Fire Rating: No.
  • Dimensions:
    Overall - H 25 x W 90mm
    Cut Out - Dia 75 x 75mm

Description

The Square Slim Microprismatic 7W (UGR17) Selectable CCT LIFUD LED Panel Ø 75 mm Cut-Out stands out for its slimness, its minimalist design, and its opal diffuser, which offers a semi-diffused light, ideal for both commercial and domestic use.

Features of the Square Slim Microprismatic (UGR17) 7W Selectable CCT LIFUD LED Panel Ø 75 mm Cut-Out

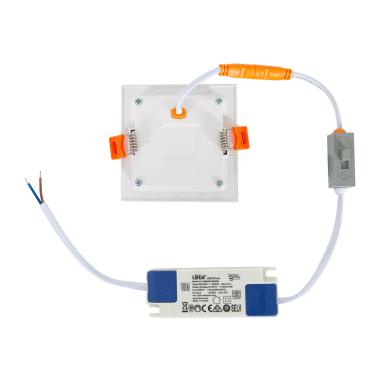

Equipped with a 2835 SMD chip, it provides a brightness of 840 lm, distributed at an 120º angle which makes it perfect as a general lighting source. It operates with a voltage of 220-240V AC but is prepared to withstand variations between 85-265V AC. In addition, it connects directly to the mains as it includes a LIFUD driver that is responsible for adapting the mains voltage to the input voltage to the luminaire. As it is a class II LED lighting element, it does not require connection to grounding.

It stands out for its low glare (URG < 17). The glare caused by lighting can have a negative influence on people, since a comfortable lighting environment is needed to help us in our tasks, a low level of URG increases the feeling of well-being and improves our productivity.

Applications of Square Slim Microprismatic (UGR17) 7W Selectable CCT LIFUD LED Panel Ø 75 mm Cut-Out

LED downlights are ideal for general lighting in environments that demand high performance and long periods of continuous lighting. And that is why 7W Square Slim Microprismatic LED Panel CCT Selectable LIFUD (UGR17) with Ø 75 mm Cut Out has a high quality aluminum heatsink included, which contributes to the minimal heat emission of this LED luminaire. In addition, it is very easy to install and because it is so thin it can be placed in low false ceilings where bulkier solutions could not be used. It is designed for use in interior spaces.

It is the ideal solution to replace your traditional lighting with a solution with LED technology, which means considerable savings in the electricity bill, among other multiple benefits. Sign up now for energy efficiency with Ledkia.

 What does CCT (correlated color temperature) mean?

When a product is marked as CCT it means that we can change the color temperature. CCT is defined in Kelvin degrees, according to the color perception of a white LED to the human eye, we can differentiate them in 3 types of color; a warm light, a neutral light and a cold light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the color rendering capability of the LED.
