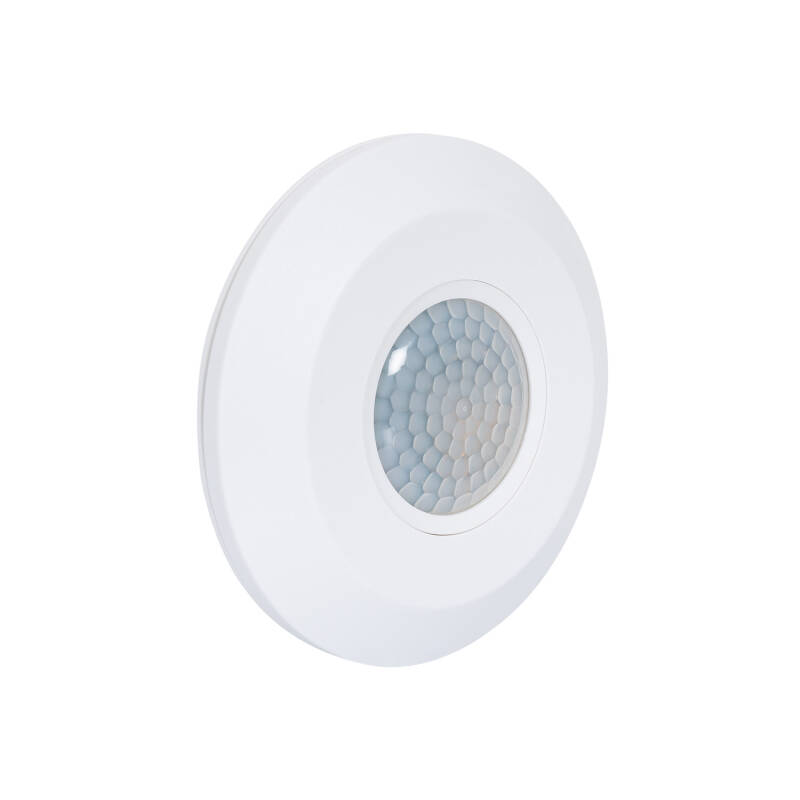

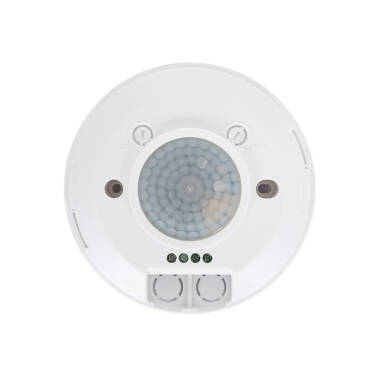

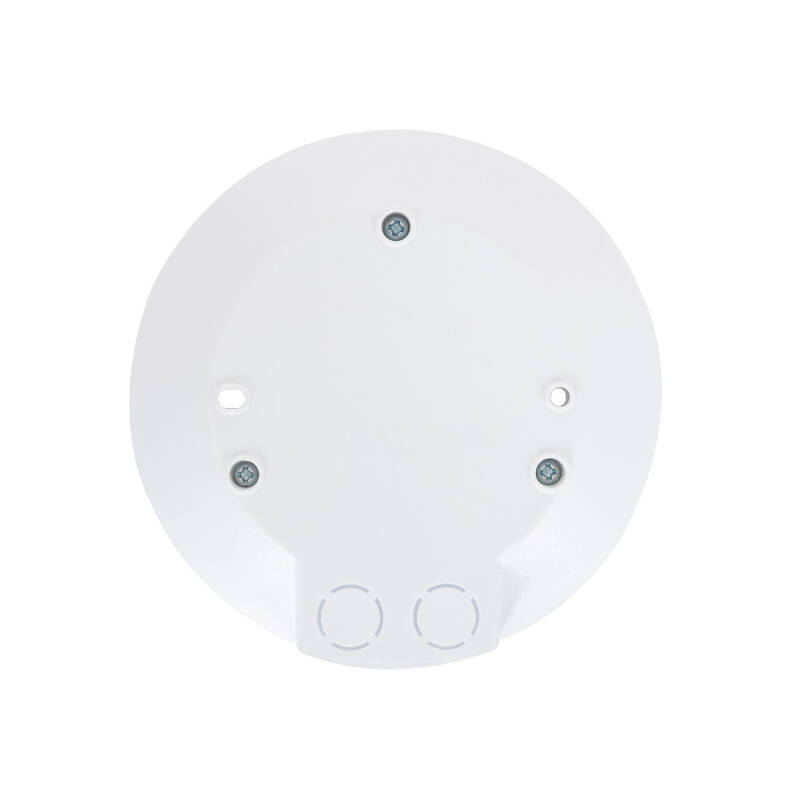

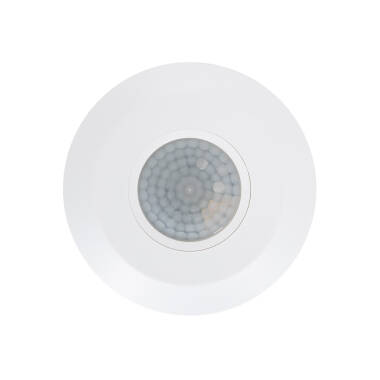

PIR Motion Sensor 360º Surface
Ref. Lyco: E1074
Colour White
VAT not included £8.33
£10.00
IN STOCK - Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

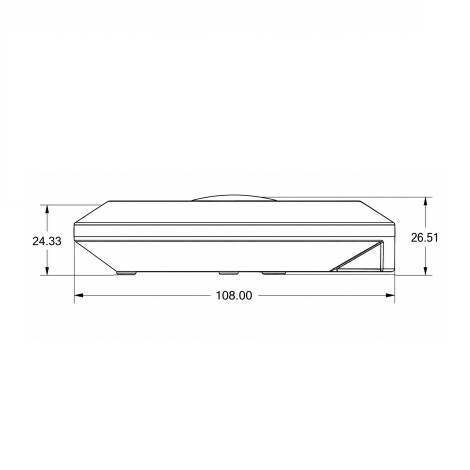

Dimensions
- Diameter108 mm
- Height26.5 mm
Downloads
PDF Datasheet 78300_158113 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage1000 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Key Features
- The 360º PIR Surface Motion Sensor is an energy-saving switch capable of detecting the presence of human movement in a 360º coverage angle
- It can control LED luminaires up to 1000W and traditional luminaires up to 2000W.
- Installation is recommended at a height of 2.2-4 m and its detection distance is approximately 6 metres at a 360º angle.
Description
The 360º PIR Surface Motion Sensor is an energy-saving switch capable of detecting the presence of human movement in a 360º coverage angle, thanks to its integrated infrared sensor. Get comfort, security, automatism, energy saving and practicality thanks to the 360º PIR Surface Motion Sensor.
Its operation is very simple: by detecting the infrared energy of human beings, i.e. temperature changes, within its detection field it automatically identifies whether it is day or night, so that you can control your luminaires in complete comfort. In addition, it can work both day and night by adjusting the position of the LUX button. You can also program the time delay to control how long it will take to switch off the luminaire once it stops detecting presence.
It can control LED luminaires up to 1000W and traditional luminaires up to 2000W. Installation is recommended at a height of 2.2-4 m and its detection distance is approximately 6 metres at a 360º angle.
