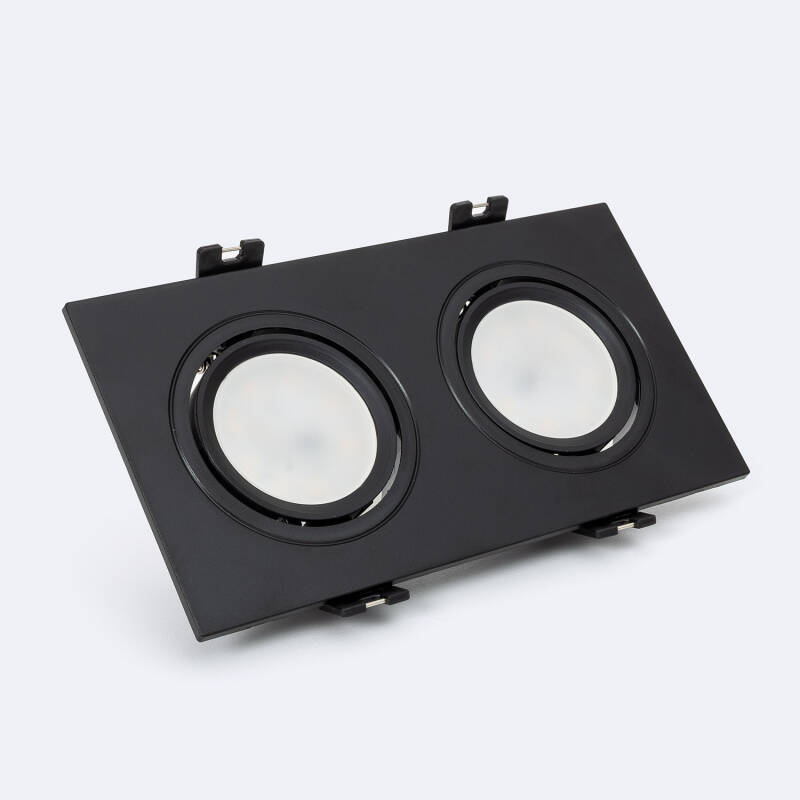

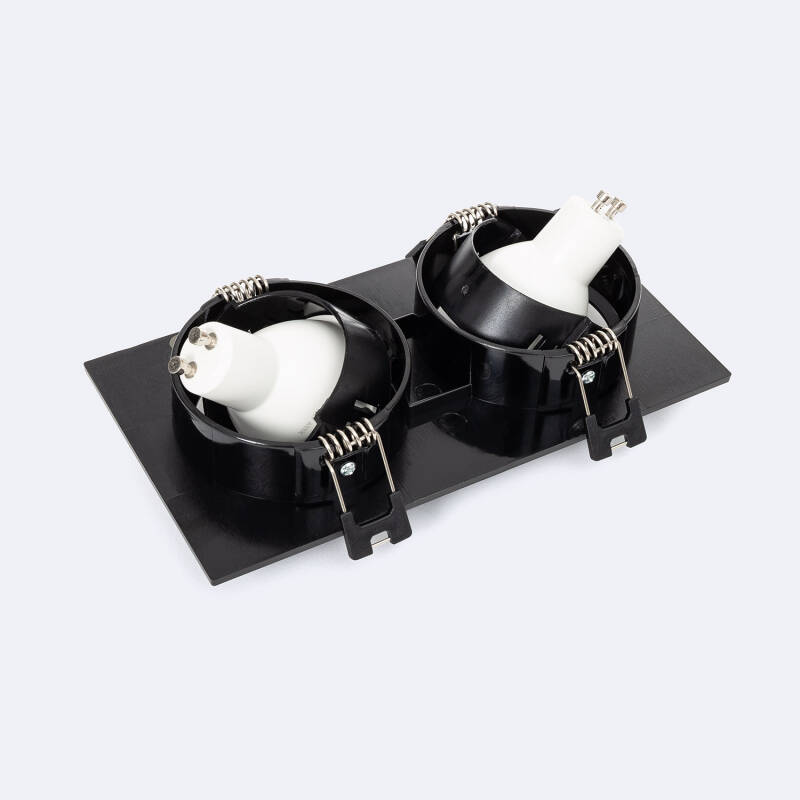

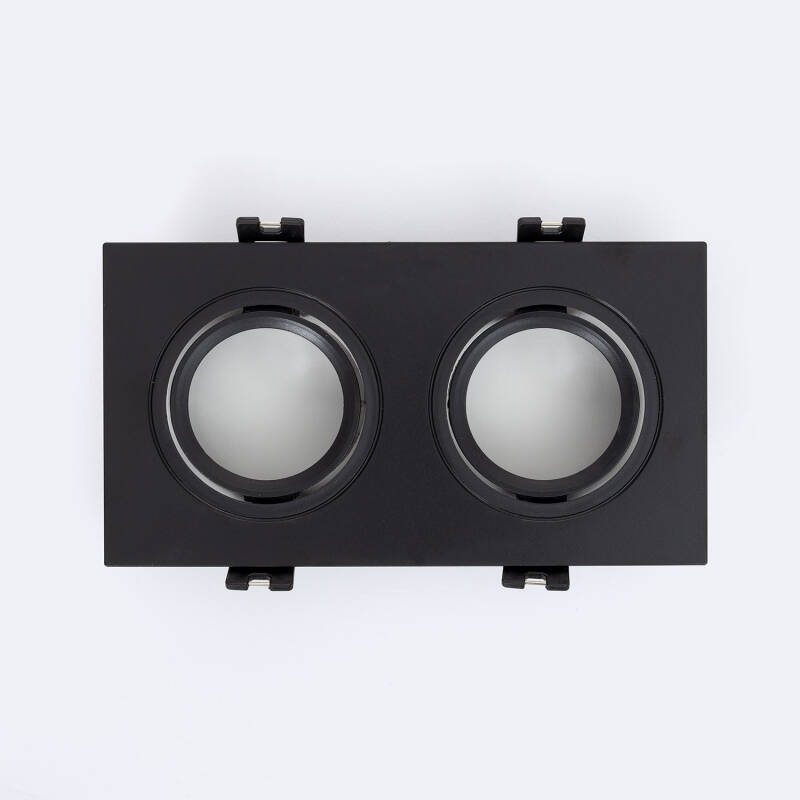

Square Tilting Downlight Cutout 75x150 mm with 6W Cool Daylight LED Bulb - GU10 - Matt Black
Ref. Lyco: E30192
Colour Temperature No Flicker Daylight 6000K
Colour Black
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

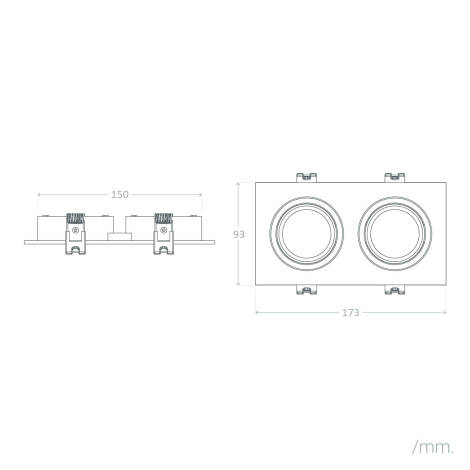

Dimensions
- Height173 mm
- Depth29 mm
- Cut Out Dimensions75 mm x 150 mm
- Width93 mm
Downloads
PDF Datasheet 78228_177489 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- Cap CodeGU10
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Recommended BulbLED GU10 Bulb
- ShapeSquare
Electrical Features
- DimmableNo
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceGU10 Bulb
- No. Of Lights2
- Nominal Voltage100 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage6 W
Materials and Finishes
- ColourBlack
- Fitting MaterialPC
- IncludesBulbs
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourDaylight
- Lumen470 lm
- Luminous Efficiency92 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.5
Product Data
- Product FormatAdjustable Downlight
- Product typeLED Downlight
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV
- Guarantee3 years
Key Features
- Colour: Black
- Material: Polycarbonate
- Wattage: 12W
- Light Colour: Cool Daylight (6500K).
- Average Life Expectancy: 40,000 hours.
- Guarantee: 3 years guarantee.
- Bulb: Max 12W LED GU10 Bulb.
- IP Rating: IP20
- Fire Rating: No.
- Dimensions:
Overall - H 173 x W 93mm
Cut Out - Dia 75 x 150mm
