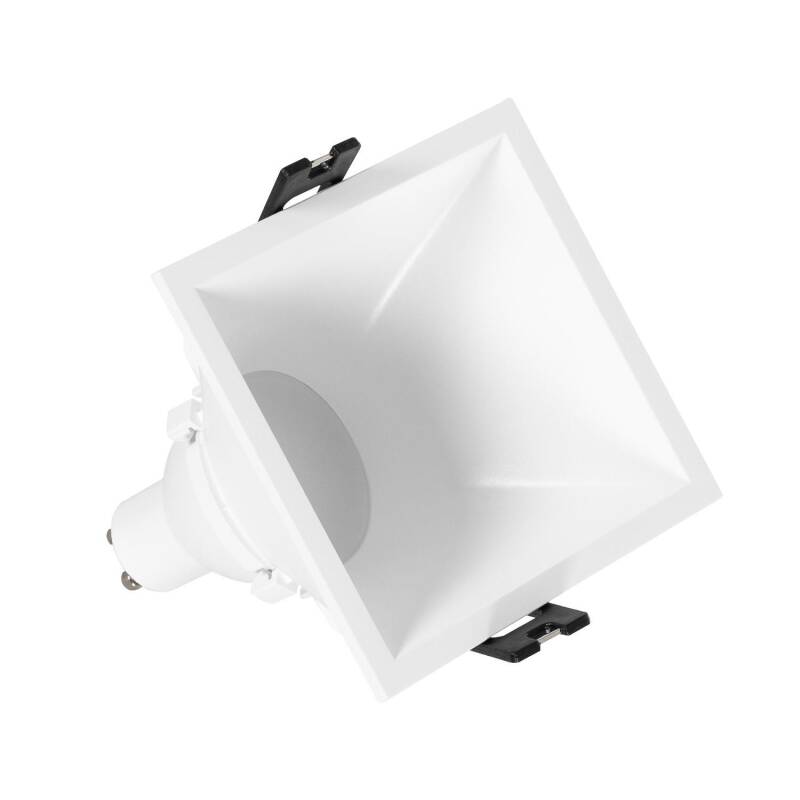

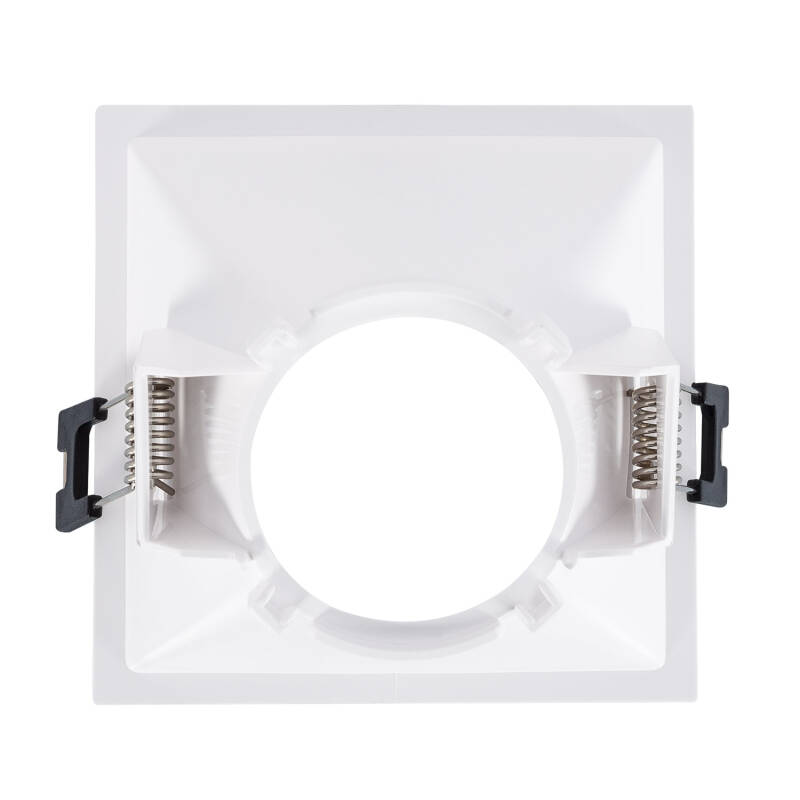

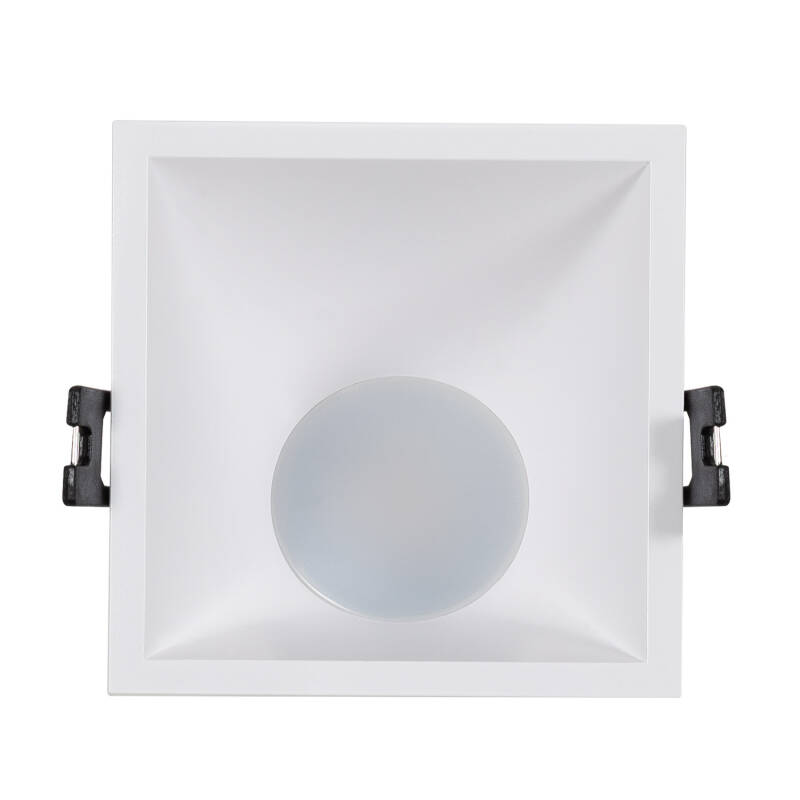

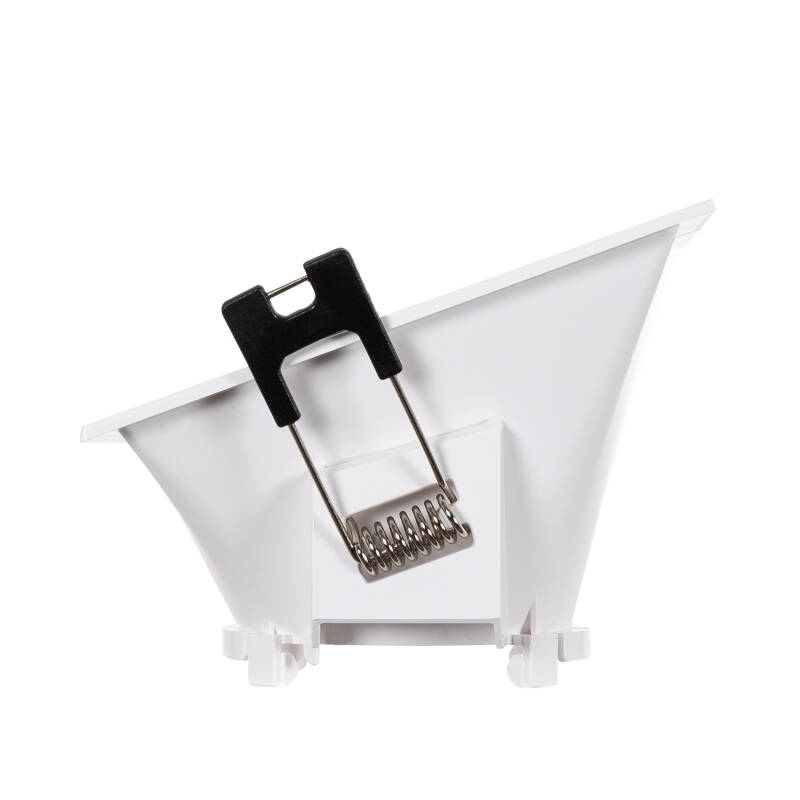

Square Low UGR Downlight 45º Cutout 85x85mm with 6W Cool Daylight LED Bulb - GU10 - White
Ref. Lyco: E30174
Colour Temperature No Flicker Daylight 6500K
Colour White
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height56 mm
- Cut Out Dimensions85 mm x 85 mm
- Depth93 mm
- Width93 mm
Downloads
PDF Datasheet 78223_177447 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- Cap CodeGU10
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Recommended BulbLED GU10 Bulb
- ShapeSquare
Electrical Features
- DimmableNo
- Frequency50-60 Hz
- Light SourceGU10 Bulb
- Nominal Voltage100 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage6 W
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
- IncludesBulbs
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Temperature6500KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourDaylight
- Lumen470 lm
- Luminous Efficiency92 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV
- Guarantee3 years
Key Features
- Colour: White
- Material: Polycarbonate
- Wattage: 12W
- Light Colour: Cool Daylight (6500K).
- Average Life Expectancy: 40,000 hours.
- Guarantee: 3 years guarantee.
- Bulb: Max 12W LED GU10 Bulb.
- IP Rating: IP20
- Fire Rating: No.
- Dimensions:
Overall - H 56 x W 93mm
Cut Out - Dia 85 x 85mm
