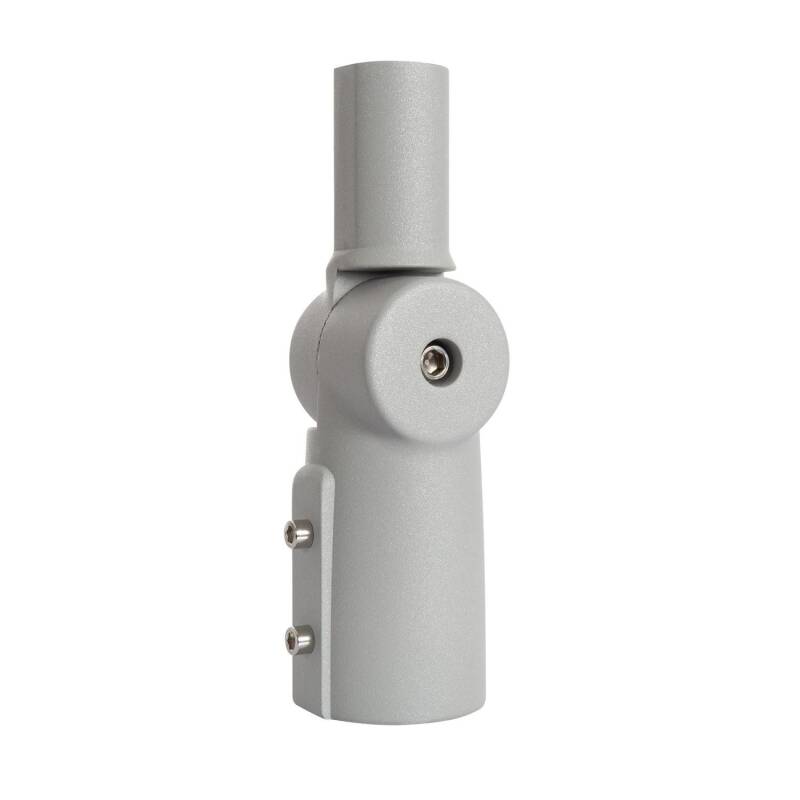

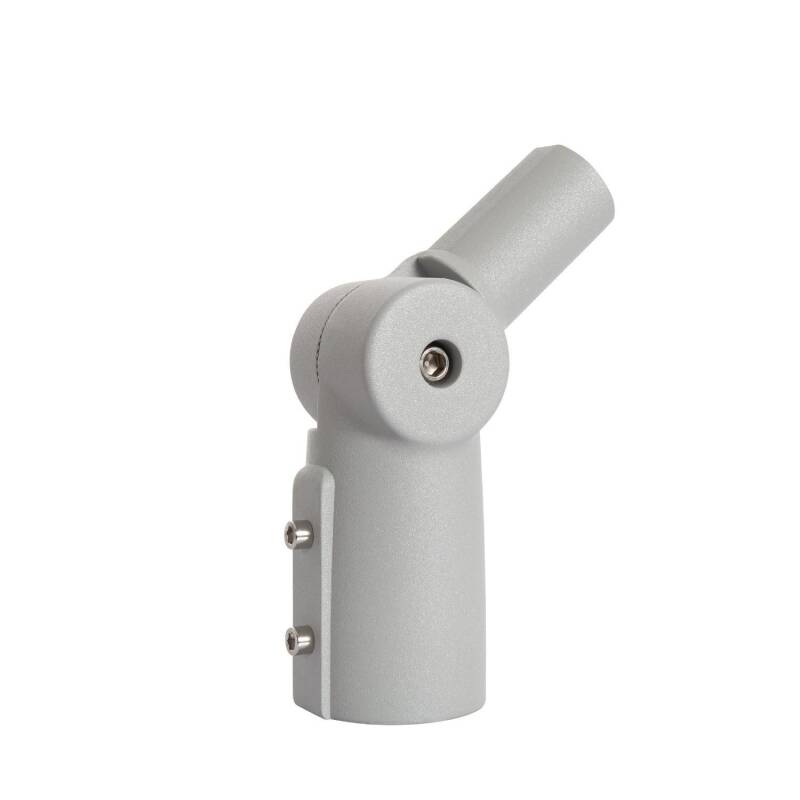

Directional Column Arm 40mm for Street Lighting Fixtures - Grey
Ref. Lyco: E1098
Colour Grey
VAT not included £19.58
£23.50
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

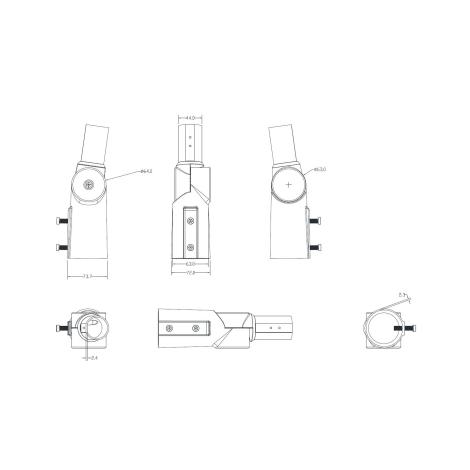

Dimensions
- Height324 mm
- Diameter44 mm
Downloads
PDF Datasheet 78019_157392 EN
Certificates and Stamps
Technical Specifications
Product Data
- Product FormatAccessory
- Product typePublic Lighting Accessories
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Mechanical Features
- LocationOutdoor
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium
Key Features
- Aluminum arm designed for the installation of a street lighting fixture on a pole or column. The larger diameter part is fixed to columns of Ø60 mm maximum. The smaller diameter part incorporates three screws to fix luminaires of Ø40 mm maximum at an angle of 0 to 90º.
- Colour: Grey
- Material: Aluminium
- Guarantee: 3 years guarantee.
- IP Rating: IP20, Class I
- Dimensions:
Overall - H 240 x W 72 x D 72mm
Description
Aluminum spigot arm designed for the installation of a street light on a pole or column. The larger diameter part is fixed to columns of Ø60 mm maximum. The smaller diameter part incorporates three screws to fix luminaires of Ø40 mm maximum at an angle of 0 to 90º.
To install Public Lighting from our Online Store, remove the screws incorporated in the Arm, insert the Light Fitting and secure it using the screws incorporated in the Fitting itself.
