Voltage Range 220-240V AC
Max Wattage 360 W
IP Rating IP20
Width 86 mm
Voltage Range
220-240V AC
Max Wattage
360 W
IP Rating
IP20
Width
86 mm
Height
86 mm
Fitting Material
PC
Brand
Lyco
TRIAC LED Dimmer Switch Wireless
Ref. Lyco: E12336
Ref. Stock: 157236
VAT not included £37.08
£44.50
Colour White
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height86 mm
- Width86 mm
Downloads
PDF Datasheet 77902_157236 EN
Instruction Manual
IM_124679
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Max Wattage360 W
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
- Not IncludedBatteries
Product Data
- Product FormatDimmer Switch
- Product typeSwitch mechanisms
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description

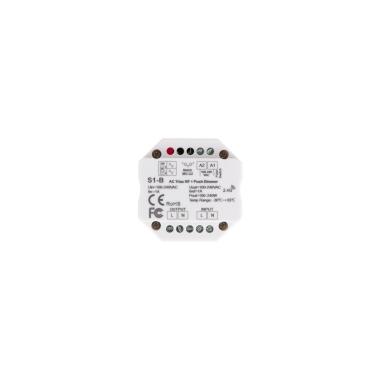

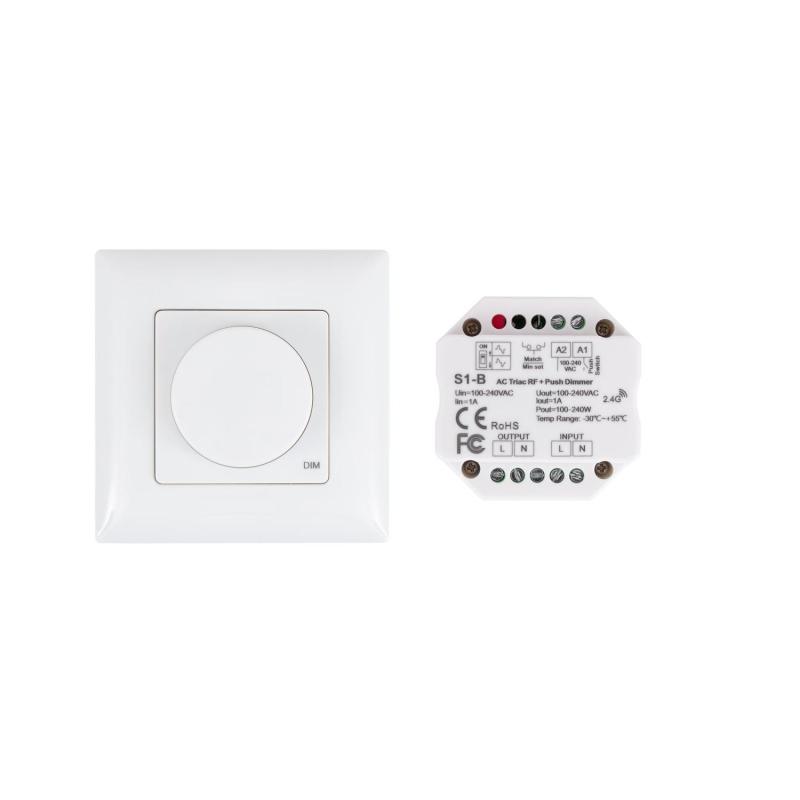

The Triac LED Dimmer Switch uses wireless technology in the 2.4 GHz band, specially developed for the control of Triac RF Dimmers without the need of any wiring. This Dimmer Switch can control several dimmers as long as they use the same RF technology.
Features of the Triac LED Dimmer Switch with wireless controller
The Triac Wireless Wireless Triac LED Dimmer Switch can be mounted anywhere, screwed to the wall or in the same universal box.

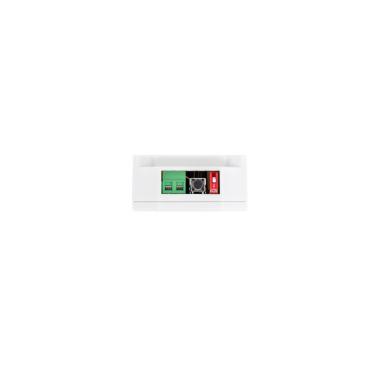

It provides two types of dimming, start and end-of-phase dimming. Both can be selected by means of the selector incorporated in the dimmer according to the requirements specified by the lamp used in each case.
The use of the Triac LED Dimmer Switch is very simple. To switch the luminaires on and off, simply press the button briefly and, when you want to dim the luminaire, keep the button pressed until the desired intensity is reached. The dimmer has a memory to store the brightness at which the luminaire was switched off.

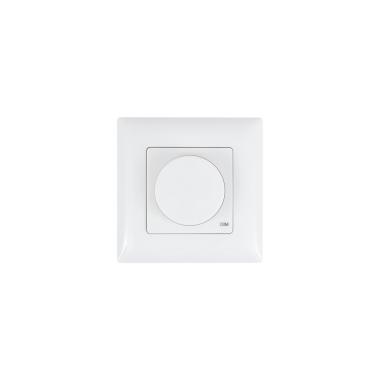

The circular sphere can be used to switch the luminaire on and off by pressing and turning to adjust the brightness.
