Wattage 7 W
Voltage Range 220-240V AC
Type Of Dimming TRIAC
Power Factor 0.9
Wattage
7 W
Voltage Range
220-240V AC
Type Of Dimming
TRIAC
Power Factor
0.9
IP Rating
IP20
Dimensions
23 mm x 85 mm x 35 mm
Width
85 mm
Height
23 mm
Fitting Material
PC
Brand
Lyco
Dimmable
Yes

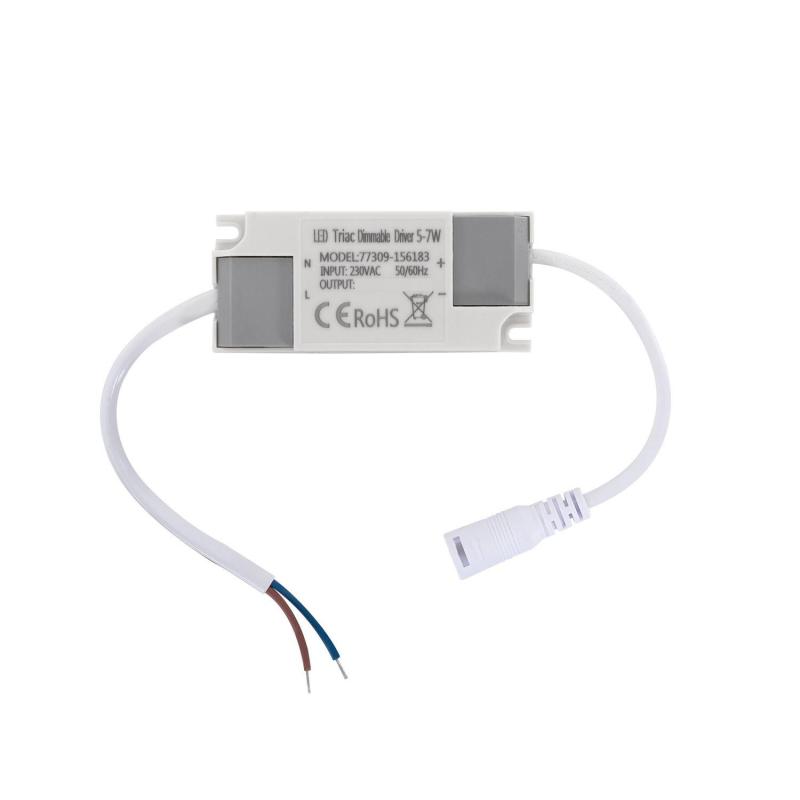

5-7W Dimmable Driver TRIAC 100-265V Output 12-24V 250mA
Ref. Lyco: E12292
VAT not included £5.83
£7.00
Wattage 7 W
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height23 mm
- Depth35 mm
- Width85 mm
Downloads
PDF Datasheet 77309_156183 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage7 W
Product Data
- Product FormatLED Driver
- Product typeDriver
LED Features
- Power Factor0.9
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV
- Guarantee3 years
Materials and Finishes
- Fitting MaterialPC
Driver Information
- Driver Intensity250 mA
- Driver Tension12 V-24 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
Universal driver specially designed for LED panels, LED downlights and LED ceiling lights because it has a jack plug. A LED driver is responsible for transforming the alternating current from the mains into direct current suitable to make the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.
Characteristics of the Driver Dimmable 5-7W 100-265V Output 12-24V TRIAC Flicker-free
This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without being damaged. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The TRIAC dimmable driver must be used in conjunction with a TRIAC LED dimmer, which allows the desired light intensity to be easily selected. Its power factor is very high, making it a very efficient driver.
