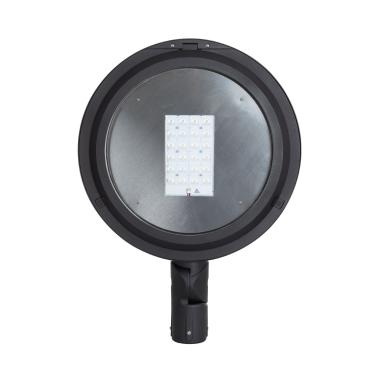

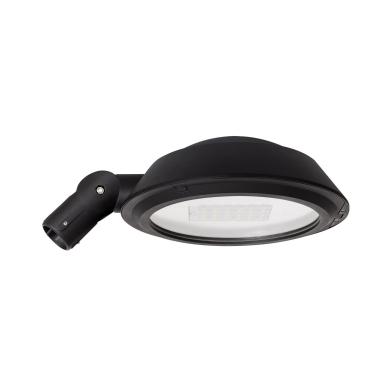

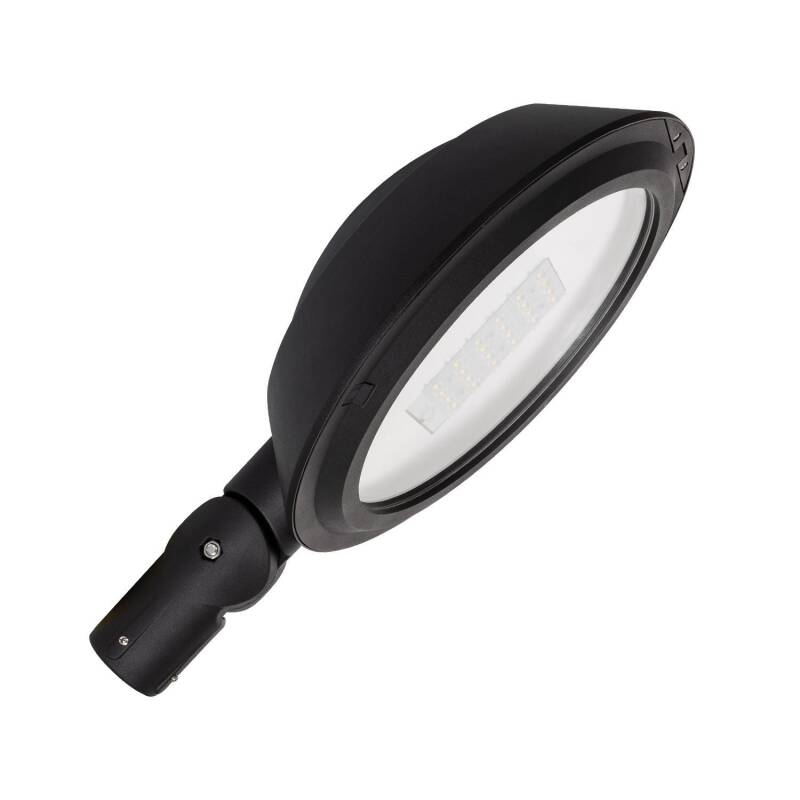

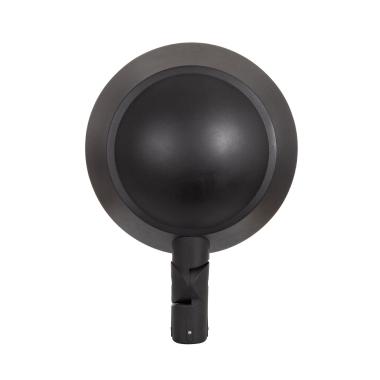

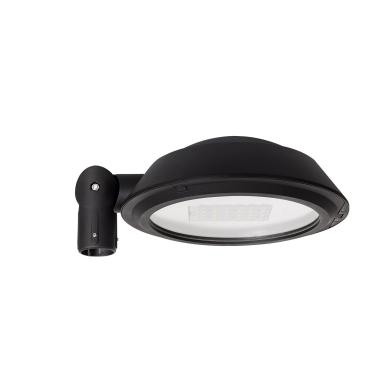

Arrow 60W LED Street Light DALI LUMILEDS PHILIPS Xitanium 160ºx60º Asymmetric - Cool White 4000K - Asymmetrical 120ºx120º
Ref. Lyco: E29668
Colour Temperature Cool White 4000K
Optic Asymmetrical 120ºx120º
VAT not included £213.33
£256.00
Delivered in 8 to 14 working days
(2)4 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width185 mm
- Height250 mm
- Diameter480 mm
- Depth580 mm
- Fixing DiameterØ60 mm
Certificates and Stamps
Technical Specifications
LED Features
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- LED Performance145 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen8100 lm
- Luminous Efficiency135 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs24
- UlorLess than 0.1%Percentage of light emitted upwards by the product when installed. A low ULOR reduces light pollution.
Mechanical Features
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticAsymmetrical 120ºx120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Electrical Features
- DimmableNo
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD5050
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage60 W
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
- Type Of LensTransparent
Product Data
- Product FormatStreet Lighting
- Product typeStreet Lighting Accessories
Product Information
- BrandLyco
- CertificatesCE, RoHS, ENEC
- Guarantee5 years
Key Features
- Colour: Aluminium, Clear
- Material: Aluminium
- Guarantee: 3 years guarantee.
- IP Rating: IP66, Class I
- Dimensions:
Overall - H 250 x W 480mm
Description
The 60W LED Street Light DALI PHILIPS Xitanium Arrow is one of the latest generation luminaires, offering instant switching on thanks to its LED technology, as well as high power. It is the ideal replacement for the old discharge lamps, improving the quality of light and significantly reducing energy consumption.
Features of the 60W LED Street Light DALI PHILIPS Xitanium Arrow
Incorporated in the LUXEON 5050 2D light source. The light source is protected by tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company that develops, manufactures and distributes lighting and holds more than 200 patents related to LED technology.
The body of the luminaire has been manufactured using the injection moulding method to ensure the optimum quality of the heatsink, in high quality aluminium. It has an internal hinge that enhances its aesthetics without losing versatility. It has been given an anti-corrosive treatment, both chemical and mechanical, resistant to UV rays, which further improves its aesthetic durability. In addition, the luminaire is fitted with a surge protector for added safety.
Features of the PHILIPS Xitanium Driver
An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for the LED chips to shine. The Xitanium Driver is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry, this driver is specially designed for Street Lighting. This range of drivers offers unique reliability and flexibility, providing high performance and optimum efficiency of the LEDs. The entire Xitanium driver range incorporates an IP65 enclosure that protects against moisture, vibration and temperature, ensuring maximum durability. In addition, it includes both over-temperature and over-voltage protection.
The DALI (Digital Addressable Lighting Interface) system allows you to have control over the luminaire in a simple way. DALI is a common interface that allows us to dim, program on/off, automate and generate timers. It is useful for saving energy, adapting to different scenarios.
* The colour code of the luminaire is RAL 9011.
* Fixing diameter: ~ Ø60mm.
*Compatible with 90º Ø60 mm Directional Column Arm for Street Lighting Luminaires.
