Wattage 30 W
Voltage Range 220-240V AC
Lumen 3600 lm
Cut Out Dimensions Ø205 mm
Wattage
30 W
Voltage Range
220-240V AC
Lumen
3600 lm
Cut Out Dimensions
Ø205 mm
Diameter
220 mm
Glare Factor
UGR <17
IP Rating
IP40
Battery Operated
No
Dimensions
50 mm x Ø220 mm
Height
50 mm
IK Protection
IK05
Luminous Efficiency
120 lm/W

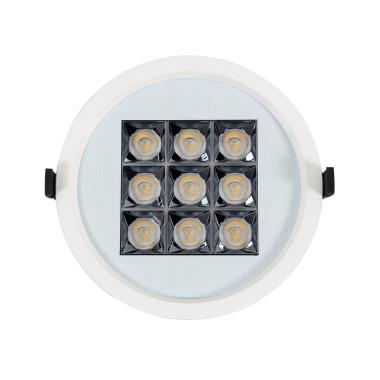

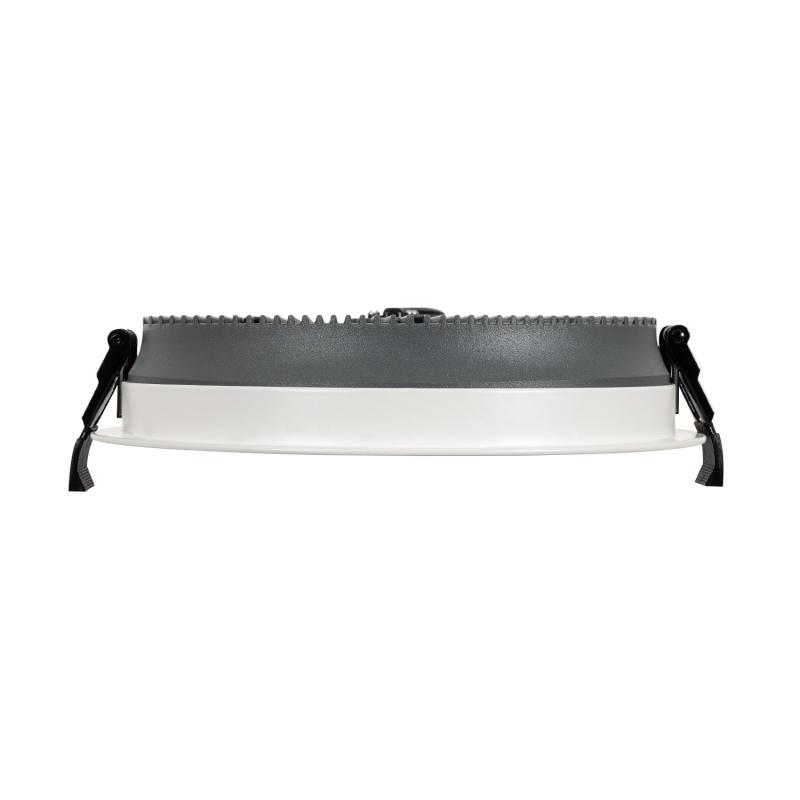

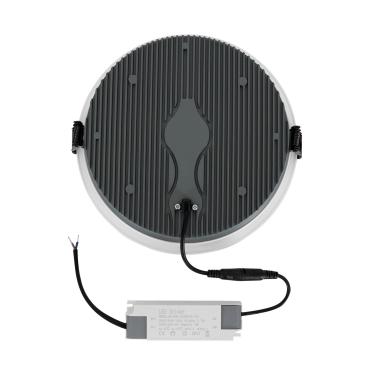

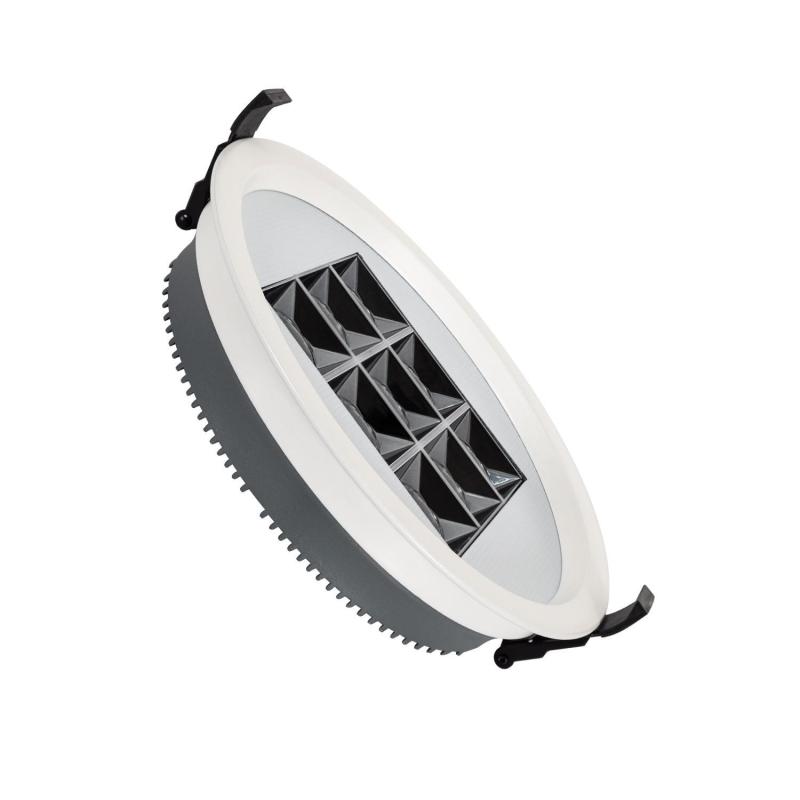

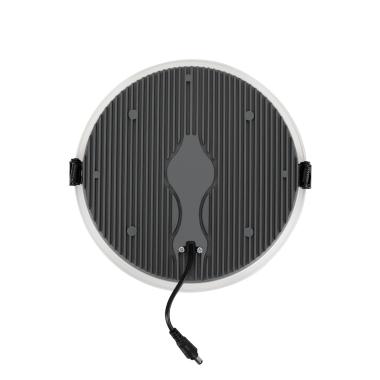

Circular 30W Cool White LED Downlight Cutout 205mm - White
Ref. Lyco: E7384
VAT not included £24.99
£29.99
Colour Temperature Cool White 4000K
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter220 mm
- Height50 mm
- Cut Out DimensionsØ205 mm
Downloads
PDF Datasheet 75467_152622 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD5730
- Nominal Voltage220 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage30 W
LED Features
- Beam Angle24ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <17Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourCool White
- Lumen3600 lm
- Luminous Efficiency120 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP40The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV, UKCA
- Guarantee5 years
- Product SeriesAero
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Materials and Finishes
- ColourWhite / Black
- Fitting MaterialPC, Aluminium
Driver Information
- Driver Intensity700 mA
- Driver Tension23 V-43 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
The White Round 30W (UGR17) LED Downlight Ø 205mm Cut-Out is an option for general and commercial lighting as it has excellent properties.
Characteristics of the White Round 30W (UGR17) LED Downlight Ø 205mm Cut-Out
Incorporates a light source with high efficiency SMD5730 technology. It has a LED performance of 120 lm/W which allows it to perfectly replace low consumption downlights of up to 50W. It enjoys a high CRI, so it faithfully reproduces colours.
The White Round 30W (UGR17) LED Downlight Ø 205mm Cut-Out has a design that allows a very homogeneous distribution of light at an opening angle of 24º. This downlight has a low glare level being only UGR 17.
It requires a Ø205 mm cutout in the surface where it will be installed. It is made of aluminium, which contributes to improving the durability of the luminaire, which is estimated at a lifespan of 30,000 working hours.
It is mainly used in spaces where activity takes place for many hours a day, such as shops, museums, shopping centres, hotels, supermarkets, restaurants, etc., where it plays an essential role as a general lighting element.
