Voltage Range 12V DC, 24V DC
Max Wattage 72 W
IP Rating IP20
Dimensions 12 mm x 10 mm x 40 mm
Voltage Range
12V DC, 24V DC
Max Wattage
72 W
IP Rating
IP20
Dimensions
12 mm x 10 mm x 40 mm
Width
10 mm
Height
12 mm
Fitting Material
PCB
Brand
Lyco

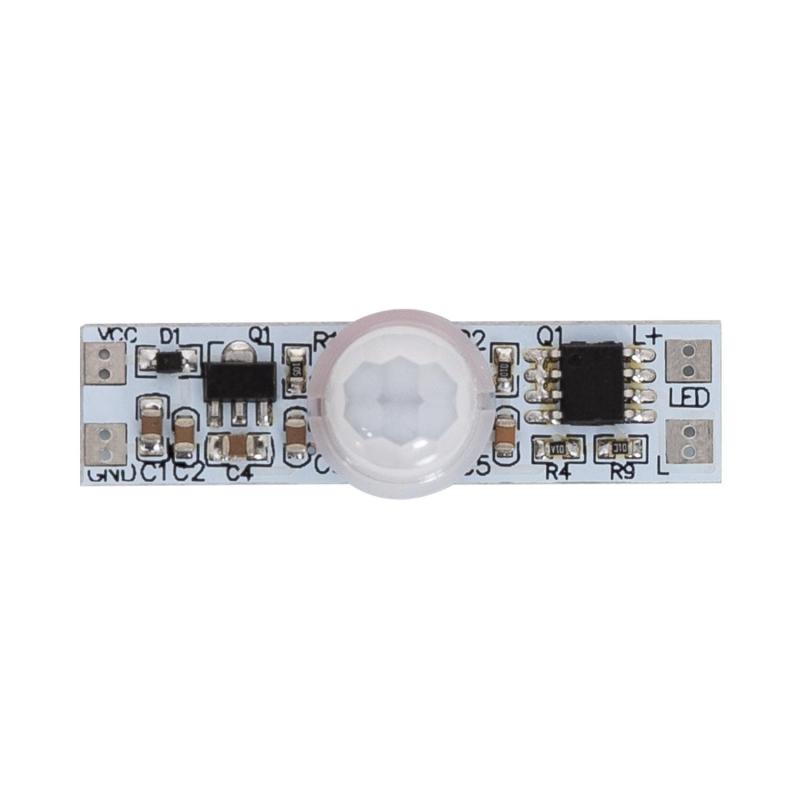

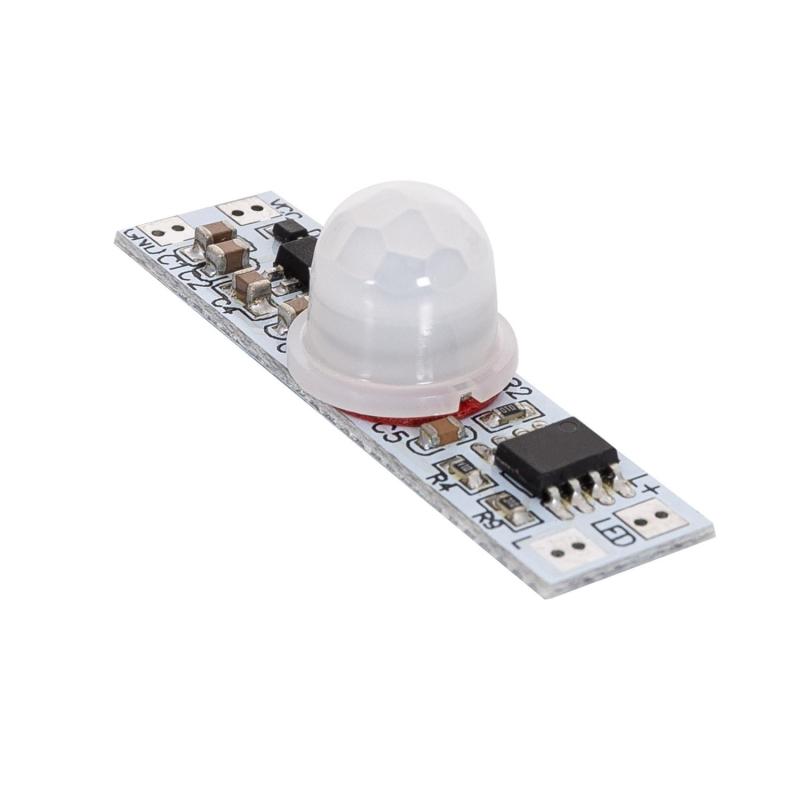

PIR Motion Sensor 180º Mini 12/24V
Ref. Lyco: E7683
VAT not included £4.99
£5.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width10 mm
- Height12 mm
- Depth40 mm
Downloads
PDF Datasheet 74066_150473 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Max Wattage72 W
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB
Description
The PIR Motion Detector Mini 180º 12/24V is a sensor that detects movement within 2 metres. It is perfect for controlling LED Strips automatically, in this way when it detects movement it activates the LED Strips and when it stops detecting movement it stays on for 1 minute and after this time it turns off the LED Strips.
* 36 W (12V) // 72W (24V)
Discover all the options to control LED Strips that we offer in our online shop.
