PIR Motion Sensor 180° Surface Waterproof IP65
Ref. Lyco: E1222
Colour White
VAT not included £15.83
£19.00
IN STOCK - Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

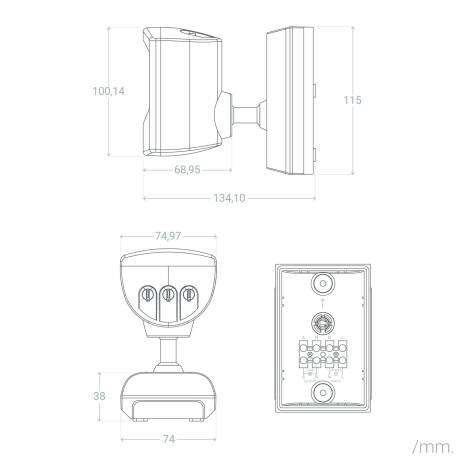

Dimensions
- Height115 mm
- Width135 mm
- Depth74 mm
Downloads
PDF Datasheet 73557_149785 EN
IM_73557
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Max Wattage1200 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range120 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Key Features
- The 120° Surface PIR Motion Sensor combines automation, convenience, security, energy saving and practical functions. It is easy to install and widely used in many applications due to its 120° coverage angle and wide detection range of 6-16 metres at a height of 1.8-2.5 metres
Description
The 120° Surface PIR Motion Sensor combines automation, convenience, security, energy saving and practical functions. It is easy to install and widely used in many applications due to its 120° coverage angle and wide detection range of 6-16 metres at a height of 1.8-2.5 metres.
It detects movement within the detection field due to temperature changes and acts immediately, both in daylight and in ambient light at night thanks to its infrared technology. In addition, it contains a function by which you can adjust the working status with different ambient light, so that it only works at night or during the day.
Easy to install, by means of a screw and easy to configure for its operation by connecting it to the current of your home at 220V. It is advisable to install it in a place where it has a wide opening angle and avoid pointing it towards reflective surfaces, heat sources or objects that can be moved by the wind.
Features of the 120º Surface PIR Motion Sensor
Detection Angle: 120°.
Detection Distance: 6-16 metres.
Minimum ON Time: 10 seconds ±3 seconds.
Maximum On Time: 15 minutes ±3 minutes.
Installation Height: 1.8 to 2.5 metres.
Detection Speed: 0.6-1.5 m/s.
Loads: 300W LED and 1200W Incandescent.
