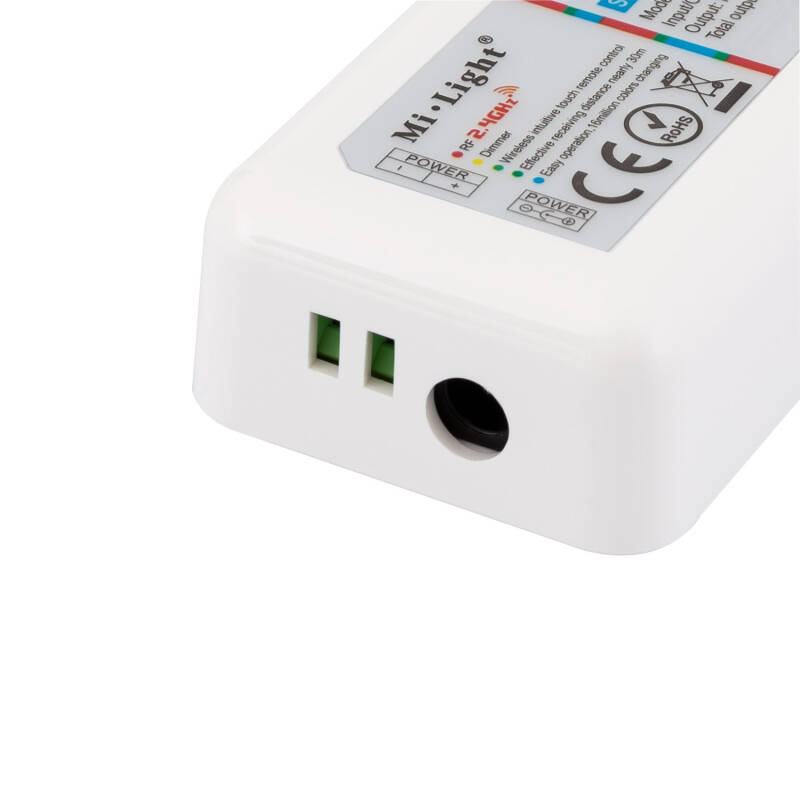

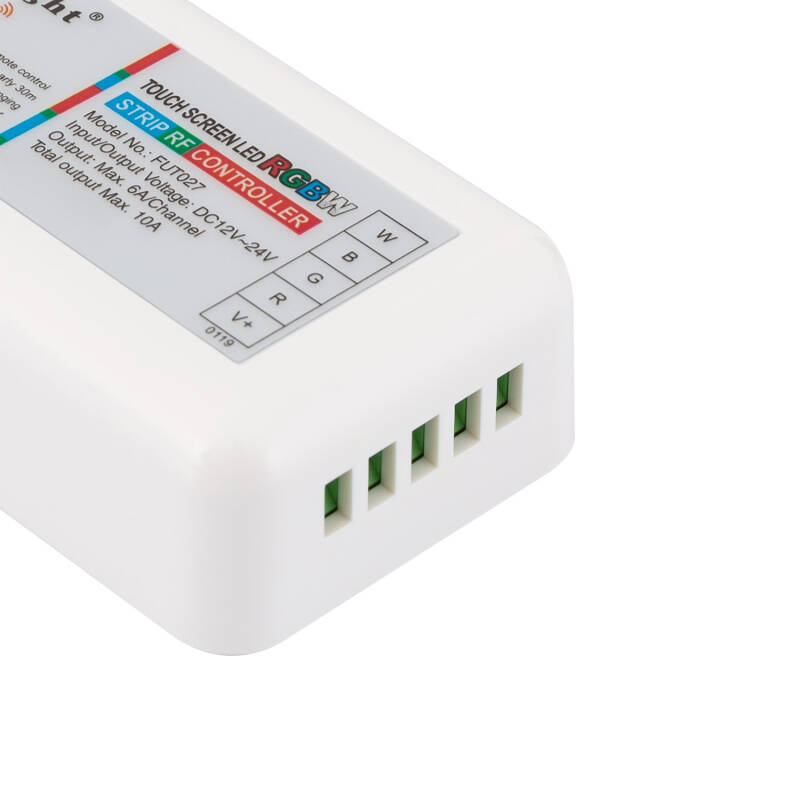

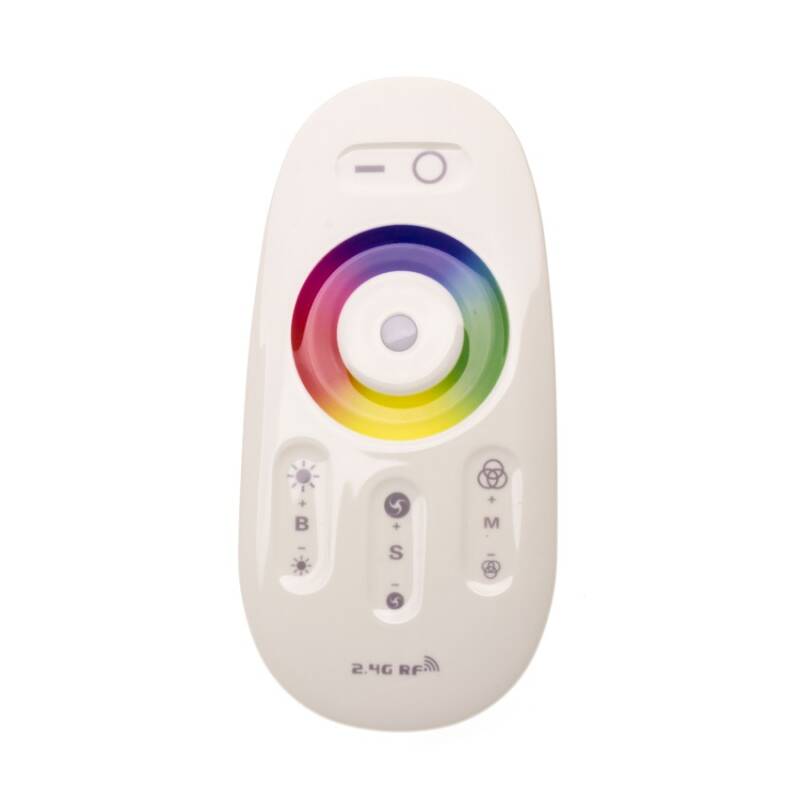

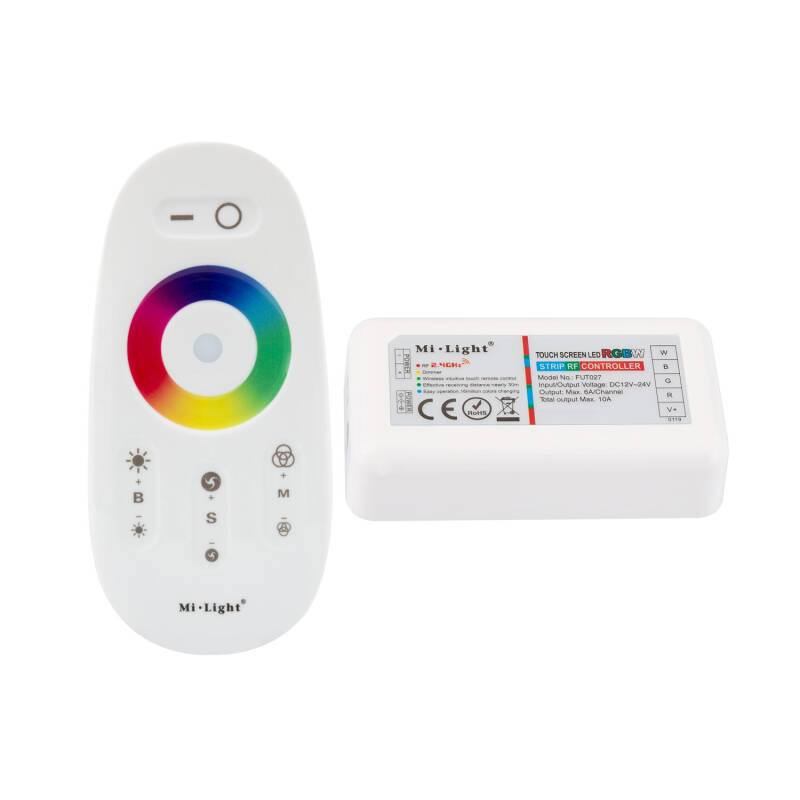

RGBW 12/24V LED Tactile Controller With RF Remote Control Dimmer
Ref. Lyco: E12009
VAT not included £19.58
£23.50
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth22 mm
- Width45 mm
- Height85 mm
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity6 A
- DimmableYes
- Max Wattage120 W
- Type Of DimmingRemote Control
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Product Data
- Product FormatDimmer Switch
- Product typeController
Materials and Finishes
- ColourWhite
- Fitting MaterialABS
- IncludesRF remote control
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This RGBW LED tactile controller with an RF remote control (Radio Frequency) has a modern and diaphanous design and 2.4 Ghz high frequency remote control technology, strong interference resistance and a 30 metre range. The colour changing functions and brightness settings are simple and practical.
Configuration of the RGBW 12/24V DC LED Strip Touch Dimmer Controller with RF Controller
The Touch Dimmer Controller is designed for this RGBW receiver, but it can also be linked to a countless number of receivers, but a single receiver can have up to 4 Controllers linked to it.
The procedure for linking one or more receivers to a single controller is as follows:
1. For a new kit, the Touch Controller Controller can only work when the Receiver is programmed. To do this, the following steps must be followed:
a. Connect the Power Supply, the LED Receiver and the LED Lighting.
b. Switch off the power supply, hold down the M+ key for 3 seconds and switch it back on again until you see the light on. The light will blink 2 times slowly when the controller and remote are set up.
*Note: In case the LED does not flash 2 times slowly, the process must be repeated.
Dimensions: Receiver (85x45x22 mm); Remote Control (120x53x20 mm).
*It supports a maximum charge of 120W and 6A per channel.
