Wattage 15 W
Voltage Range 220-240V AC
Type Of Dimming TRIAC
IP Rating IP20
Wattage
15 W
Voltage Range
220-240V AC
Type Of Dimming
TRIAC
IP Rating
IP20
Battery Operated
No
Dimensions
23 mm x 35 mm x 116 mm
Width
35 mm
Height
23 mm
Fitting Material
PC
Brand
Lyco
Dimmable
Yes

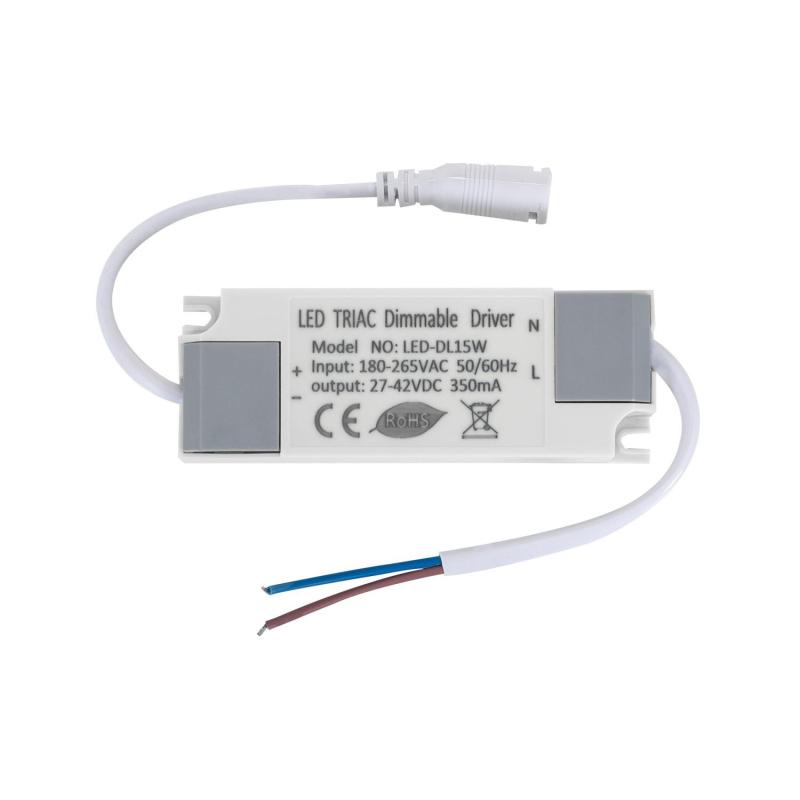

15W Dimmable Driver TRIAC 180-265V Output 27-42V 350mA
Ref. Lyco: E11954
VAT not included £7.49
£8.99
Type Of Driver TRIAC
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth116 mm
- Height23 mm
- Width35 mm
Downloads
PDF Datasheet 72649_147897 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage15 W
Product Data
- Product FormatLED Driver
- Product typeDriver
Mechanical Features
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- Fitting MaterialPC
Driver Information
- Driver Intensity350 mA
- Driver Tension27 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverTRIAC
Description
Universal driver specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it has a jack plug. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable to make the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.
Characteristics of the Dimmable Driver TRIAC 180-265V No Flicker Output 27-42V 350mA 15W
This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The dimmable TRIAC driver must be used in conjunction with a TRIAC LED dimmer, which allows the desired light intensity to be easily selected. Its power factor is very high, making it a very efficient driver.
This LIFUD Driver has Flicker-Free technology, avoiding light flickering and therefore reducing eye fatigue.
Discover our wide range of Drivers in our online lighting shop.
