Voltage Range 220-240V AC
Max Wattage 330 W
Type Of Dimming Remote Control
IP Rating IP20
Voltage Range
220-240V AC
Max Wattage
330 W
Type Of Dimming
Remote Control
IP Rating
IP20
Dimensions
27 mm x 45 mm x 175 mm
Width
45 mm
Height
27 mm
Connectivity
Wi-Fi
App
Tuya Smart
Fitting Material
PC
Brand
Lyco
Dimmable
Yes

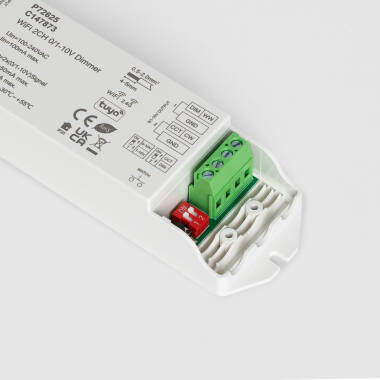

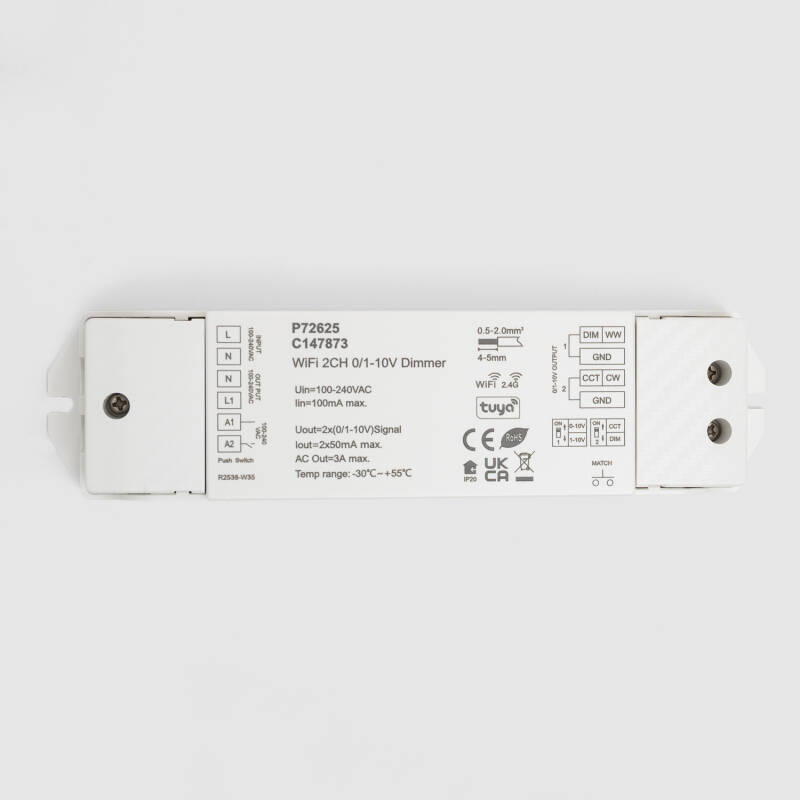

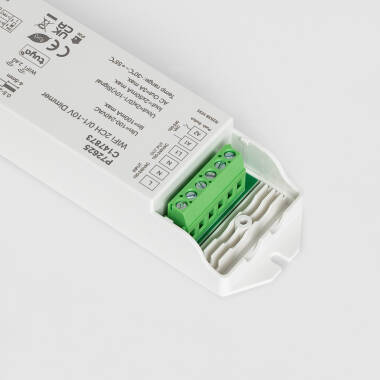

WiFi Dimmer Switch 1-10V CCT 2 Channels
Ref. Lyco: E11953
VAT not included £32.49
£38.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

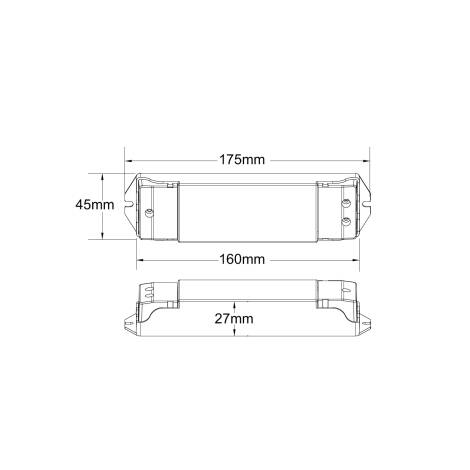

Dimensions
- Depth175 mm
- Height27 mm
- Width45 mm
Downloads
PDF Datasheet 72625_147873 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Max Wattage330 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingRemote Control
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Data
- Product FormatDimmer Switch
- Product typeWi-Fi Module
Driver Information
- AppTuya Smart
- ConnectivityWi-Fi
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
With the WiFi Dimmable Switch CCT 2 Channels 1-10V you can turn traditional switches and sockets into smart devices. This makes the device very versatile. Using this switch and the TUYA app you can create an infinite number of programmable "scenes" to turn your home or business into a smart space. A possible application would be to use it as a timer for your luminaires, thus avoiding having the old and bulky analogue timers.
Control can be done with RF controllers, 1-10V dimmers, conventional push buttons and via the TUYA app. The app is available for iOS and Android operating systems. It can be downloaded from the App Store and Google Play, respectively.
Applications of the WiFi Dimmable Switch CCT 2 Channels 1-10V
It is the ideal solution for automating, streamlining and controlling the luminaires or electrical receivers in your home, as it allows you to remotely switch on, switch off and regulate the luminaires or appliances.
The switch is very simple to use. To switch the lights on and off, simply press the button briefly and, when you want to dim the light, keep the button pressed until the desired intensity is reached. The dimmer has a memory to store the brightness at which the luminaire was switched off.
