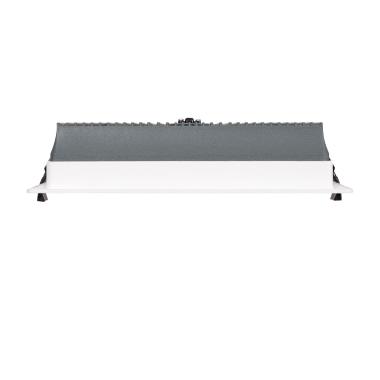

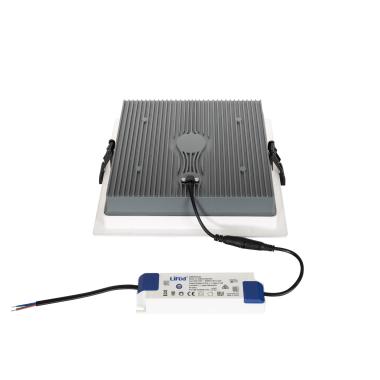

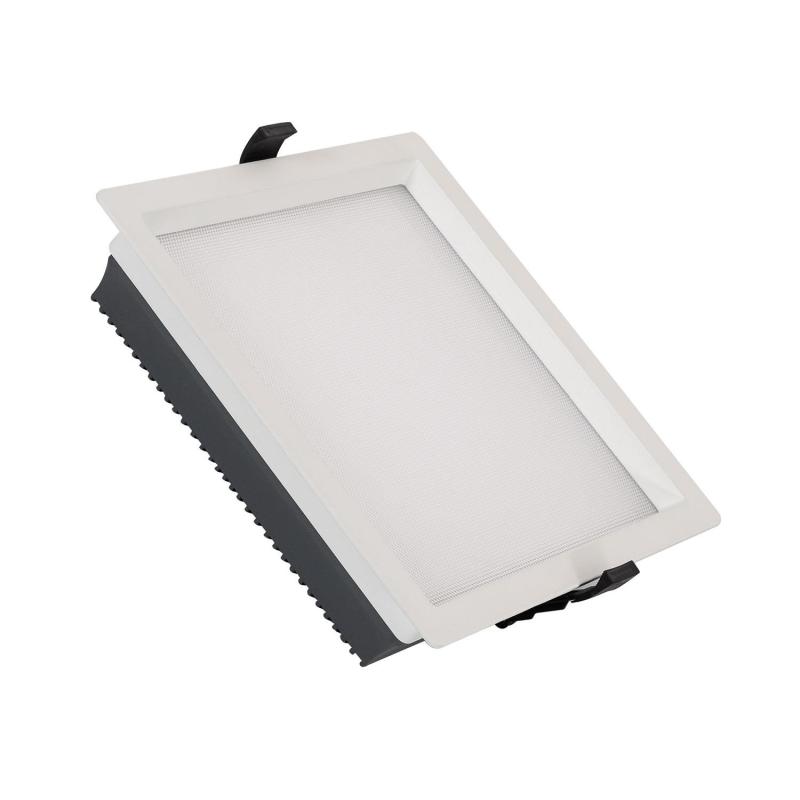

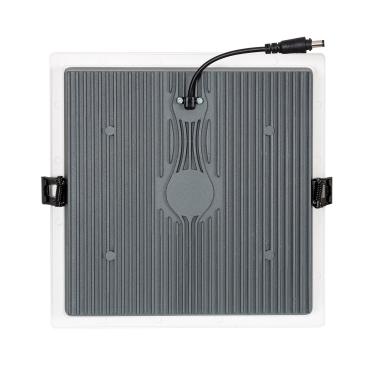

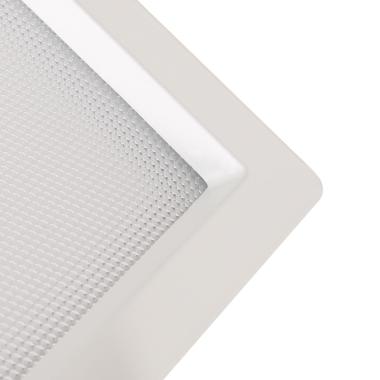

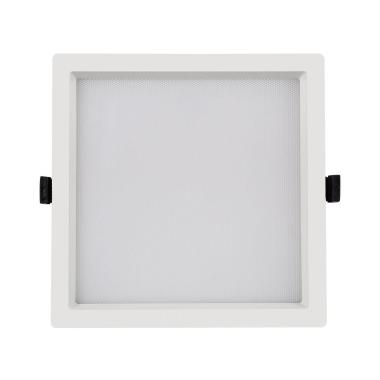

SAMSUNG New Aero Slim Square Microprismatic 30W Cool White LED Downlight Cutout 210x210mm with LIFUD Driver - White

Ref. Lyco: E1682

Ref. Stock: 147761

VAT not included £27.70

£33.24

Energetic efficiency
Product information sheet

Colour Temperature Cool White 4000K

IN STOCK - Delivered in 1 to 2 working days

Buy more, pay less

  • +6 Units: £33.24 / unit

  • For more amounts

    30 Day Credit Terms
    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Cut Out Dimensions210 mm x 210 mm
  • Depth225 mm
  • Width225 mm
  • Height55 mm

Downloads

  • pdf file

    PDF Datasheet 72525_147761 EN

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • DimmableNo
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceSAMSUNG SMD2835
    • Replaceable Light SourceYes
    • Voltage Range220-240V AC
    • Wattage30 W
  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC, Aluminium
    • Type Of LensOpaal
  • LED Features

    • Beam Angle110º
    • Colour Rendering Index85
    • Colour Temperature4000K
    • Glare FactorUGR <17
    • LED Performance130 lm/W
    • Light ColourCool White
    • Lumen3600 lm
    • Luminous Efficiency120 lm/W
    • Power Factor0.95
  • Mechanical Features

    • DirectionalNo
    • InstallationRecessed
    • IP RatingIP44
    • LocationIndoor
    • ShapeSquare
  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, TÜV
    • Guarantee5 years
    • Product SeriesAero
  • Product Data

    • Product FormatFixed Downlight
    • Product typeLED Downlight
  • Driver Information

    • Driver Intensity750 mA
    • Driver Tension25 V-40 V
Outdoor Lights

Description

The 30W SAMSUNG New Aero Slim LIFUD Square LED Downlight 130 lm/W Microprismatic (UGR17) with 210x210 mm Cut-Out is an excellent choice for the general lighting of commercial spaces with outstanding properties.

Characteristics of 30W SAMSUNG New Aero Slim LIFUD Square LED Downlight 130 lm/W Microprismatic (UGR17) with 210x210 mm Cut-Out

The 30W SAMSUNG New Aero Slim LIFUD Square LED Downlight 130 lm/W Microprismatic (UGR17) with 210x210 mm Cut-Out has a design that allows homogeneous light distribution with an angular aperture of 110º. It features an frosted diffuser that helps to reduce glare. They have an LED efficiency of 130 lm/W and a high CRI, meaning they render colours accurately.

It supports multi-voltage 220-240V AC and requires a 210x210 mm cut-out on the surface where it will be installed. It is made of aluminum, which improves the durability of the luminaire as well as its lifepan, estimated at 30,000 working hours.

It is mainly used in spaces where there is a high volume of daily activity  such as stores, museums, shopping malls, hotels, supermarkets, restaurants, etc., where it plays a key role as a general lighting element.
