Wattage 15 W
Voltage Range 220-240V AC
Lumen 1875 lm
Cut Out Dimensions 135 mm x 135 mm
Wattage
15 W
Voltage Range
220-240V AC
Lumen
1875 lm
Cut Out Dimensions
135 mm x 135 mm
Power Factor
0.95
Glare Factor
UGR <17
IP Rating
IP44
Battery Operated
No
Dimensions
38 mm x 145 mm x 145 mm
Width
145 mm
Height
38 mm
Luminous Efficiency
125 lm/W

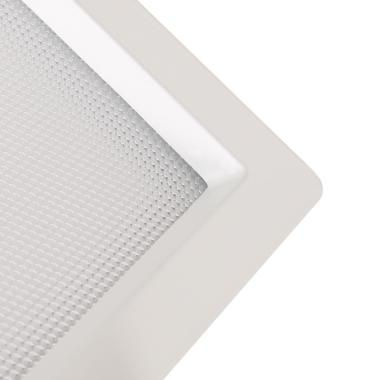

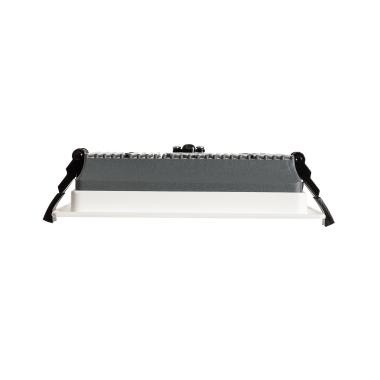

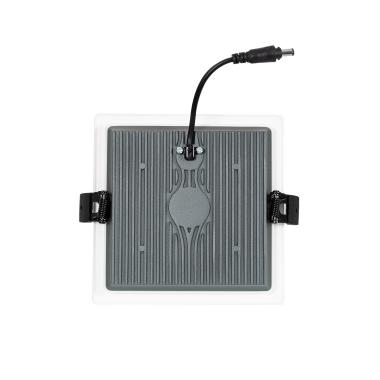

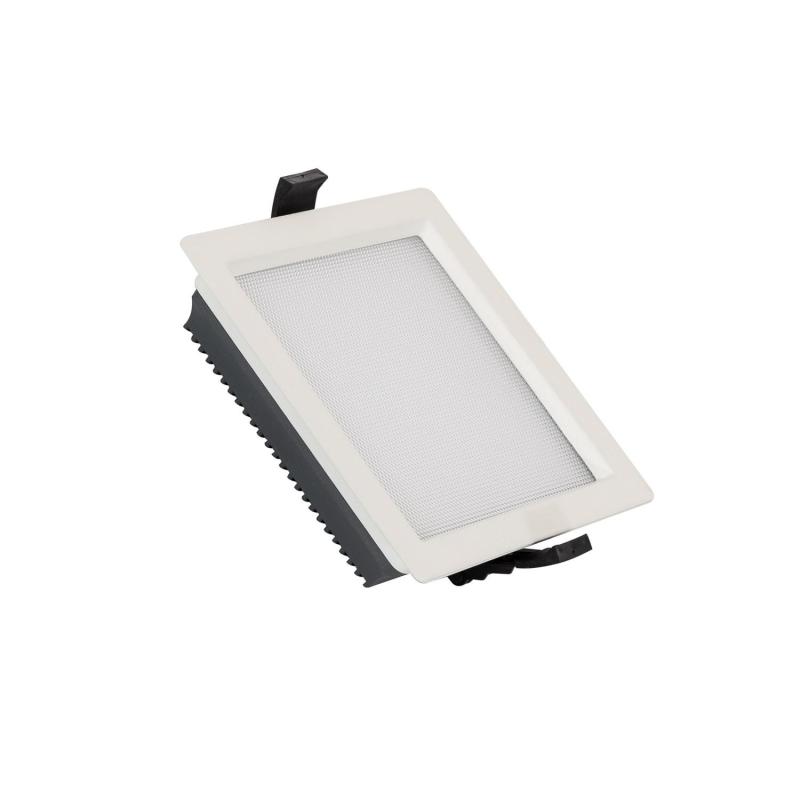

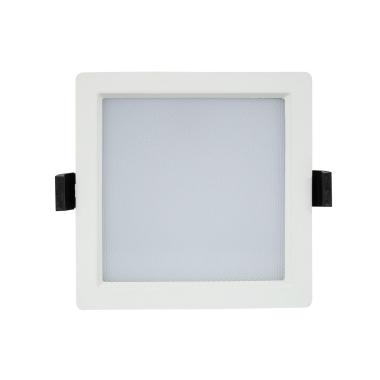

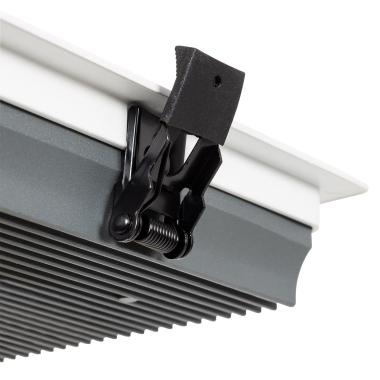

SAMSUNG New Slim Square Microprismatic 15W Cool Daylight LED Downlight Aero Cutout 135x135mm with LIFUD Driver - White
Ref. Lyco: E7113
VAT not included £14.16
£16.99
Colour Temperature Daylight 6000K
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Cut Out Dimensions135 mm x 135 mm
- Depth145 mm
- Width145 mm
- Height38 mm
Downloads
PDF Datasheet 72507_147745 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD2835
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage15 W
Materials and Finishes
- ColourBlack / White
- Fitting MaterialPC, Aluminium
- Type Of LensOpaal
LED Features
- Beam Angle110ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index85Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <17Low-glare products offer more comfortable lighting, suitable for extended use.
- LED Performance130 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen1875 lm
- Luminous Efficiency125 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.95
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- InstallationRecessed
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV, UKCA
- Guarantee5 years
- Product SeriesAero
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Driver Information
- Driver Intensity300 mA
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
The 15W SAMSUNG New Aero Slim LIFUD Square LED Downlight 130 lm/W Microprismatic (UGR17) 135x135 mm Cut-Out is an excellent option for general comercial lighting.
Features of the 15W SAMSUNG New Aero Slim LIFUD Square LED Downlight 130 lm/W Microprismatic (UGR17) 135x135 mm Cut-Out
It incorporates high-performance components such as the LIFUD driver and high-efficiency SAMSUNG SMD2835 LED chips. With an LED performance of 130 lm/W which allows to perfectly replace traditional 50W halogen lights. It has a high CRI, reproducing the colours with accuracy.
The 15W SAMSUNG New Aero Slim LIFUD Square LED Downlight 130 lm/W (UGR17) 135x135 mm Cut-Out is designed to provide a very even light distribution at a 110º beam angle. Including an opal diffuser that helps to reduce glare.
It supports multi-voltage 220-240V AC lighting and requires a 135x135 mm Cut-Out to be installed. Manufactured out of aluminium, which improves the downlights durability.
It is mainly used in places with many daily working hours, such as shops, museums, shopping centres, hotels, supermarkets, restaurants, etc., where it plays an essential role as the main lighting element.
