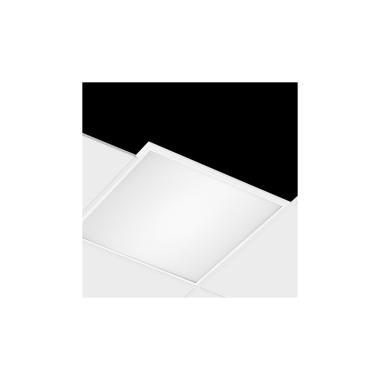

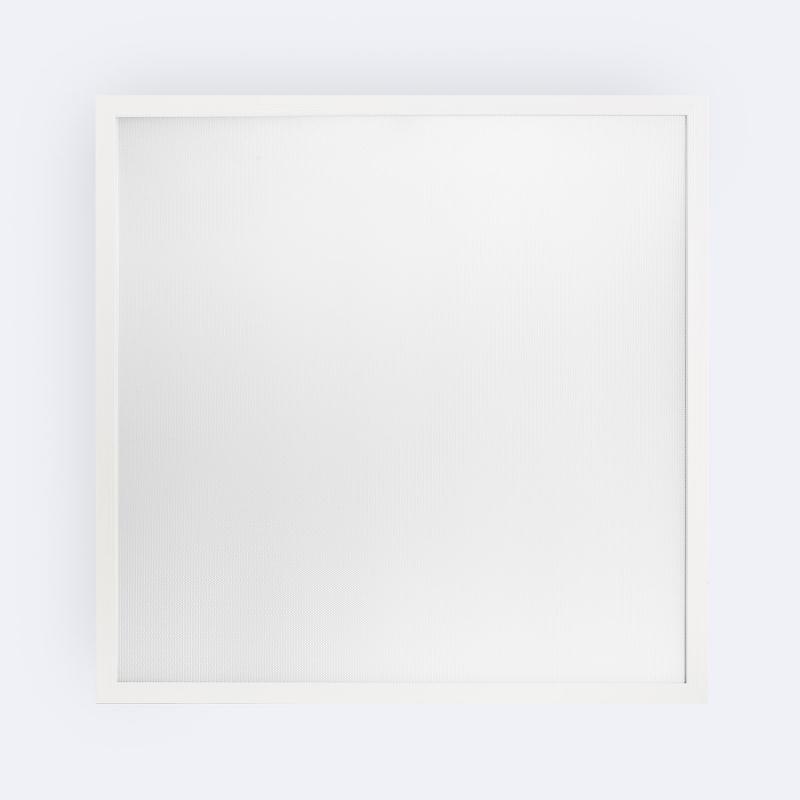

40W Dimmable Microprismatic LED Panel UGR17 - 600 x 600mm - Cool White 4000K - TRIAC dimmable - Individual
Ref. Lyco: E9041
Colour Temperature Cool White 4000K
Type Of Driver TRIAC dimmable
Box Format Individual
VAT not included £27.49
£32.99
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth24 mm
- Height595 mm
- Width595 mm
Certificates and Stamps
Technical Specifications
LED Features
- Beam Angle110ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <17Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourCool White
- Lumen4000 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.9
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD2835
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Type Of Dimming1-10 V, DALI, TRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage40 W

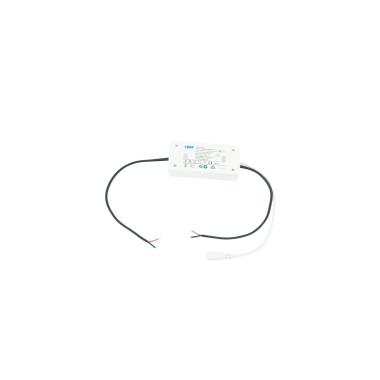

Driver Information
- Driver Intensity700 mA-1050 mA
- Driver Power30 W-40 W
- Driver Tension9 V - 40 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverTRIAC dimmable
Materials and Finishes
- ColourWhite
- Fitting MaterialPC, Aluminium
- Type Of LensOpaal
Mechanical Features
- Frame60x60 cm
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationFalse ceiling
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV
- Guarantee5 years
- Product SeriesOrigin
Product Data
- Product FormatRecessed LED Panel
- Product typeLED Panel
Key Features
- Colour: White
- Material: Aluminium
- Wattage: 40W equivalent to 72W fluorescent.
- Light Colour: Cool White (4000K).
- Average Life Expectancy: 30,000 hours.
- Guarantee: 5 years guarantee.
- Dimmable: Dimmable with LED compatible dimmer switch.
- IP Rating: IP20, Class I
- Dimensions:
Overall - H 30 x W 595 x D 30mm
Description
The 60x60cm 40W 4000lm (UGR17) Dimmable LED Panel with white frame combines a very modern design with excellent light efficiency and quality. This panel is particularly suitable for offices and work areas due to its low glare factor. It includes an adjustable driver so that you can adapt the light intensity to each of the needs of each room.
The light source of the LED panel has a luminous intensity of 4000 lumens which is equivalent to the one that would be emitted by a conventional 80W luminaire. In this way, a very important saving is achieved compared to this type of traditional low consumption luminaires. It supports multi-voltage between 85V 265V AC and an ambient working temperature range of -20ºC to 45ºC.
Applications of the 60x60cm 40W 4000lm (UGR17)Dimmable LED Panel
Suitable for lighting offices thanks to its low glare. The glare caused by lighting can have a negative influence on people, because a comfortable lighting environment is needed to help us in our tasks. A low UGR level increases the feeling of well-being of workers, which contributes to the level of productivity indirectly.
Low levels of glare are recommended in all places where people spend long periods of time exposed to artificial light, and are very important in offices, educational centres, work areas, etc.
Specially designed for installation in technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.
Enjoy the best LED lighting with the most advanced and efficient products on the market, such as the 60x60cm and 40W LED panel with a white frame offered at our online shop, Ledkia.
* They are installed in a removable false ceiling. Other installation options are available in the accessories section.
