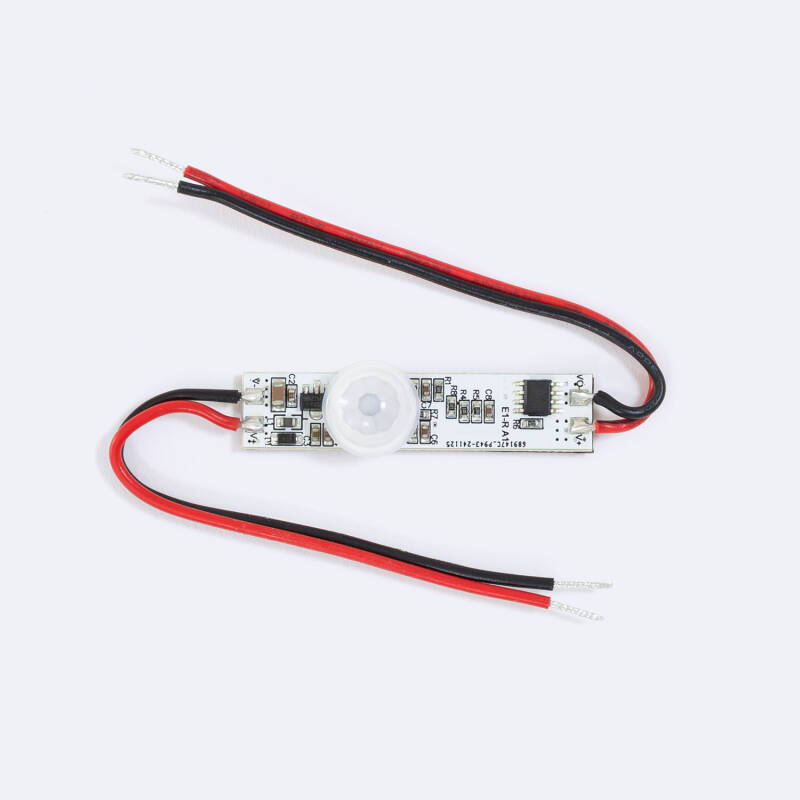

Image of Mini 120º PIR Motion Detector 12/24V DC Monochrome LED Strips
Image of Mini 120º PIR Motion Detector 12/24V DC Monochrome LED Strips
Image of Mini 120º PIR Motion Detector 12/24V DC Monochrome LED Strips

Mini 120º PIR Motion Detector 12/24V DC Monochrome LED Strips - White

Ref. Lyco: E1609

Colour White

VAT not included £7.91

£9.49

IN STOCK - Delivered in 1 to 2 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

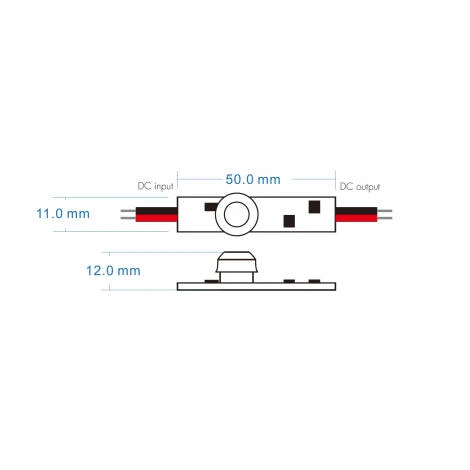

Dimensions

  • Width11 mm
  • Height12 mm
  • Depth50 mm

Downloads

  • pdf file

    Instruction Manual

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC

  • Electrical Features

    • Electrical Insulation ClassII
    • Max Wattage72 W
    • Voltage level required for the product to function correctly.
      Voltage Range12V DC, 24V DC

  • Mechanical Features

    • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
      Detection Range120 °
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • SensorPIR
    • Sensor TypePIR

  • Product Data

    • Product FormatPIR Light Controller
    • Product typeSensors

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, FCC
    • Guarantee3 years
Summer lights

Key Features

  • Mini 120º PIR motion detector for LED strip.
  • Ideal solution to control 12/24V DC monochrome LED strips, allows you to turn on the LED strip without having to touch anything.
  • After 30 seconds if it does not detect motion, it switches off.
  • Can be installed in the same profile as the LED strip thanks to its small size.
  • Maximum Power: 36 W (12V) // 72W (24V)
  • Colour: White
  • Material: Plastic
  • Guarantee: 3 years guarantee.
  • IP Rating: IP20, Class II
  • Detection: PIR Movement Sensor has up to 3 meters and 120° detection range. No manual override.
  • Dimensions:
    Overall - H 90 x W 85 x D 10mm

Description

This Mini 120º PIR Motion Detector for LED Strip is the ideal solution to control 12/24V DC monochrome LED strips as it allows the user to turn on the LED strip without having to touch anything. After 30 seconds if it does not detect presence, it switches off.

Characteristics of the Mini 120º PIR Motion Detector for LED Strip

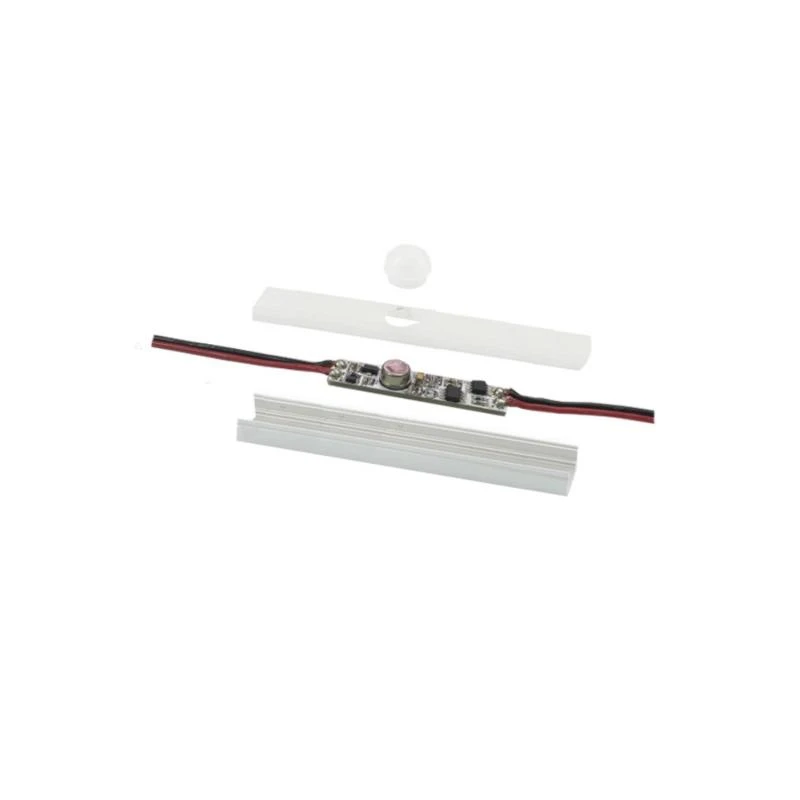

The Mini 120º PIR Motion Detector can be installed in the same profile as the LED strip thanks to its small size.
