Dimmer Switch LED TRIAC compatible with RF Remote
Ref. Lyco: E1236
Colour White
VAT not included £23.33
£28.00
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

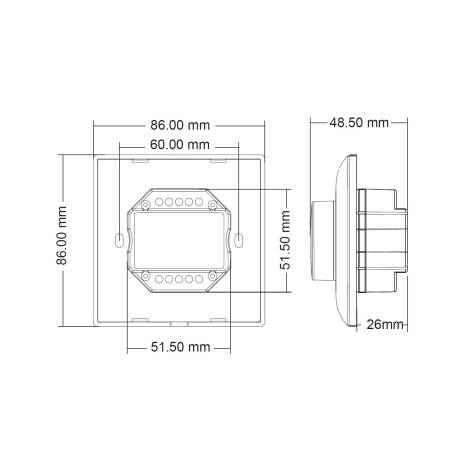

Dimensions
- Depth49 mm
- Height86 mm
- Width86 mm
Downloads
PDF Datasheet 71038_143662 EN
IM_143662
Certificates and Stamps
Technical Specifications
Electrical Features
- Max Wattage200 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Number of Gangs1 Gang
Product Data
- Product FormatDimmer Switch
- Product typeSwitch mechanisms
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Key Features
- The Triac RF LED Dimmer Switch with Remote uses wireless technology in the 2.4 GHz band, specially developed for the control of Triac and 1-10V RF dimmers without the need to install wiring.
- This dimmer switch can control several dimmers as long as they use the same RF technology
- Output power for LED loads or Triac LED Drivers from 100-200W (110-220V)
- Output power for Incandescent and Halogen loads from 200-400W (110-220V)
Description
The Triac RF LED Dimmer Switch uses wireless technology in the 2.4 GHz band, specially developed for the control of Triac and 1-10V RF dimmers without the need to install wiring.
This dimmer switch can control several dimmers as long as they use the same RF technology.
Characteristics of the Triac RF LED Dimmer Switch

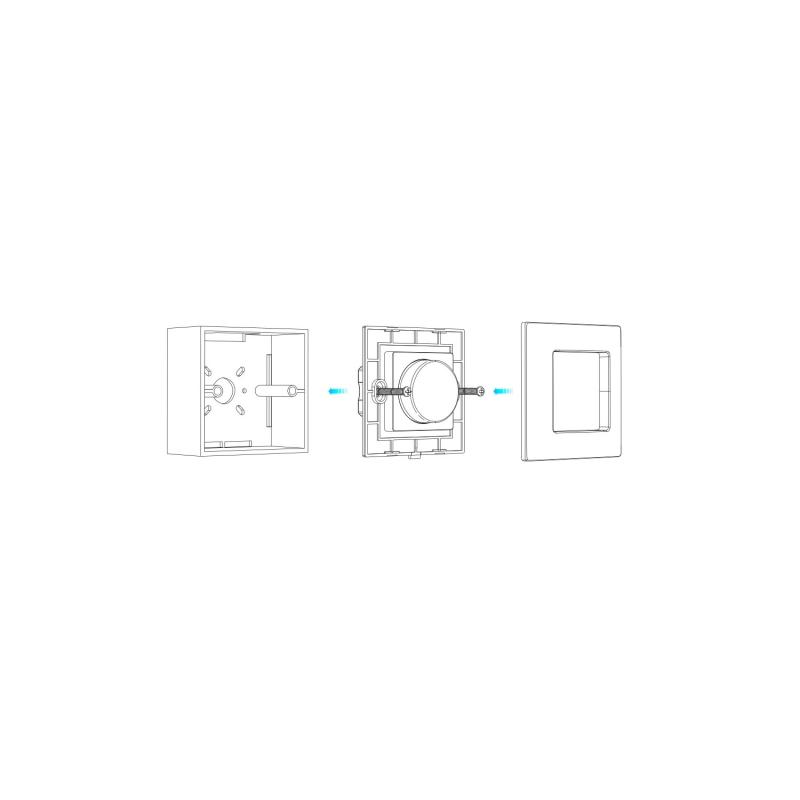

The Triac RF LED Dimmer Switch and can be mounted anywhere, screwed to the wall or in the same universal box.

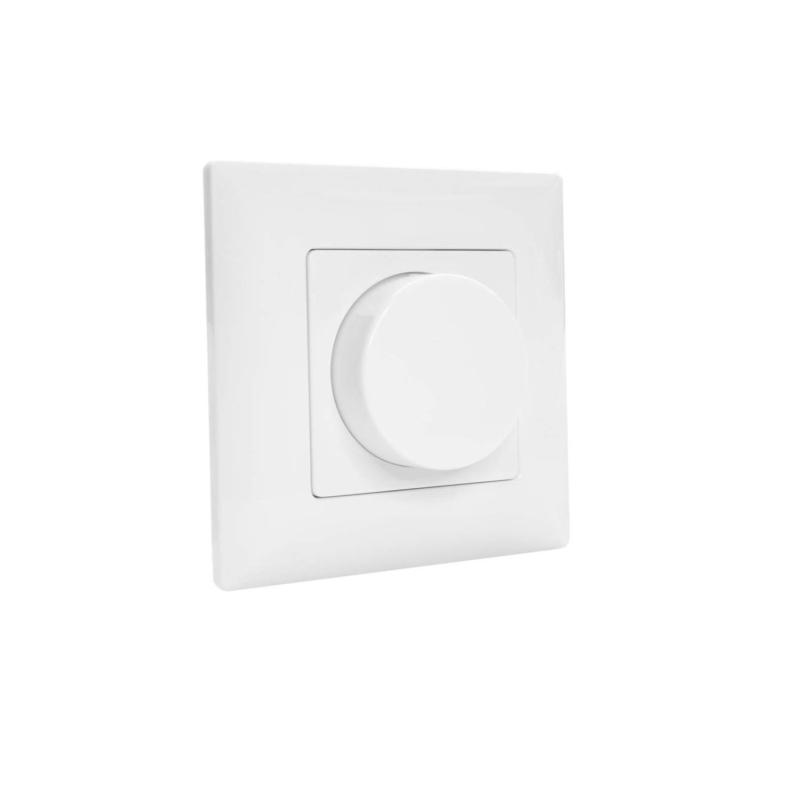

By means of the round module you can turn the light on and off by pressing and turning it, you can also adjust the brightness.
