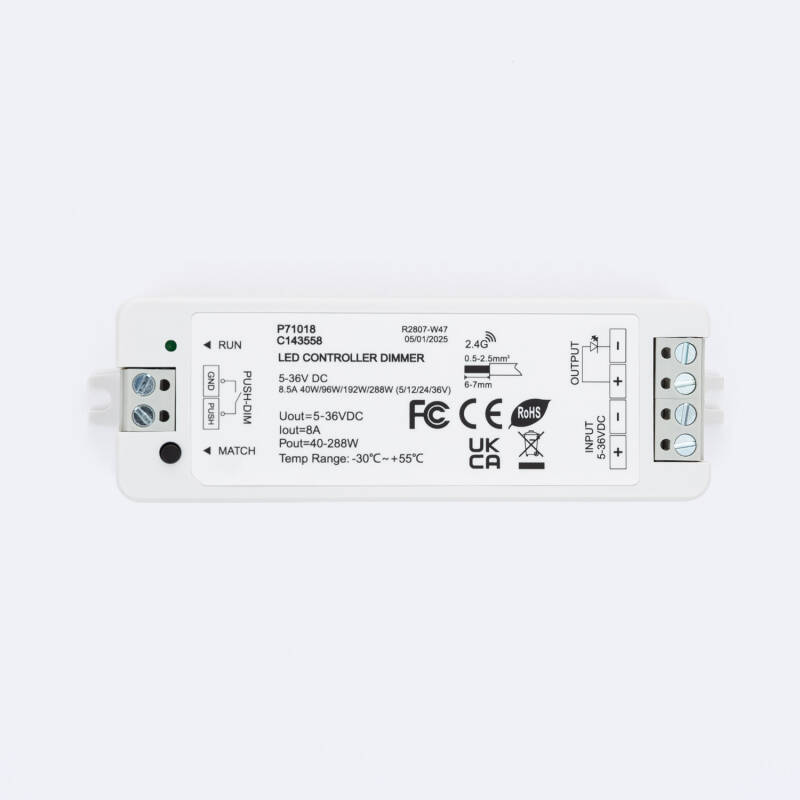

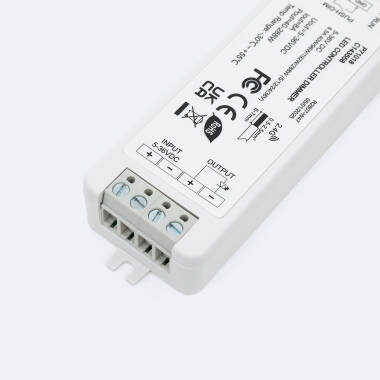

5/12/24/36V DC Monochrome LED Strip Dimmer Controller compatible with RF Push Button Controller - White
Ref. Lyco: E1530
Colour White
VAT not included £12.91
£15.49
IN STOCK - Delivered in 1 to 2 working days
(1)4 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

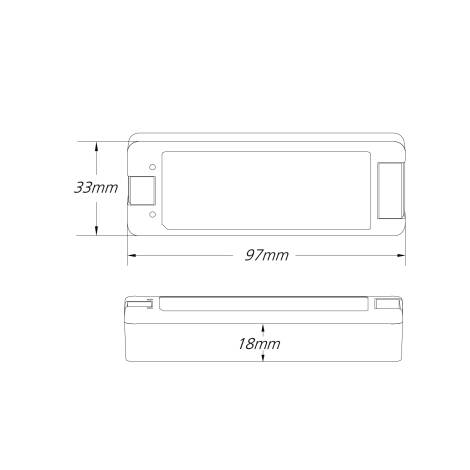

Dimensions
- Height18 mm
- Width33 mm
- Depth97 mm
Downloads
IM_143558
Certificates and Stamps
Technical Specifications
Materials and Finishes
- ColourWhite
- Fitting MaterialPC, ABS
Electrical Features
- DimmableYes
- Max Wattage288 W
- Maximum Output Current8 A
- Type Of DimmingRemote Control, Push button
- Voltage Range12V DC, 24V DC, 36V DC, 5V DCVoltage level required for the product to function correctly.
Product Data
- Product FormatDimmer Switch
- Product typeController
Driver Information
- ConnectivityRF
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Key Features
- 5/12/24/36V DC monochrome LED strip dimmer controller compatible with RF and push button controller.
- Developed for the control of dimmable LED CCT strips.
- You can manually adjust the brightness of the strips to create different atmospheres for different occasions and needs.
- For indoor use, a distance of no more than 15 metre between receivers is recommended
- Colour: White
- Material: Plastic
- Guarantee: 3 years guarantee.
- IP Rating: IP20, Class I
- Dimensions:
Overall - H 18 x W 97 x D 33mm
Description
The 5/12/24/36V DC Monochrome LED Strip Dimmer Controller compatible with RF and Push Button Controller uses wireless technology in the 2.4 GHz band. It is specially developed for the control of dimmable LED CCT strips.
Thanks to this controller you can manually adjust the brightness of the strips to create different atmospheres for different occasions and needs.
Characteristics of the 5/12/24/36V DC Monochrome LED Strip Dimmer Controller compatible with RF and Push Button Controller
Monochrome LED Strip Dimmer Controller compatible with RF and Push Button Controller can be mounted anywhere thanks to its extra-flat format behind the push button or inside the junction box, as it is only 18 mm thick.
Control can be carried out with the RF control unit for dimmers. One receiver can transmit the remote control signals to another receiver within a radius of 30m so that multiple receivers within a distance of 30m can work synchronously.
Don't miss out on the opportunity, and take advantage of the best quality lighting, accompanied by elegance and style.
