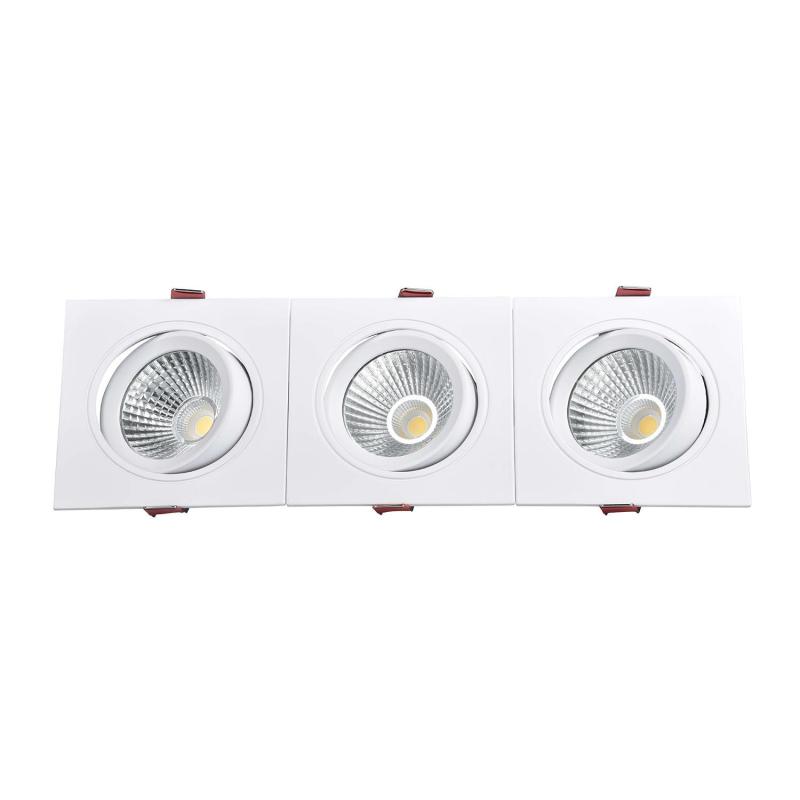

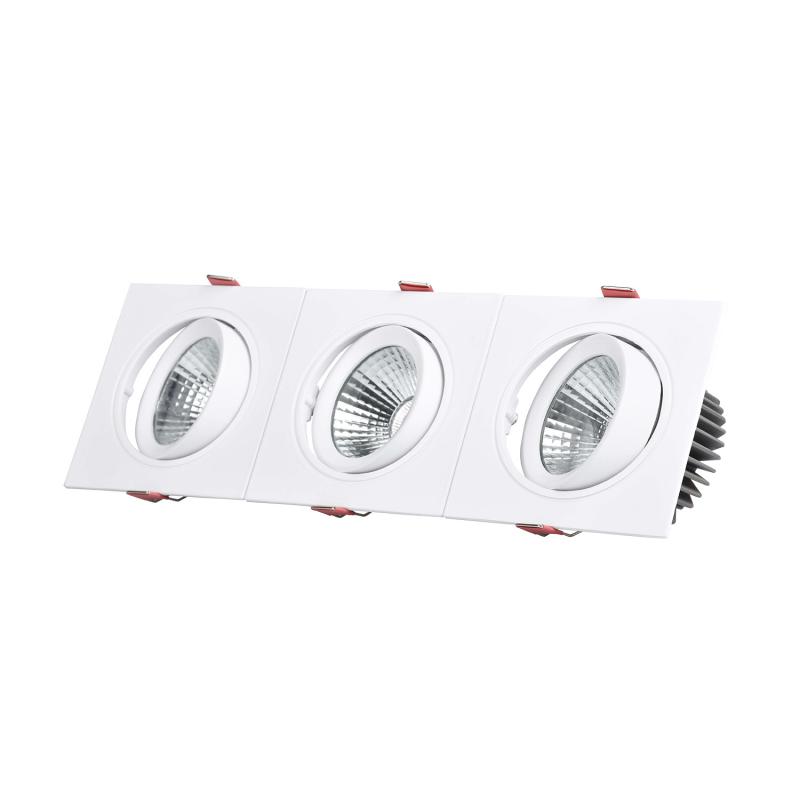

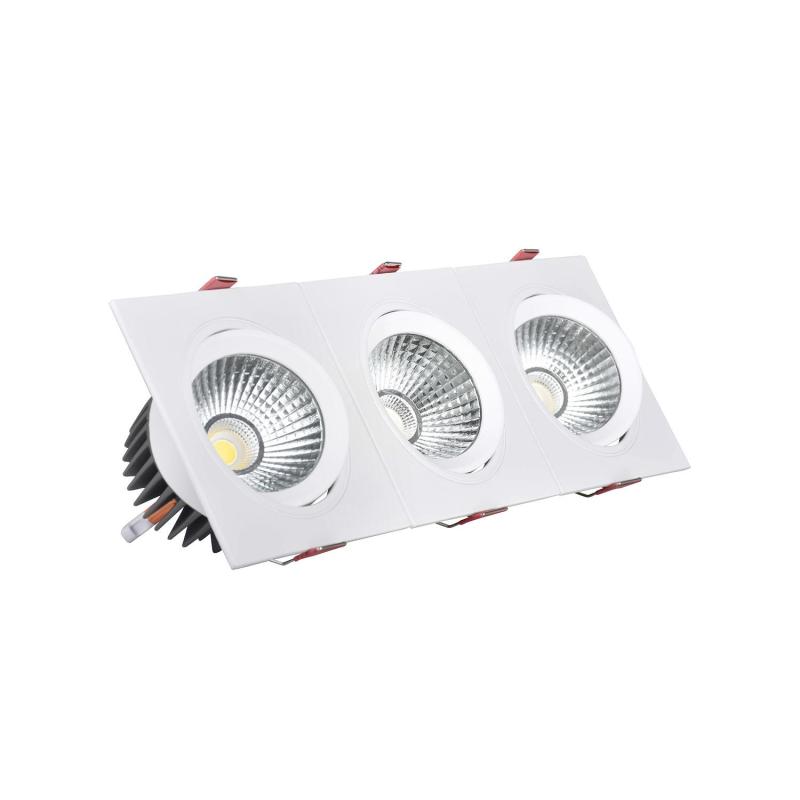

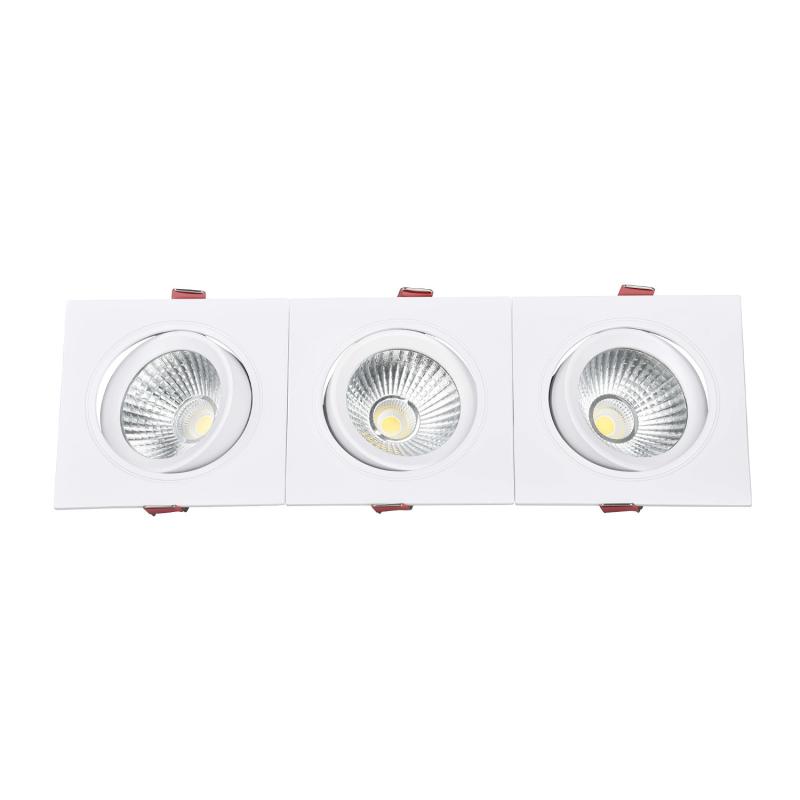

Rectangular 30W Cool White Triple COB LED Downlight New Madison Cutout 315x95mm - White
Ref. Lyco: E26336
Colour Temperature Cool White 4000K
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width109 mm
- Cut Out Dimensions315 mm x 95 mm
- Height327 mm
- Depth65 mm
Downloads
PDF Datasheet 68690_138033 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSANAN COB
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage30 W
LED Features
- Beam Angle24ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourCool White
- Lumen2700 lm
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeRectangular
Product Data
- Product FormatAdjustable Downlight
- Product typeLED Downlight
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
- IncludesDriver
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
Key Features
- Colour: White
- Material: Aluminium
- Wattage: 30W
- Light Colour: Cool White (4000K).
- Average Life Expectancy: 50,000 Hours hours.
- Guarantee: 5 years guarantee.
- IP Rating: IP20, Class II
- Fire Rating: No.
- Dimensions:
Overall - H 327 x W 109mm
Cut Out - Dia 315x95mm
Description
The 30W Rectangular New Madison Triple LED Spotlight is a very versatile product that will allow the user to direct its light beam in 360° to specific points according to the needs of the moment, providing significant savings in power consumption.
Characteristics of the 30W Rectangular New Madison Triple LED Spotlight
It incorporates a LED optic with a total power of 30W. The high quality light emitted is centred at an angle of 24º and has a colour rendering index of 80.
By choosing LED lighting you not only choose to save on your lighting bill, but also opt for technology that is more ecological, of higher quality and lasts ten times longer than traditional lighting systems.
All the features of this LED lighting product make it perform excellently. Ideal for use in interior spaces where a large amount of light is not required. It is mainly used in passage areas such as hallways, corridors or staircases.
*Requires assembly
