Wattage 7 W
Voltage Range 110V AC, 220-240V AC
IP Rating IP20
Battery Operated Yes
Wattage
7 W
Voltage Range
110V AC, 220-240V AC
IP Rating
IP20
Battery Operated
Yes
Dimensions
331 mm x 91 mm x 31 mm
Width
91 mm
Height
331 mm
Battery Capacity
1200 mAh
Fitting Material
PC, Aluminium
Brand
Lyco

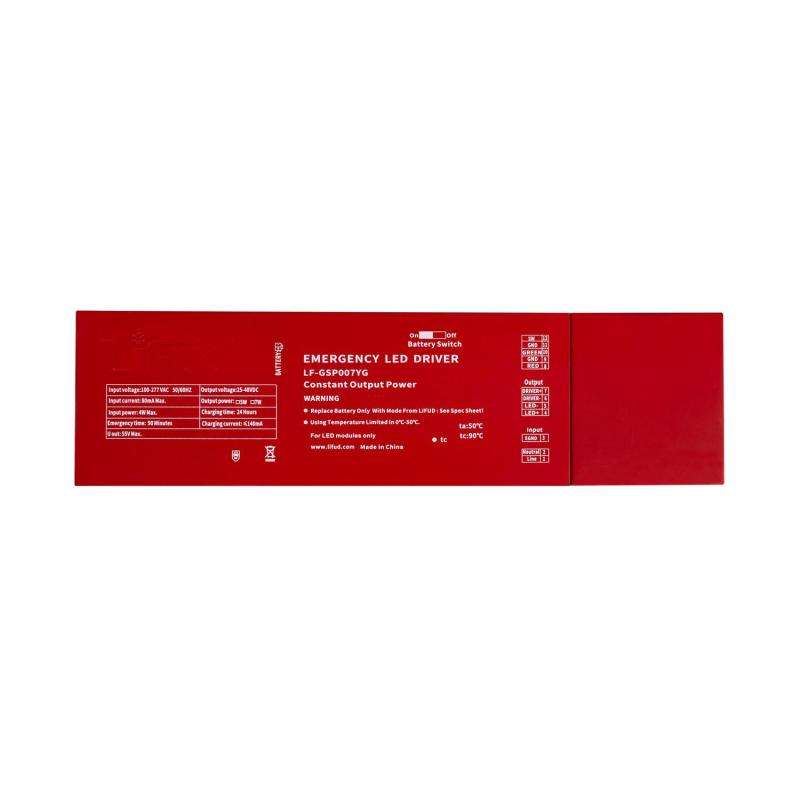

7W Emergency LIFUD Driver 100-277V Output 25-48V 280mA LF-GSP007YG
Ref. Lyco: E25123
VAT not included £72.49
£86.99
Wattage 7 W
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth31 mm
- Height331 mm
- Width91 mm
Downloads
PDF Datasheet 65770_131375 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Voltage Range110V AC, 220-240V ACVoltage level required for the product to function correctly.
- Wattage7 W
Product Information
- BrandLyco
- CertificatesCE, RoHS, FCC, UL
- Guarantee5 years
- Product SeriesGSPXXXYG
Product Data
- Product FormatLED Driver
- Product typeDriver
Materials and Finishes
- ColourRed
- Fitting MaterialPC, Aluminium
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Battery Information
- Battery Capacity1200 mAh
- Battery Voltage14.4 V
- Number Of Batteries1
- Type Of BatteryNi-Cd
Driver Information
- Driver Intensity280 mA
- Driver Power7 W
- Driver Tension25 V - 48 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
Driver from the prestigious company LIFUD, specially designed for emergency situations where it is necessary, in the event of a power failure, to satisfy the lighting requirements in normal and emergency situations. To find out if a driver is going to work with our lamp, PCB or panel, we should consult the voltage and output current of the driver.
Features of the LIFUD 100-277V No Flicker Emergency Driver LIFUD 100-277V No Flicker Output 25-48V 280mA 7W LF-GSP007YG
This LIFUD Emergency Driver LIFUD 100-277V No Flicker Output 25-48V has multi-voltage input. This means that it is able to withstand line voltage surges and dips for a short period of time without damage. In addition, its output is 25V-48V DC 2A, and the emergency output power is constant.
When there is a power failure, this emergency driver switches to emergency mode and provides at least 1.5 hours of illumination offering a maximum of 7W.
This product consists of an internal high temperature resistant nickel-cadmium battery, a circuit to charge the battery and a circuit to switch to Emergency Mode which has been equipped with output short circuit protection, open circuit protection, low voltage protection and other functions.
The emergency power can be selected as 5W or 7W by the DIP switch.
This LIFUD Driver features Flicker-Free technology, preventing light flicker and thereby reducing eye fatigue.
Say goodbye to eye fatigue, headaches and blurred vision caused by flickering light.
Discover our wide range of Drivers in our online shop.
