3W Maintained/Non-Maintained with Autotest LED Emergency Bulkhead with Ceiling Kit - 3 W
Ref. Lyco: E1684
Wattage 3 W
VAT not included £19.99
£23.99
Delivered in 2 to 4 weeks
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width106 mm
- Depth265 mm
- Height40 mm
- Cut Out DimensionsØ246 mm
Certificates and Stamps
Technical Specifications
Emergency Lighting Information
- Emergency Power3 W
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD5730
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage3 W
Mechanical Features
- InstallationRecessed, Surface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Battery Information
- Autonomy3 hBattery life of the luminaire at full charge, without wear, and at medium light level.
- Battery Capacity600 mAh
- Battery Voltage3.6 V
- Number Of Batteries1
- Type Of BatteryNi-Cd
LED Features
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourDaylight
- Lumen200 lm
- Number of LEDs6
Product Data
- Product FormatBulkhead
- Product typeEmergency Lights
Materials and Finishes
- ColourWhite
- Fitting MaterialABS
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Key Features
- The 200 lm LED Emergency Bulkhead with Autotest is an essential safety light designed to provide emergency backup lighting in the event of a power failure. With a power rating of 3W and up to 3 hours of autonomy, it ensures safe and efficient evacuation in emergency situations. Select between maintained and non-maintained. Suitable for offices, hospitals, warehouses, retail and residential buildings
- Colour: White
- Material: Plastic
- Wattage: 3W.
- Light Colour: Cool Daylight (6000K).
- Average Life Expectancy: 40,000 hours.
- Guarantee: 3 years guarantee.
- Dimmable: Non-Dimmable.
- IP Rating: IP20, Class II
- Maintained: Switchable maintained-non maintained emergency.
- Emergency Light: Provides minimum 3 hours of lighting should the power fail.
- Dimensions:
Overall - H 40 x W 265 x D 106mm
Description
The 3W LED emergency light with ceiling kit offers path lighting when there is a power cut.
LED emergency lights are a key element for the security of any building. With the lumens offered by this luminaire there is more than enough light provided for a safe evacuation, even if there is a power outage and natural light is not available.
Characteristics of the 3W Emergency LED Light + Ceiling Kit Permanent / Non-Permanent with Autotest

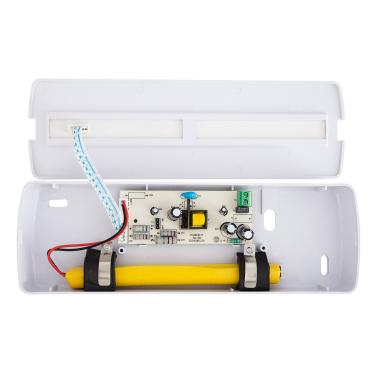

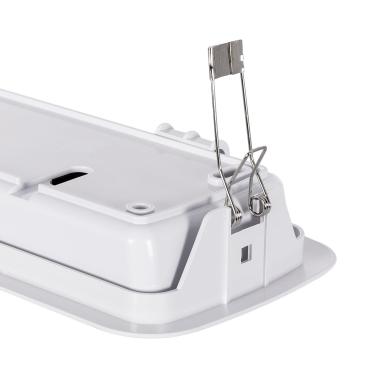

It features 6 integrated SMD5730 LEDs with great efficiency and durability. The 3W LED emergency light includes a ceiling kit for recessed installation with great ease. It includes a 3.6V 0.6Ah NiCd battery that provides up to 3 hours of autonomy. It has a power indicator (green) and a charge indicator (red).
The LED emergency light allows both permanent and non-permanent lighting. This emergency light is pre-assembled as a non-permanent light. By modifying the position of the PCB connector you can select the operation mode of this emergency light.
The AutoTest emergency luminaires not only meet the basic requirements of standard emergency lighting products, but also include the AutoTest automatic self-test system. AutoTest products only require visual inspection as the integral luminaire status LED informs the operational status of the luminaire and the type of fault, should a failure have occurred.
So whatever happens, don't be left in the dark with the 3W LED emergency light with ceiling kit available at Ledkia, our online LED shop.
The Self-Test function is preset at the factory without any permitted settings and is used for the following tests:
- Real-time online monitoring of battery and lamps: identifies battery charging, disconnection and lamp failures.
- Self-test and 60-minute discharge after installation and 24-hour AC power supply.
- Self-test and 30 second discharge once every 30 days after AC power has been supplied for a minimum of 24 hours.
- Self-test and a 60-minute discharge once every 180 days, after AC power has been supplied for a minimum of 24 hours.
- Self-test and a 60-minute discharge once every 365 days, after AC power has been supplied for a minimum of 24 hours.
Whatever happens, don't be left in the dark with the 3W LED emergency light with ceiling kit available at Ledkia, our online lighting shop.
* Non permanent light with permanent light option.
