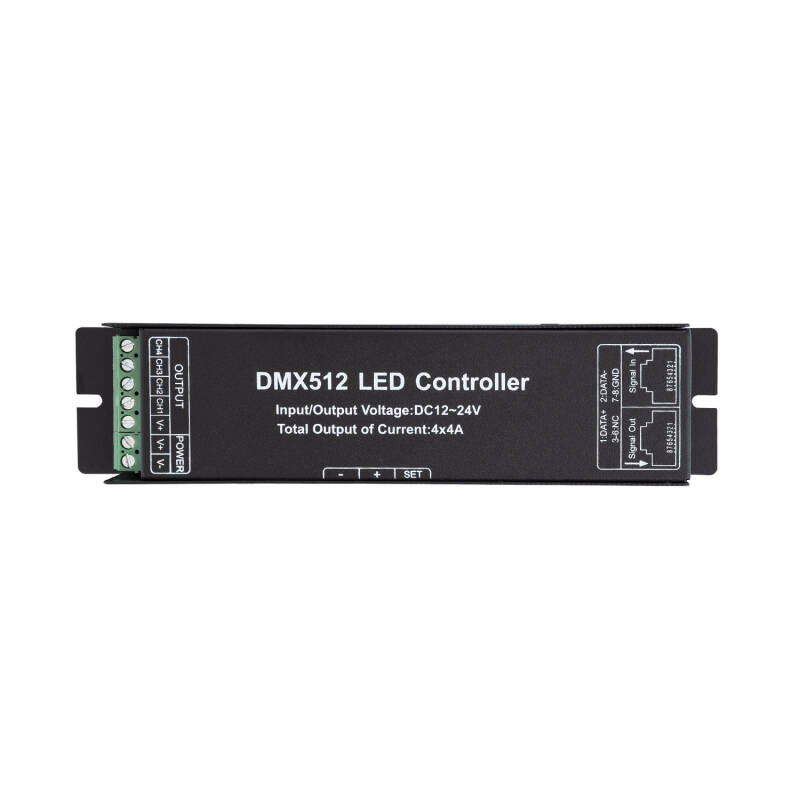

4 Channel DMX512 LED Controller

Ref. Lyco: E1200

VAT not included £16.66

£19.99

IN STOCK - Delivered in 1 to 2 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Depth177 mm
  • Width33 mm
  • Height42 mm

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Max Wattage384 W
    • Voltage level required for the product to function correctly.
      Voltage Range12V DC, 24V DC

  • Product Data

    • Product FormatDimmer Switch
    • Product typeController

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialMetal

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
Summer lights

Description

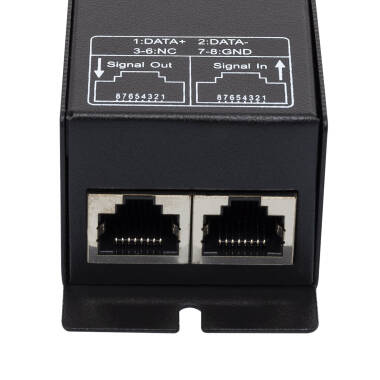

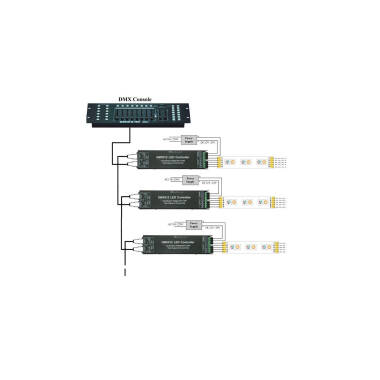

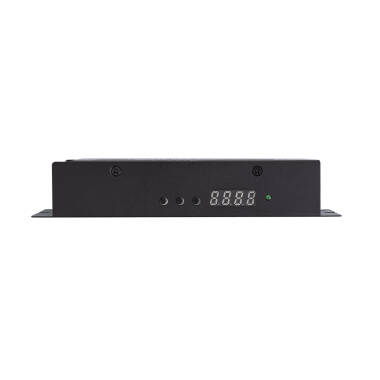

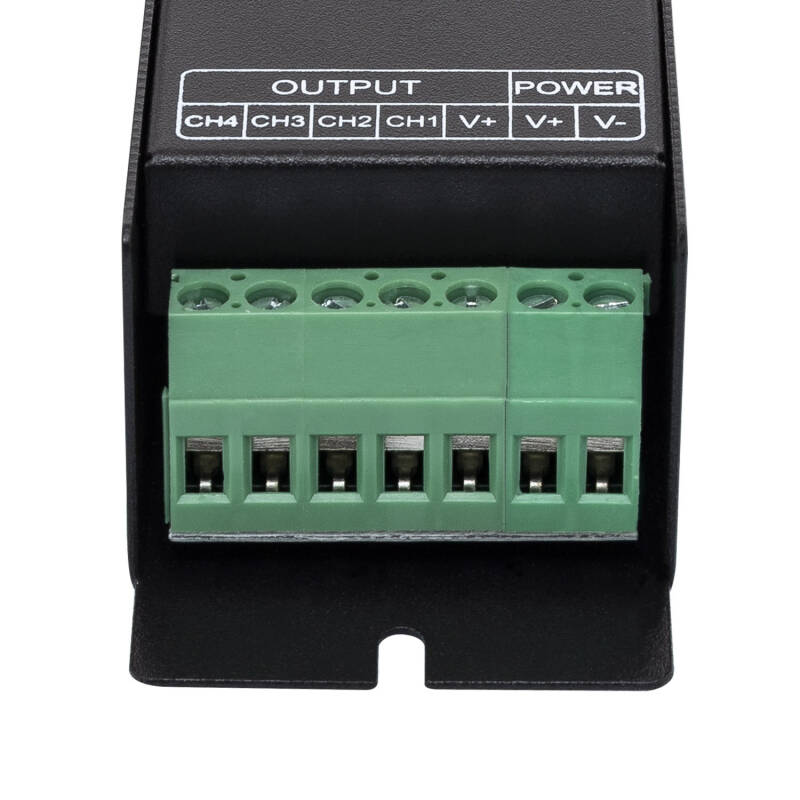

This DMX512 LED Controller retransmits signals under standard DMX through 4 fixed RGBW channels (RGB+ White), allowing you to control the behaviour of your LED lights at all times. It’s easy to use, just connect a console that’s compatible with standard DMX to the corresonding RJ-45 input, then assign a channel using the available buttons that are on the side of the controller, then connect the Red, Green, Blue, White and V+ attachments to the output tabs and then connect the power supply to the corresponding power tabs. This controller can either be used on its own or in combination with other DMX controllers. Output intensity per channel = 4A.

_x000D_

*Only compatible with 12V and 24V LED Strips.
